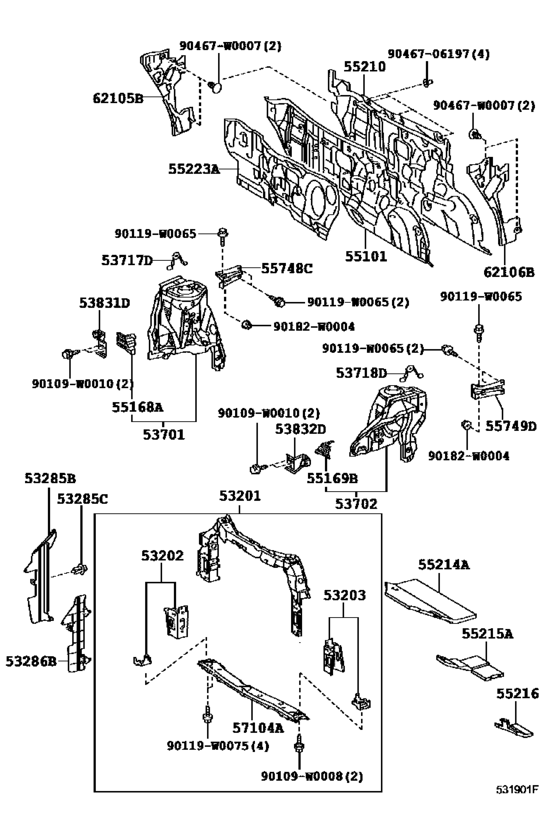

Front Fender Apron & Dash Panel ([02.2005 - 02.2012] (0502-1202)LHD) Diagram Toyota AYGO
- Year
- 2005 - 2014
- Sales region
- Europe
- Frame
- KGB10
- grade
- LEDIN
- ENGINE
- 1KRFE
- TRANSMISSION
- MTM
- From
- 02.2005
- To
- 06.2014
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53201
|
53201
53201-0H902
Support Sub-Assy, Radiator
[02.2005 - 12.2008] KGB10,WNB10 |
53201-0H902 |
— | ||
|
53202
|
53202
53202-0H010
Support Sub-Assy, Radiator, Rh
[02.2005 - 12.2008] KGB10,WNB10 |
53202-0H010 |
— | ||
|
53203
|
53203
53203-0H010
Support Sub-Assy, Radiator, Lh
[02.2005 - 12.2008] KGB10,WNB10 |
53203-0H010 |
— | ||
|
53285B
|
53285B
53285-0H010
Seal, Radiator Side Air, No.1
[02.2005 - 12.2008] KGB10 |
53285-0H010 |
— | ||
|
53285B
|
53285B
53285-0H040
Seal, Radiator Side Air, No.1
[02.2005 - 12.2008] KGB10 FRONT AIR CONDITIONER-WITH |
53285-0H040 |
— | ||
|
53285B
|
53285B
53285-0H070
Seal, Radiator Side Air, No.1
[12.2008 - 02.2012] KGB10 |
53285-0H070 |
— | ||
|
53285B
|
53285B
53285-0H100
Seal, Radiator Side Air, No.1
[12.2008 - 02.2012] KGB10 FRONT AIR CONDITIONER-WITH |
53285-0H100 |
— | ||
|
53285B
|
53285B
53285-0H130
Seal, Radiator Side Air, No.1
[02.2012 -] KGB10 |
53285-0H130 |
— | ||
|
53285B
|
53285B
53285-0H160
Seal, Radiator Side Air, No.1
[02.2012 -] KGB10 FRONT AIR CONDITIONER-MANUAL |
53285-0H160 |
— | ||
|
53285C
|
53285C
90467-08217 Clip(For Radiator Side Air Seal)[02.2005 - 12.2008] KGB10,WNB10 |
90467-08217 |
from US $0.92 |
||
|
53286B
|
53286B
53286-0H010
Seal, Radiator Side Air, No.2
[02.2005 - 12.2008] KGB10 FRONT AIR CONDITIONER-WITH |
53286-0H010 |
— | ||
|
53286B
|
53286B
53286-0H040
Seal, Radiator Side Air, No.2
[12.2008 - 02.2012] KGB10 FRONT AIR CONDITIONER-WITH |
53286-0H040 |
— | ||
|
53286B
|
53286B
53286-0H070
Seal, Radiator Side Air, No.2
[02.2012 -] KGB10 FRONT AIR CONDITIONER-MANUAL |
53286-0H070 |
— | ||
|
53701
|
53701
53701-0H010
Apron Sub-Assy, Front Fender, Rh
[02.2005 - 12.2008] KGB10,WNB10 |
53701-0H010 |
— | ||
|
53702
|
53702
53702-0H010
Apron Sub-Assy, Front Fender, Lh
[02.2005 - 12.2008] KGB10,WNB10 |
53702-0H010 |
— | ||
|
53717D
|
53717D
53717-0H010
Gusset, Fender Apron, Rh
[02.2005 - 02.2007] KGB10,WNB10 |
53717-0H010 |
— | ||
|
53718D
|
53718D
53717-0H010
Gusset, Fender Apron, Rh
[02.2005 - 02.2007] KGB10,WNB10 |
53717-0H010 |
— | ||
|
53831D
|
53831D
53831-0H010
Panel, Front Fender Side, Rh
[02.2005 - 12.2008] KGB10,WNB10 |
53831-0H010 |
— | ||
|
53832D
|
53832D
53832-0H010
Panel, Front Fender Side, Lh
[02.2005 - 12.2008] KGB10,WNB10 |
53832-0H010 |
— | ||
|
55101
|
55101
55101-0H010
Panel Sub-Assy, Dash
[02.2005 - 12.2006] KGB10..LHD..5F FRONT AIR CONDITIONER-WITH |
55101-0H010 |
— | ||
| replacement | |||||
|
55101
|
55101
55101-0H071
Panel Sub-Assy, Dash
[02.2005 - 12.2006] KGB10..LHD..5F FRONT AIR CONDITIONER-WITH |
55101-0H071 |
— | ||
|
55101
|
55101
55101-0H020
Panel Sub-Assy, Dash
[02.2005 - 12.2006] KGB10..LHD..5F |
55101-0H020 |
— | ||
| replacement | |||||
|
55101
|
55101
55101-0H081
Panel Sub-Assy, Dash
[02.2005 - 12.2006] KGB10..LHD..5F |
55101-0H081 |
— | ||
|
55101
|
55101
55101-0H030
Panel Sub-Assy, Dash
[03.2007 - 12.2008] KGB10..LHD..5F WITH(VSC)&FRONT AIR CONDITIONER-WITH |
55101-0H030 |
— | ||
| replacement | |||||
|
55101
|
55101
55101-0H031
Panel Sub-Assy, Dash
[03.2007 - 12.2008] KGB10..LHD..5F WITH(VSC)&FRONT AIR CONDITIONER-WITH |
55101-0H031 |
— | ||
|
55101
|
55101
55101-0H031
Panel Sub-Assy, Dash
[12.2012 - 07.2013] KGB10..LHD..5F WITH(VSC)&FRONT AIR CONDITIONER-MANUAL |
55101-0H031 |
— | ||
|
55101
|
55101
55101-0H040
Panel Sub-Assy, Dash
[03.2007 - 12.2008] KGB10..LHD..5F WITH(VSC) |
55101-0H040 |
— | ||
| replacement | |||||
|
55101
|
55101
55101-0H041
Panel Sub-Assy, Dash
[03.2007 - 12.2008] KGB10..LHD..5F WITH(VSC) |
55101-0H041 |
— | ||
|
55101
|
55101
55101-0H041
Panel Sub-Assy, Dash
[12.2012 - 07.2013] KGB10..LHD..5F WITH(VSC) |
55101-0H041 |
— | ||
|
55101
|
55101
55101-0H070
Panel Sub-Assy, Dash
[12.2006 - 12.2008] KGB10..LHD..5F FRONT AIR CONDITIONER-WITH |
55101-0H070 |
— | ||
| replacement | |||||
|
55101
|
55101
55101-0H071
Panel Sub-Assy, Dash
[12.2006 - 12.2008] KGB10..LHD..5F FRONT AIR CONDITIONER-WITH |
55101-0H071 |
— | ||
|
55101
|
55101
55101-0H071
Panel Sub-Assy, Dash
[12.2012 - 07.2013] KGB10..LHD..5F FRONT AIR CONDITIONER-MANUAL |
55101-0H071 |
— | ||
|
55101
|
55101
55101-0H080
Panel Sub-Assy, Dash
[12.2006 - 12.2008] KGB10..LHD..5F |
55101-0H080 |
— | ||
| replacement | |||||
|
55101
|
55101
55101-0H081
Panel Sub-Assy, Dash
[12.2006 - 12.2008] KGB10..LHD..5F |
55101-0H081 |
— | ||
|
55101
|
55101
55101-0H081
Panel Sub-Assy, Dash
[12.2012 - 07.2013] KGB10..LHD..5F |
55101-0H081 |
— | ||
|
55168A
|
55168A
55168-0H010
Bracket, Front Fender Mounting, Rh
[02.2005 - 12.2008] KGB10,WNB10 |
55168-0H010 |
— | ||
|
55169B
|
55169B
55169-0H010
Bracket, Front Fender Mounting, Lh
[02.2005 - 12.2008] KGB10,WNB10 |
55169-0H010 |
— | ||
|
55210
|
55210
55210-0H010
Insulator Assy, Dash Panel
[02.2005 - 12.2008] KGB10,WNB10..LHD |
55210-0H010 |
— | ||
|
55214A
|
55214A
55214-0H010
Pad, Dash Panel Insulator, No.2
[02.2005 - 12.2008] KGB10,WNB10..LHD |
55214-0H010 |
— | ||
|
55215A
|
55215A
55215-0H010
Pad, Dash Panel Insulator, No.3
[02.2005 - 12.2008] KGB10,WNB10..LHD |
55215-0H010 |
— | ||
|
55216
|
55216
55216-0H010
Pad, Dash Panel Insulator, No.4
[02.2005 - 12.2008] KGB10,WNB10..LHD |
55216-0H010 |
— | ||
|
55223A
|
55223A
55223-0H010
Insulator, Dash Panel, Outer
[02.2005 - 02.2007] KGB10,WNB10..LHD..LV1; KGB10..LHD..LEDIN PACKAGE OPTION 1-NV PACKAGE |
55223-0H010 |
— | ||
| replacement | |||||
|
55223A
|
55223A
55223-0H011
Insulator, Dash Panel, Outer
[02.2005 - 02.2007] KGB10,WNB10..LHD..LV1; KGB10..LHD..LEDIN PACKAGE OPTION 1-NV PACKAGE |
55223-0H011 |
— | ||
|
55223A
|
55223A
55223-0H011
Insulator, Dash Panel, Outer
[03.2007 - 12.2008] KGB10,WNB10..LHD..LV1; KGB10..LHD..LEDIN PACKAGE OPTION 1-NV PACKAGE |
55223-0H011 |
— | ||
|
55748C
|
55748C
55748-0H010
Brace,cowl Top Inner To Pillar, Rh
[02.2005 - 12.2008] KGB10,WNB10 |
55748-0H010 |
— | ||
|
55749D
|
55749D
55749-0H010
Brace,cowl Top Inner To Pillar, Lh
[02.2005 - 12.2008] KGB10,WNB10 |
55749-0H010 |
— | ||
|
57104A
|
57104A
57104-0H010
Member Sub-Assy, Front Cross
[02.2005 - 12.2008] KGB10,WNB10 |
57104-0H010 |
— | ||
|
62105B
|
62105B
62105-0H010
Insulator Sub-Assy, Cowl Side, Rh
[02.2005 - 12.2008] KGB10,WNB10 |
62105-0H010 |
— | ||
|
62106B
|
62106B
62106-0H010
Insulator Sub-Assy, Cowl Side, Lh
[02.2005 - 12.2008] KGB10,WNB10 |
62106-0H010 |
— | ||
|
90109W0008
|
90109W0008
90109-W0008
New Genuine Part
|
90109-W0008 |
— | ||
|
90109W0010
|
90109W0010
90109-W0010
New Genuine Part
|
90109-W0010 |
— | ||
|
90119W0065
|
90119W0065
90119-W0065
New Genuine Part
|
90119-W0065 |
— | ||
|
90119W0075
|
90119W0075
90119-W0075
New Genuine Part
|
90119-W0075 |
— | ||
|
90182W0004
|
90182W0004
90182-W0004
New Genuine Part
|
90182-W0004 |
— | ||
|
90467W0007
|
90467W0007
90467-W0007 Clip |
90467-W0007 |
from US $0.92 |
||
|
9046706197
|
9046706197
90467-06197 Clip |
90467-06197 |
US $1.92 |
||
