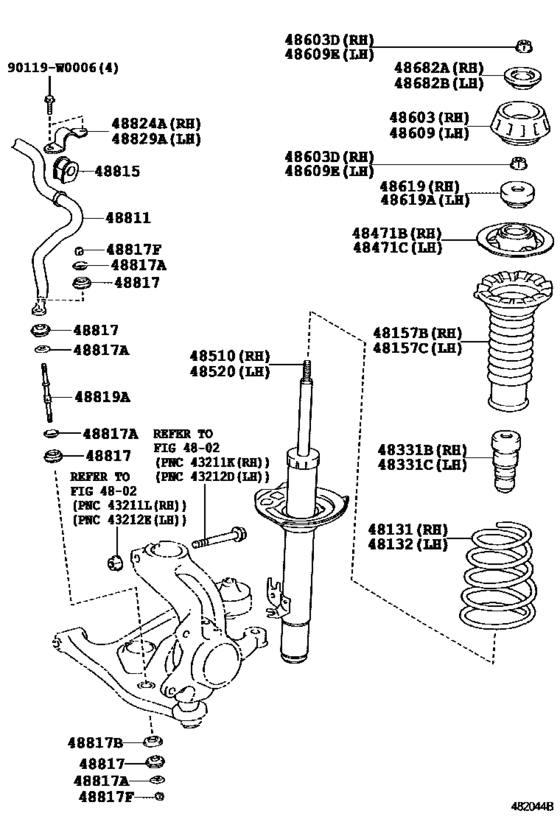

Front Spring & Shock Absorber ([02.2005 - ] (0502- )) Diagram Toyota AYGO
- Year
- 2005 - 2014
- Sales region
- Europe
- Frame
- KGB10
- grade
- LEDIN
- ENGINE
- 1KRFE
- TRANSMISSION
- MTM
- From
- 02.2005
- To
- 06.2014
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-0H010
Spring, Front Coil, Rh
[02.2005 - 12.2008] KGB10 |
48131-0H010 |
— | ||
|
48132
|
48132
48131-0H010
Spring, Front Coil, Rh
[02.2005 - 12.2008] KGB10 |
48131-0H010 |
— | ||
|
48157B
|
48157B
48157-0H010
Insulator, Front Coil Spring, Upper Rh
[02.2005 - 12.2008] KGB10,WNB10 |
48157-0H010 |
— | ||
|
48157C
|
48157C
48157-0H010
Insulator, Front Coil Spring, Upper Rh
[02.2005 - 12.2008] KGB10,WNB10 |
48157-0H010 |
— | ||
|
48331B
|
48331B
48331-0H010
Bumper, Front Spring, Rh
[02.2005 - 12.2008] KGB10,WNB10 |
48331-0H010 |
— | ||
|
48331C
|
48331C
48331-0H010
Bumper, Front Spring, Rh
[02.2005 - 12.2008] KGB10,WNB10 |
48331-0H010 |
— | ||
|
48471B
|
48471B
48471-0H010
Seat, Front Coil Spring, Upper Rh
[02.2005 - 12.2008] KGB10,WNB10 |
48471-0H010 |
— | ||
|
48471C
|
48471C
48471-0H010
Seat, Front Coil Spring, Upper Rh
[02.2005 - 12.2008] KGB10,WNB10 |
48471-0H010 |
— | ||
|
48510
|
48510
48510-0H010 Absorber Assy, Shock, Front RhSHOCK, FRONT RH [02.2005 - 12.2008] KGB10 MARK 48510-0H010 |
48510-0H010 |
US $250.43 |
||
|
48510
|
48510
48510-0H030
Absorber Assy, Shock, Front Rh
[02.2012 -] KGB10 MARK 48510-0H030 |
48510-0H030 |
— | ||
|
48520
|
48520
48520-0H010 Absorber Assy, Shock, Front LhSHOCK, FRONT LH [02.2005 - 12.2008] KGB10 MARK 48520-0H010 |
48520-0H010 |
US $250.43 |
||
|
48520
|
48520
48520-0H030
Absorber Assy, Shock, Front Lh
[02.2012 -] KGB10 MARK 48520-0H030 |
48520-0H030 |
— | ||
|
48603
|
48603
48609-0H010
Support Sub-Assy, Front Suspension, Rh
[02.2005 - 12.2008] KGB10,WNB10 |
48609-0H010 |
— | ||
|
48603D
|
48603D
90178-W0015
Nut(For Front Support To Front Shock Absorber Rh)
[02.2005 - 12.2008] KGB10,WNB10 |
90178-W0015 |
— | ||
|
48609
|
48609
48609-0H010
Support Sub-Assy, Front Suspension, Rh
[02.2005 - 12.2008] KGB10,WNB10 |
48609-0H010 |
— | ||
|
48609E
|
48609E
90178-W0015
Nut(For Front Support To Front Shock Absorber Rh)
[02.2005 - 12.2008] KGB10,WNB10 |
90178-W0015 |
— | ||
|
48619
|
48619
48619-0H010 Bearing, Strut Mounting, RhSTRUT MOUNTING, RH [02.2005 - 12.2008] KGB10,WNB10 |
48619-0H010 |
US $7.86 |
||
|
48619A
|
48619A
48619-0H010 Bearing, Strut Mounting, RhSTRUT MOUNTING, RH [02.2005 - 12.2008] KGB10,WNB10 |
48619-0H010 |
US $7.86 |
||
|
48682A
|
48682A
48682-0H010
Support, Front Suspension, No.2 Rh
[02.2005 - 12.2008] KGB10,WNB10 |
48682-0H010 |
— | ||
|
48682B
|
48682B
48682-0H010
Support, Front Suspension, No.2 Rh
[02.2005 - 12.2008] KGB10,WNB10 |
48682-0H010 |
— | ||
|
48811
|
48811
48811-0H010 Bar, Stabilizer, FrontSTABILIZER, FRONT [02.2005 - 12.2008] KGB10,WNB10 |
48811-0H010 |
US $109.20 |
||
|
48815
|
48815
48815-0H010 Bush, Front Stabilizer Bar, No.1FRONT STABILIZER BAR, NO.1 [02.2005 - 12.2008] KGB10,WNB10 |
48815-0H010 |
US $8.59 |
||
|
48817
|
48817
48817-0D010 Cushion, Front StabilizerFRONT STABILIZER [02.2005 - 12.2008] KGB10,WNB10 |
48817-0D010 |
from US $2.62 |
||
|
48817A
|
48817A
90948-02179 Retainer, Cushion, No.1(For Front Stabilizer Bar)[02.2005 - 12.2008] KGB10,WNB10 |
90948-02179 |
from US $1.60 |
||
|
48817B
|
48817B
90948-02178 Retainer, Cushion, No.2(For Front Stabilizer Bar)[02.2005 - 12.2008] KGB10,WNB10 |
90948-02178 |
from US $2.88 |
||
|
48817F
|
48817F
90177-W0002
Nut(For Front Stabilizer Bar)
[02.2005 - 12.2008] KGB10,WNB10 |
90177-W0002 |
— | ||
|
48819A
|
48819A
48819-70010 Bolt, Front StabilizerFRONT STABILIZER [02.2005 - 12.2008] KGB10,WNB10 |
48819-70010 |
from US $1.12 |
||
|
48824A
|
48824A
48824-0H010
Bracket, Front Stabilizer, No.1 Rh
[02.2005 - 12.2008] KGB10,WNB10 |
48824-0H010 |
— | ||
|
48829A
|
48829A
48824-0H010
Bracket, Front Stabilizer, No.1 Rh
[02.2005 - 12.2008] KGB10,WNB10 |
48824-0H010 |
— | ||
|
90119W0006
|
90119W0006
90119-W0006
New Genuine Part
|
90119-W0006 |
— |
