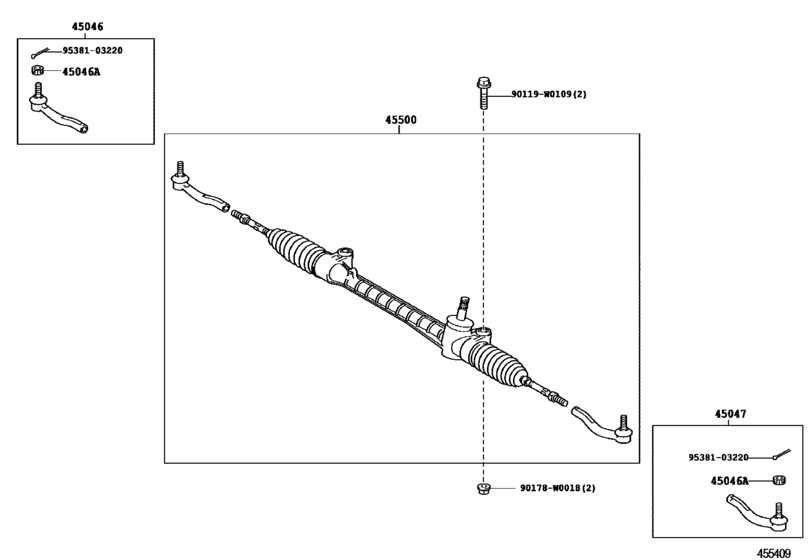

Front Steering Gear & Link ([02.2005 - 12.2008] (0502-0812)KGB10..LHD ; (0502- )WNB10..LHD) Diagram Toyota AYGO
- Year
- 2005 - 2014
- Sales region
- Europe
- Frame
- KGB10
- grade
- LEDIN
- ENGINE
- 1KRFE
- TRANSMISSION
- MTM
- From
- 02.2005
- To
- 06.2014
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-09295
End Sub-Assy, Tie Rod, Rh
[02.2005 - 12.2008] KGB10,WNB10 |
45046-09295 |
— | ||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[02.2005 - 12.2008] KGB10,WNB10 |
90171-12028 |
from US $1.42 |
||
|
45047
|
45047
45047-09125
End Sub-Assy, Tie Rod, Lh
[02.2005 - 12.2008] KGB10,WNB10 |
45047-09125 |
— | ||
|
45500
|
45500
45500-0H010
Link Assy, Steering
[02.2005 - 12.2008] KGB10,WNB10..LHD..LV1; KGB10..LHD..LEDIN STEERING-ELECTRIC POWER STEERING |
45500-0H010 |
— | ||
|
45500
|
45500
45500-0H030
Link Assy, Steering
[02.2005 - 12.2008] KGB10..LHD..LEDIN |
45500-0H030 |
— | ||
|
90119W0109
|
90119W0109
90119-W0109
New Genuine Part
|
90119-W0109 |
— | ||
|
90178W0018
|
90178W0018
90178-W0018
New Genuine Part
|
90178-W0018 |
— | ||
|
9538103220
|
9538103220
95381-03220 New Genuine Part |
95381-03220 |
US $0.87 |
