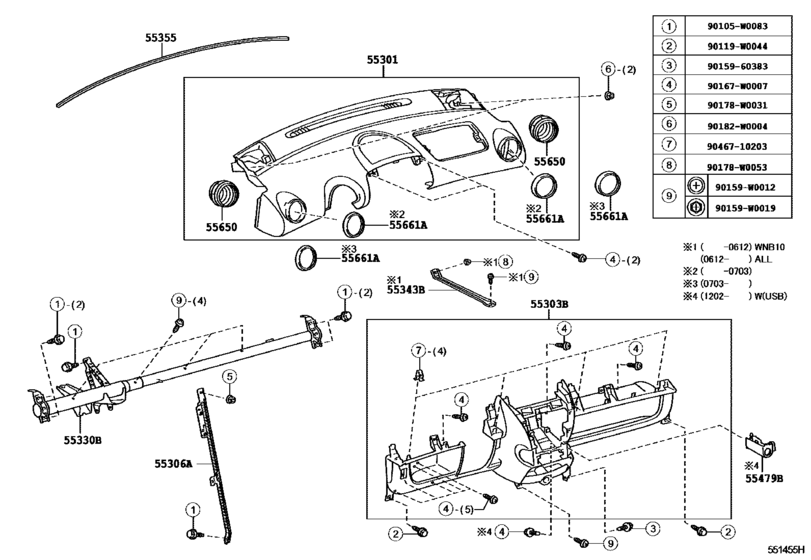

Instrument Panel & Glove Compartment ([02.2005 - ] (0502- )LHD) Diagram Toyota AYGO
- Year
- 2005 - 2014
- Sales region
- Europe
- Frame
- KGB10
- grade
- LEDIN
- ENGINE
- 1KRFE
- TRANSMISSION
- MTM
- From
- 02.2005
- To
- 06.2014
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55301
|
55301
55300-0H903
Panel Sub-Assy, Instrument
[02.2005 - 12.2008] KGB10,WNB10..LHD |
55300-0H903 |
— | ||
|
55303B
|
55303B
55303-0H010-B0
Panel Sub-Assy, Instrument, Lower
[02.2005 - 12.2008] KGB10,WNB10..LHD MEDIUM GREY,TRIM1# |
55303-0H010-B0 |
— | ||
|
55303B
|
55303B
55303-0H010-B1
Panel Sub-Assy, Instrument, Lower
[02.2012 - 06.2014] KGB10..LHD DARK GREY,TRIM1# |
55303-0H010-B1 |
— | ||
|
55303B
|
55303B
55303-0H030-B0
Panel Sub-Assy, Instrument, Lower
[02.2012 - 06.2014] KGB10..LHD AUDIO-RADIO+CD+USB+BLUETOOTH 4SPEAKER,DARK GREY,TRIM1# |
55303-0H030-B0 |
— | ||
|
55306A
|
55306A
55306-0H010
Brace Sub-Assy, Instrument Panel, No.1
[02.2005 - 12.2008] KGB10,WNB10..LHD |
55306-0H010 |
— | ||
| replacement | |||||
|
55306A
|
55306A
55306-0H011
Brace Sub-Assy, Instrument Panel, No.1
[02.2005 - 12.2008] KGB10,WNB10..LHD |
55306-0H011 |
— | ||
|
55306A
|
55306A
55306-0H040
Brace Sub-Assy, Instrument Panel, No.1
[02.2012 -] KGB10..LHD |
55306-0H040 |
— | ||
|
55330B
|
55330B
55330-0H010
Reinforcement Assy, Instrument Panel
[02.2005 - 12.2008] KGB10,WNB10..LHD |
55330-0H010 |
— | ||
|
55343B
|
55343B
55343-0H010
Brace, Instrument Panel To Cowl, Center
[12.2006 - 12.2008] KGB10 |
55343-0H010 |
— | ||
|
55355
|
55355
55355-0H010
Cushion, Instrument Panel, No.1
[02.2005 - 12.2008] KGB10,WNB10 |
55355-0H010 |
— | ||
|
55479B
|
55479B
55479-0H010-B0
Cover, Instrument, Lower Center
[02.2012 - 06.2014] KGB10 AUDIO-RADIO+CD+USB+BLUETOOTH 4SPEAKER,DARK GREY,TRIM1# |
55479-0H010-B0 |
— | ||
|
55650
|
55650
55650-0H010-B0
Register Assy, Instrument Panel, No.1
[02.2005 - 12.2008] KGB10,WNB10 DARK GREY,TRIM1# |
55650-0H010-B0 |
— | ||
|
55661A
|
55661A
55661-0H010
Bezel, Instrument Panel Register
[02.2005 - 03.2007] KGB10,WNB10 |
55661-0H010 |
— | ||
| replacement | |||||
|
55661A
|
55661A
55661-0H010-B1
Bezel, Instrument Panel Register
[02.2005 - 03.2007] KGB10,WNB10 |
55661-0H010-B1 |
— | ||
|
55661A
|
55661A
55661-0H010-B1
Bezel, Instrument Panel Register
[03.2007 - 12.2008] KGB10,WNB10 GRAY METALLIC,TRIM1#&068 ,1E0 ,1E7 ,211 ,3P0 ,4R0 ,8M6 ,8R0 |
55661-0H010-B1 |
— | ||
|
55661A
|
55661A
55661-0H020-C0
Bezel, Instrument Panel Register
[12.2008 - 02.2012] KGB10 PACKAGE OPTION 3-T COLOR RING,BLACK MC.,TRIM10&068 ,1E0 ,1E7 ,211 ,3P0 ,3R3 ,6T7 , 8U7 |
55661-0H020-C0 |
— | ||
|
55661A
|
55661A
55661-0H020-D0
Bezel, Instrument Panel Register
[03.2010 - 03.2011] KGB10 PACKAGE OPTION 3-T COLOR RING,RED M.M.,TRIM10,2#&3R3 |
55661-0H020-D0 |
— | ||
|
55661A
|
55661A
55661-0H020-E0
Bezel, Instrument Panel Register
[03.2007 - 12.2008] KGB10..LEDIN PACKAGE OPTION 3-T COLOR RING,BEIGE ME.,TRIM10&4R0; KGB10,WNB10..LV1 PACKAGE OPTION 3-T COLOR RING,BEIGE ME.,TRIM10,11&4R0 |
55661-0H020-E0 |
— | ||
|
55661A
|
55661A
55661-0H020-E1
Bezel, Instrument Panel Register
[02.2012 - 07.2013] KGB10..LEDIN T IP+SP PACKAGE,ORANGE ME.,TRIM10; KGB10..LV1 T IP+SP PACKAGE,ORANGE ME.,TRIM10,15; KGB10..LEDIN T IP BLACK+SP MATERIAL PACKAGE,ORANGE ME.,TRIM10; KGB10..LV1 T IP BLACK+SP MATERIAL PACKAGE,ORANGE ME.,TRIM10,15; KGB10..LEDI |
55661-0H020-E1 |
— | ||
|
55661A
|
55661A
55661-0H020-G0
Bezel, Instrument Panel Register
[12.2008 - 03.2010] KGB10..LEDIN PACKAGE OPTION 3-T COLOR RING,OLIVE M.M.,TRIM10&6T7; KGB10,WNB10..LV1 PACKAGE OPTION 3-T COLOR RING,OLIVE M.M.,TRIM10,11&6T7 |
55661-0H020-G0 |
— | ||
|
55661A
|
55661A
55661-0H020-G1
Bezel, Instrument Panel Register
[03.2011 - 02.2012] KGB10 PACKAGE OPTION 3-T COLOR RING,DK.GREEN MC.,TRIM10,2#&6T3; KGB10 PACKAGE OPTION 3-COLOR RING-BLACK,DK.GREEN MC.,TRIM10,2#&6T3 |
55661-0H020-G1 |
— | ||
|
55661A
|
55661A
55661-0H020-J1
Bezel, Instrument Panel Register
[03.2007 - 03.2008] KGB10..LEDIN PACKAGE OPTION 3-T COLOR RING,BLUE MC.,TRIM10&8M6; KGB10,WNB10..LV1 PACKAGE OPTION 3-T COLOR RING,BLUE MC.,TRIM10,11&8M6 |
55661-0H020-J1 |
— | ||
|
55661A
|
55661A
55661-0H020-J3
Bezel, Instrument Panel Register
[03.2008 - 12.2008] KGB10..LEDIN PACKAGE OPTION 3-T COLOR RING,GRAYISH BLUE ME.,TRIM10&8R3; KGB10,WNB10..LV1 PACKAGE OPTION 3-T COLOR RING,GRAYISH BLUE ME.,TRIM10,11&8R3 |
55661-0H020-J3 |
— | ||
|
55661A
|
55661A
55661-0H020-J4
Bezel, Instrument Panel Register
[12.2008 - 03.2010] KGB10,WNB10 PACKAGE OPTION 3-T COLOR RING,BLUE ME.,TRIM10&8U7 |
55661-0H020-J4 |
— | ||
|
55661A
|
55661A
55661-0H020-J5
Bezel, Instrument Panel Register
[07.2013 - 06.2014] KGB10..LEDIN T IP+SP PACKAGE,COOL SODA ME.,TRIM10; KGB10..LV1 T IP+SP PACKAGE,COOL SODA ME.,TRIM10,16; KGB10..LEDIN T IP BLACK+SP MATERIAL PACKAGE,COOL SODA ME.,TRIM10; KGB10..LV1 T IP BLACK+SP MATERIAL PACKAGE,COOL SODA ME.,TRIM10,16; |
55661-0H020-J5 |
— | ||
|
90105W0083
|
90105W0083
90105-W0083
New Genuine Part
|
90105-W0083 |
— | ||
|
90119W0044
|
90119W0044
90119-W0044
New Genuine Part
|
90119-W0044 |
— | ||
|
90159W0012
|
90159W0012
90159-W0012
New Genuine Part
|
90159-W0012 |
— | ||
|
90159W0019
|
90159W0019
90159-W0019
New Genuine Part
|
90159-W0019 |
— | ||
|
90167W0007
|
90167W0007
90167-W0007
New Genuine Part
|
90167-W0007 |
— | ||
|
90178W0031
|
90178W0031
90178-W0031
Nut (For Transmission Control Cable)
|
90178-W0031 |
— | ||
|
90178W0053
|
90178W0053
90178-W0053
New Genuine Part
|
90178-W0053 |
— | ||
|
90182W0004
|
90182W0004
90182-W0004
New Genuine Part
|
90182-W0004 |
— | ||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
| replacement | |||||
|
9015960383
|
9015960383
90159-A0010 SCREW WWASHER TAPP |
90159-A0010 |
from US $2.38 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
