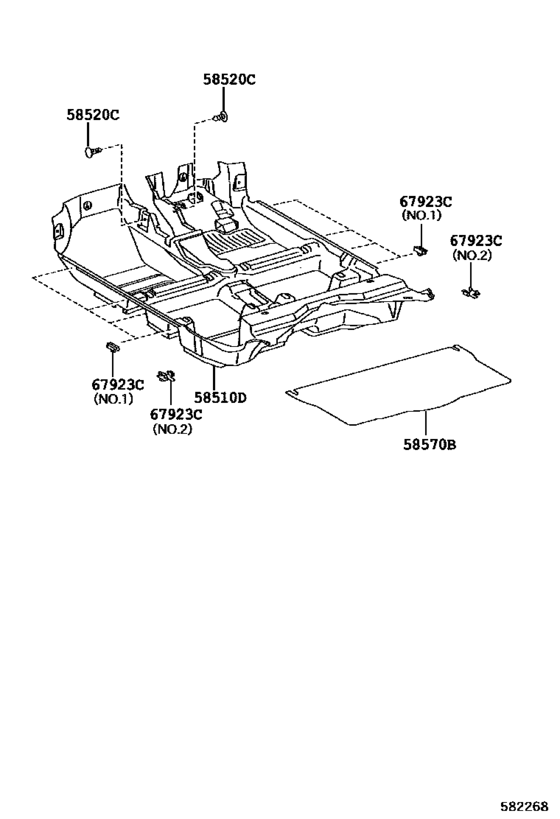

Mat & Carpet ([02.2005 - ] (0502- )) Diagram Toyota AYGO
- Year
- 2005 - 2014
- Sales region
- Europe
- Frame
- KGB10
- grade
- LEDIN
- ENGINE
- 1KRFE
- TRANSMISSION
- MTM
- From
- 02.2005
- To
- 06.2014
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58510D
|
58510D
58510-0H030-B0
Carpet Assy, Floor, Front
[02.2005 - 08.2006] KGB10,WNB10..LHD..3D DK.GRAY,TRIM1# |
58510-0H030-B0 |
— | ||
|
58510D
|
58510D
58510-0H031-B0
Carpet Assy, Floor, Front
[08.2006 - 07.2008] KGB10,WNB10..LHD..3D DARK GREY,TRIM1# |
58510-0H031-B0 |
— | ||
| replacement | |||||
|
58510D
|
58510D
58510-0H032-B0
Carpet Assy, Floor, Front
[08.2006 - 07.2008] KGB10,WNB10..LHD..3D DARK GREY,TRIM1# |
58510-0H032-B0 |
— | ||
|
58510D
|
58510D
58510-0H032-B0
Carpet Assy, Floor, Front
[08.2008 - 12.2008] KGB10,WNB10..LHD..3D DARK GREY,TRIM1# |
58510-0H032-B0 |
— | ||
|
58510D
|
58510D
58510-0H033-B0
Carpet Assy, Floor, Front
[08.2010 - 11.2011] KGB10,WNB10..LHD..3D DARK GREY,TRIM1#,2# |
58510-0H033-B0 |
— | ||
|
58510D
|
58510D
58510-0H034-B0
Carpet Assy, Floor, Front
[11.2011 - 02.2012] KGB10..LHD..3D DARK GREY,TRIM1#,2# |
58510-0H034-B0 |
— | ||
|
58520C
|
58520C
90467-W0006-B1 Clip(For Front Floor Carpet)[02.2005 - 12.2008] KGB10,WNB10 DARK GREY,TRIM1# |
90467-W0006-B1 |
US $2.08 |
||
|
58570B
|
58570B
58570-0H010-B1
Mat Assy, Rear Floor
[02.2005 - 12.2008] KGB10,WNB10 DARK GREY,TRIM1#; KGB10..LEDIN SPARE TIRE-155/65R14,DARK GREY,TRIM1#; KGB10..LEDIN LUGGAGE TRAY-WITH,DARK GREY,TRIM1#; KGB10..3D N1 PACKAGE,DARK GREY,TRIM1# |
58570-0H010-B1 |
— | ||
|
67923C
|
67923C
67923-0H020
Clamp, Door Scuff Plate, No.1
[02.2005 - 12.2008] KGB10,WNB10..3D NO.1 |
67923-0H020 |
— | ||
|
67923C
|
67923C
67923-0H030
Clamp, Door Scuff Plate, No.1
[02.2005 - 12.2008] KGB10,WNB10 NO.2 |
67923-0H030 |
— | ||
