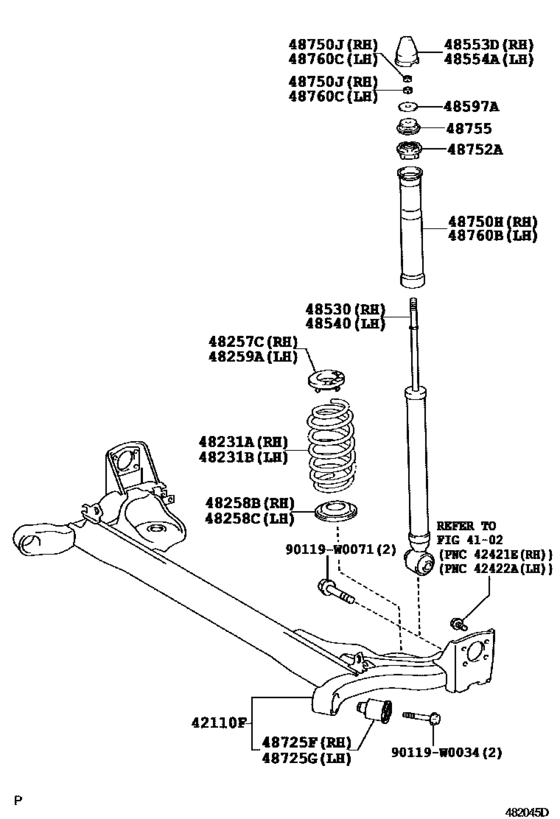

Rear Spring & Shock Absorber ([02.2005 - ] (0502- )) Diagram Toyota AYGO
- Year
- 2005 - 2014
- Sales region
- Europe
- Frame
- KGB10
- grade
- LEDIN
- ENGINE
- 1KRFE
- TRANSMISSION
- MTM
- From
- 02.2005
- To
- 06.2014
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42110F
|
42110F
42110-0H010
Beam Assy, Rear Axle
[02.2005 - 12.2008] KGB10,WNB10 |
42110-0H010 |
— | ||
|
48231A
|
48231A
48231-0H010
Spring, Coil, Rear Rh
[05.2008 - 12.2008] KGB10..3D N1 PACKAGE,SILVER PAINTED |
48231-0H010 |
— | ||
|
48231A
|
48231A
48231-0H020 Spring, Coil, Rear RhCOIL, REAR RH [02.2005 - 12.2008] KGB10,WNB10 |
48231-0H020 |
US $77.96 |
||
|
48231B
|
48231B
48231-0H010
Spring, Coil, Rear Rh
[05.2008 - 12.2008] KGB10..3D N1 PACKAGE,SILVER PAINTED |
48231-0H010 |
— | ||
|
48231B
|
48231B
48231-0H020 Spring, Coil, Rear RhCOIL, REAR RH [02.2005 - 12.2008] KGB10,WNB10 |
48231-0H020 |
US $77.96 |
||
|
48257C
|
48257C
48257-0H010
Insulator, Rear Coil Spring, Upper Rh
[02.2005 - 12.2008] KGB10,WNB10 |
48257-0H010 |
— | ||
|
48258B
|
48258B
48258-0H010
Insulator, Rear Coil Spring, Lower Rh
[02.2005 - 12.2008] KGB10,WNB10 |
48258-0H010 |
— | ||
|
48258C
|
48258C
48258-0H010
Insulator, Rear Coil Spring, Lower Rh
[02.2005 - 12.2008] KGB10,WNB10 |
48258-0H010 |
— | ||
|
48259A
|
48259A
48257-0H010
Insulator, Rear Coil Spring, Upper Rh
[02.2005 - 12.2008] KGB10,WNB10 |
48257-0H010 |
— | ||
|
48530
|
48530
48530-0H010 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [02.2005 - 12.2008] KGB10,WNB10 MARK 48530-0H010 |
48530-0H010 |
US $84.45 |
||
|
48530
|
48530
48530-0H030
Absorber Assy, Shock, Rear Rh
[02.2012 -] KGB10 MARK 48530-0H030 |
48530-0H030 |
— | ||
|
48540
|
48540
48530-0H010 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [02.2005 - 12.2008] KGB10,WNB10 MARK 48530-0H010 |
48530-0H010 |
US $84.45 |
||
|
48540
|
48540
48530-0H030
Absorber Assy, Shock, Rear Rh
[02.2012 -] KGB10 MARK 48530-0H030 |
48530-0H030 |
— | ||
|
48553D
|
48553D
48553-52010 Cap, Rear Shock Absorber, Rh[02.2005 - 12.2008] KGB10,WNB10 |
48553-52010 |
US $7.04 |
||
|
48554A
|
48554A
48553-52010 Cap, Rear Shock Absorber, Rh[02.2005 - 12.2008] KGB10,WNB10 |
48553-52010 |
US $7.04 |
||
|
48597A
|
48597A
90201-10320 Retainer, Rear Shock Absober Cushion[02.2005 - 12.2008] KGB10,WNB10 |
90201-10320 |
from US $3.78 |
||
|
48725F
|
48725F
48725-0H010
Bush, Rear Axle Carrier, Rh
[02.2005 - 12.2008] KGB10,WNB10 |
48725-0H010 |
— | ||
|
48725G
|
48725G
48725-0H010
Bush, Rear Axle Carrier, Rh
[02.2005 - 12.2008] KGB10,WNB10 |
48725-0H010 |
— | ||
|
48750H
|
48750H
48750-0H010
Support Assy, Rear Suspension, Rh
[02.2005 - 12.2008] KGB10,WNB10 |
48750-0H010 |
— | ||
|
48750J
|
48750J
94130-61000 Nut(For Clutch Pedal Stopper)[02.2005 - 12.2008] KGB10,WNB10 |
94130-61000 |
from US $0.82 |
||
|
48752A
|
48752A
48752-0H010
Stopper, Rear Suspension Support
[02.2005 - 12.2008] KGB10,WNB10 |
48752-0H010 |
— | ||
|
48755
|
48755
48755-0H010
Support, Rear Suspension
[02.2005 - 12.2008] KGB10,WNB10 |
48755-0H010 |
— | ||
|
48760B
|
48760B
48750-0H010
Support Assy, Rear Suspension, Rh
[02.2005 - 12.2008] KGB10,WNB10 |
48750-0H010 |
— | ||
|
48760C
|
48760C
94130-61000 Nut(For Clutch Pedal Stopper)[02.2005 - 12.2008] KGB10,WNB10 |
94130-61000 |
from US $0.82 |
||
|
90119W0034
|
90119W0034
90119-W0034
New Genuine Part
|
90119-W0034 |
— | ||
|
90119W0071
|
90119W0071
90119-W0071
New Genuine Part
|
90119-W0071 |
— |
