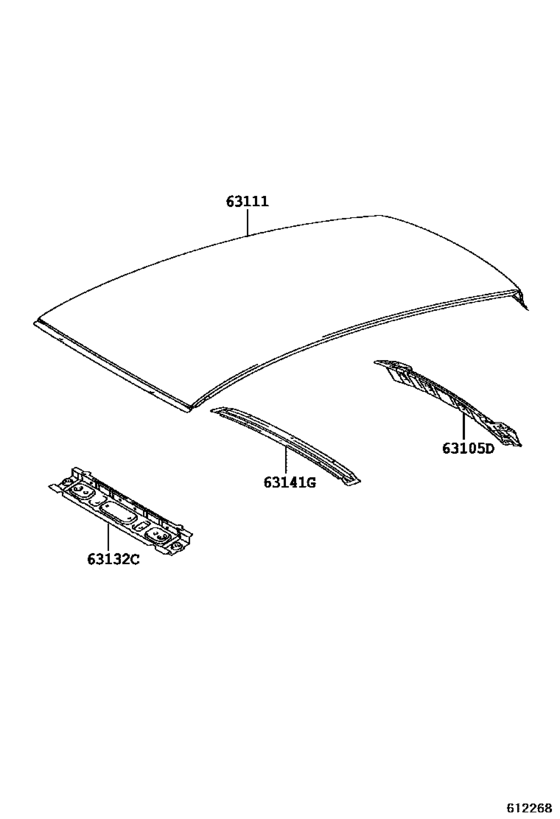

Roof Panel & Back Window Glass ([02.2005 - ] (0502- )) Diagram Toyota AYGO
- Year
- 2005 - 2014
- Sales region
- Europe
- Frame
- KGB10
- grade
- LEDIN
- ENGINE
- 1KRFE
- TRANSMISSION
- MTM
- From
- 02.2005
- To
- 06.2014
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63105D
|
63105D
63105-0H010
Frame Sub-Assy, Back Window, Upper
[02.2005 - 12.2008] KGB10,WNB10 |
63105-0H010 |
— | ||
|
63111
|
63111
63111-0H010
Panel, Roof
[02.2005 - 12.2008] KGB10,WNB10 |
63111-0H010 |
— | ||
| replacements | |||||
|
63111
|
63111
63111-0H011
Panel, Roof
[02.2005 - 12.2008] KGB10,WNB10 |
63111-0H011 |
— | ||
|
63111
|
63111
86101-0H011
Cord Sub-Assy, Antenna, No.2
[02.2005 - 12.2008] KGB10,WNB10 |
86101-0H011 |
— | ||
|
63111
|
63111
86101-0H021
Cord Sub-Assy, Antenna, No.2
[02.2005 - 12.2008] KGB10,WNB10 |
86101-0H021 |
— | ||
|
63111
|
63111
86101-0H031
Cord Sub-Assy, Antenna, No.2
[02.2005 - 12.2008] KGB10,WNB10 |
86101-0H031 |
— | ||
|
63111
|
63111
86101-0H041
Cord Sub-Assy, Antenna, No.2
[02.2005 - 12.2008] KGB10,WNB10 |
86101-0H041 |
— | ||
|
63111
|
63111
86300-0H011
Antenna Assy, W/holder
[02.2005 - 12.2008] KGB10,WNB10 |
86300-0H011 |
— | ||
|
63111
|
63111
63111-0H011
Panel, Roof
[08.2013 -] KGB10 |
63111-0H011 |
— | ||
|
63132C
|
63132C
63132-0H010
Panel, Windshield Header, Inner
[02.2005 - 12.2008] KGB10,WNB10 |
63132-0H010 |
— | ||
|
63141G
|
63141G
63141-0H010
Reinforcement, Roof Panel, No.1
[02.2005 - 12.2008] KGB10,WNB10 |
63141-0H010 |
— | ||
