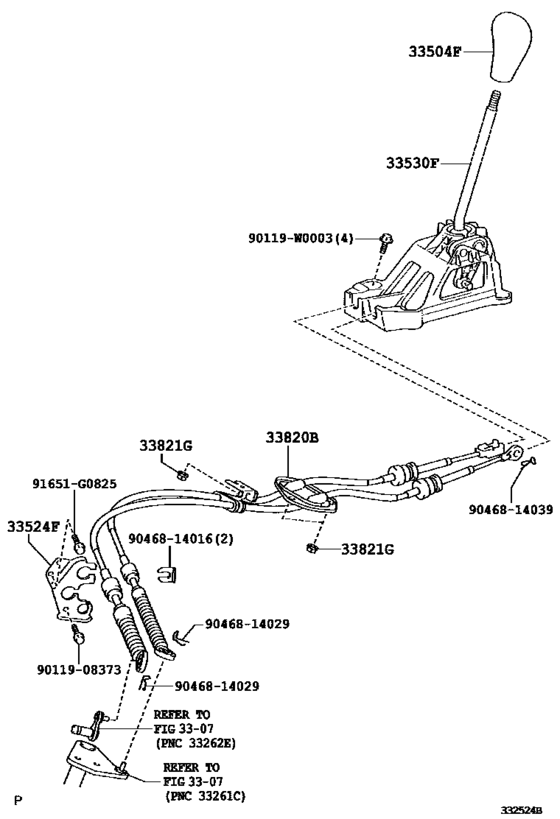

Shift Lever & Retainer ([02.2005 - ] (0502- )5F) Diagram Toyota AYGO
- Year
- 2005 - 2014
- Sales region
- Europe
- Frame
- KGB10
- grade
- LEDIN
- ENGINE
- 1KRFE
- TRANSMISSION
- MTM
- From
- 02.2005
- To
- 06.2014
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-05010-B4
Knob Sub-Assy, Shift Lever
[02.2005 - 12.2008] KGB10,WNB10..5F DARK GREY,TRIM1# |
33504-05010-B4 |
— | ||
|
33504F
|
33504F
33504-0H020-B0
Knob Sub-Assy, Shift Lever
[02.2012 - 05.2014] KGB10..5F DARK GREY,TRIM1# |
33504-0H020-B0 |
— | ||
|
33504F
|
33504F
33504-0H030-B0
Knob Sub-Assy, Shift Lever
[02.2012 - 05.2014] KGB10..5F STEERING WHEEL-TOYOTA, 3-SPOKE, LEATHER,DARK GREY,TRIM1# |
33504-0H030-B0 |
— | ||
|
33524F
|
33524F
33524-0H010
Bracket, Control Lever Housing Support (For Floor Shift)
[02.2005 - 12.2008] KGB10..5F; WNB10 |
33524-0H010 |
— | ||
|
33530F
|
33530F
33530-0H010
Lever Assy, Shift (For Floor Shift)
[02.2005 - 12.2008] KGB10,WNB10..5F |
33530-0H010 |
— | ||
|
33530F
|
33530F
33530-0H020
Lever Assy, Shift (For Floor Shift)
[02.2012 -] KGB10..5F |
33530-0H020 |
— | ||
|
33820B
|
33820B
33820-0H010
Cable Assy, Transmission Control
[02.2005 - 12.2008] KGB10..5F |
33820-0H010 |
— | ||
| replacement | |||||
|
33820B
|
33820B
33820-0H011
Cable Assy, Transmission Control
[02.2005 - 12.2008] KGB10..5F |
33820-0H011 |
— | ||
|
33821G
|
33821G
90178-W0019
Nut, Cap(For Cylinder Head Cover)
[02.2005 - 12.2008] KGB10,WNB10..5F |
90178-W0019 |
— | ||
|
90119W0003
|
90119W0003
90119-W0003
New Genuine Part
|
90119-W0003 |
— | ||
|
91651G0825
|
91651G0825
91651-G0825 New Genuine Part |
91651-G0825 |
US $1.16 |
||
|
9011908373
|
9011908373
90119-08373 Bolt, W/washer(For Transmission Case Cover) |
90119-08373 |
US $2.24 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9046814029
|
9046814029
90468-14029 CLIP |
90468-14029 |
US $0.70 |
||
|
9046814039
|
9046814039
90468-14039 CLIP |
90468-14039 |
US $1.28 |
||
