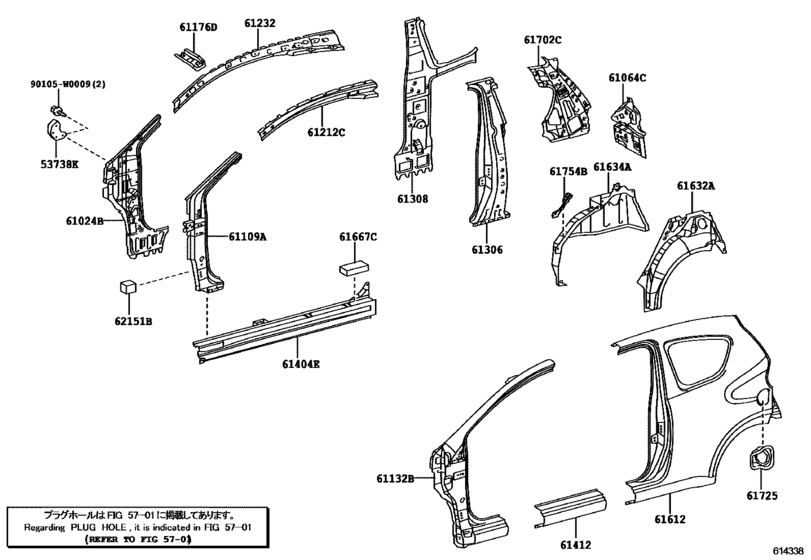

Side Member ([02.2005 - ] LH (0502- )3D) Diagram Toyota AYGO
- Year
- 2005 - 2014
- Sales region
- Europe
- Frame
- KGB10
- grade
- LEDIN
- ENGINE
- 1KRFE
- TRANSMISSION
- MTM
- From
- 02.2005
- To
- 06.2014
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53738K
|
53738K
53737-0H010
Plate, Front Apron To Cowl Side Member, Rh
[02.2005 - 12.2008] KGB10,WNB10 |
53737-0H010 |
— | ||
|
61024B
|
61024B
61024-0H010
Pillar Sub-Assy, Front Body, Inner Lh
[02.2005 - 12.2008] KGB10,WNB10 |
61024-0H010 |
— | ||
|
61064C
|
61064C
61064-0H010
Trough Sub-Assy, Luggage Door Opening, Front Lh
[02.2005 - 12.2008] KGB10,WNB10 |
61064-0H010 |
— | ||
|
61109A
|
61109A
61109-0H010
Reinforce Sub-Assy, Front Body Pillar, Lower Lh
[02.2005 - 12.2008] KGB10,WNB10 |
61109-0H010 |
— | ||
|
61132B
|
61132B
61132-0H050
Pillar, Front Body, Outer Lh
[02.2005 - 12.2008] KGB10,WNB10..3D |
61132-0H050 |
— | ||
|
61176D
|
61176D
61176-0H010
Reinforce, Front Body Pillar, Upper Out No.2 Lh
[02.2005 - 12.2008] KGB10,WNB10 |
61176-0H010 |
— | ||
|
61212C
|
61212C
61212-0H020
Rail, Roof Side, Lh
[02.2005 - 12.2008] KGB10,WNB10..3D |
61212-0H020 |
— | ||
|
61232
|
61232
61232-0H060
Rail, Roof Side, Inner Lh
[02.2005 - 12.2008] KGB10,WNB10..3D |
61232-0H060 |
— | ||
|
61306
|
61306
61306-0H020
Reinforce Sub-Assy, Center Body Pillar, Lower Lh
[02.2005 - 12.2008] KGB10,WNB10..3D |
61306-0H020 |
— | ||
|
61308
|
61308
61308-0H020
Pillar Sub-Assy, Center Body, Inner Lh
[02.2005 - 12.2008] KGB10,WNB10..3D |
61308-0H020 |
— | ||
|
61404E
|
61404E
61404-0H020
Reinforce Sub-Assy, Rocker, Outer Lh
[02.2005 - 12.2008] KGB10,WNB10..3D |
61404-0H020 |
— | ||
|
61412
|
61412
61412-0H020
Panel, Rocker, Outer Lh
[02.2005 - 12.2008] KGB10,WNB10..3D |
61412-0H020 |
— | ||
|
61612
|
61612
61612-0H020
Panel, Quarter, Lh
[02.2005 - 12.2008] KGB10,WNB10..3D |
61612-0H020 |
— | ||
|
61632A
|
61632A
61632-0H010
Panel, Quarter Wheel House, Outer Lh
[02.2005 - 12.2008] KGB10,WNB10 |
61632-0H010 |
— | ||
|
61634A
|
61634A
61608-0H010
Panel, Quarter Wheel House, Inner Lh
[02.2005 - 12.2008] KGB10,WNB10 |
61608-0H010 |
— | ||
|
61667C
|
61667C
61667-0H010
Seal, Qaurter Panel, No.1
[02.2005 - 12.2008] KGB10,WNB10..3D |
61667-0H010 |
— | ||
|
61702C
|
61702C
61702-0H020
Panel Sub-Assy, Roof Side, Outer Lh
[02.2005 - 12.2008] KGB10,WNB10..3D |
61702-0H020 |
— | ||
|
61725
|
61725
61725-0H010
Box, Fuel Inlet
[02.2005 - 12.2008] KGB10,WNB10 |
61725-0H010 |
— | ||
|
61754B
|
61754B
61754-0H010
Retainer, Quarter Trim, Lower Lh
[02.2005 - 12.2008] KGB10,WNB10..3D |
61754-0H010 |
— | ||
|
62151B
|
62151B
62151-0H010
Pad, Cowl Side Silencer
[02.2005 - 12.2008] KGB10,WNB10 |
62151-0H010 |
— | ||
|
90105W0009
|
90105W0009
90105-W0009
New Genuine Part
|
90105-W0009 |
— |
