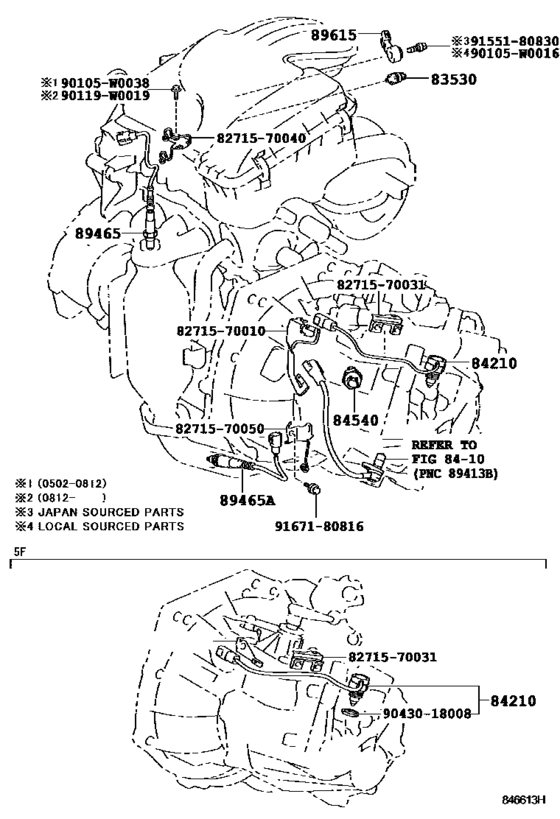

Switch & Relay & Computer ([02.2005 - ] ENGINE & TRANSMISSION (0502- )KGB10) Diagram Toyota AYGO
- Year
- 2005 - 2014
- Sales region
- Europe
- Frame
- KGB10
- grade
- LEDIN
- ENGINE
- 1KRFE
- TRANSMISSION
- MTM
- From
- 02.2005
- To
- 06.2014
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-05010
Switch Assy, Oil Pressure (For Engine)
[02.2005 - 12.2008] KGB10 JAEGER |
83530-05010 |
— | ||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[02.2005 - 12.2008] KGB10 DENSO |
83530-28020 |
from US $29.33 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [02.2005 - 12.2008] KGB10 DENSO |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[02.2005 - 12.2008] KGB10 DENSO |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [02.2005 - 12.2008] KGB10 YAZAKI |
83530-60020 |
from US $25.21 |
||
|
84210
|
84210
84210-52020 Switch Assy, Back-Up LampBACK-UP LAMP [02.2005 - 03.2005] KGB10 |
84210-52020 |
US $29.27 |
||
| replacement | |||||
|
84210
|
84210
84210-52021
Switch Assy, Back-Up Lamp
[02.2005 - 03.2005] KGB10 |
84210-52021 |
— | ||
|
84210
|
84210
84210-52021
Switch Assy, Back-Up Lamp
[03.2005 - 12.2008] KGB10; WNB10 |
84210-52021 |
— | ||
|
84210
|
84210
84210-70010
Switch Assy, Back-Up Lamp
[03.2014 - 06.2014] KGB10 |
84210-70010 |
— | ||
|
89465
|
89465
89465-0H010
Sensor, Oxygen No.2
[02.2005 - 12.2008] KGB10 |
89465-0H010 |
— | ||
|
89465A
|
89465A
89465-0H020
Sensor, Oxygen No.2
[02.2005 - 12.2008] KGB10 |
89465-0H020 |
— | ||
|
89615
|
89615
89615-0H010 Sensor, Knock ControlKNOCK CONTROL [02.2005 - 12.2008] KGB10 |
89615-0H010 |
US $142.69 |
||
|
90105W0016
|
90105W0016
90105-W0016
New Genuine Part
|
90105-W0016 |
— | ||
|
90105W0038
|
90105W0038
90105-W0038
New Genuine Part
|
90105-W0038 |
— | ||
|
90119W0019
|
90119W0019
90119-W0019
BOLT WWASHER
|
90119-W0019 |
— | ||
| replacement | |||||
|
90119W0019
|
90119W0019
90119-A0182 New Genuine Part |
90119-A0182 |
US $2.48 |
||
|
8271570010
|
8271570010
82715-70010
Bracket,wiring Harness Clamp
|
82715-70010 |
— | ||
|
8271570031
|
8271570031
82715-70031 Bracket,wiring Harness Clamp |
82715-70031 |
US $3.93 |
||
|
8271570040
|
8271570040
82715-70040
Bracket,wiring Harness Clamp
|
82715-70040 |
— | ||
|
8271570050
|
8271570050
82715-70050
Bracket,wiring Harness Clamp
|
82715-70050 |
— | ||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $1.15 |
||
|
9155180830
|
9155180830
91551-80830 Bolt, Compressor, No.2 |
91551-80830 |
from US $0.88 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.88 |
||
