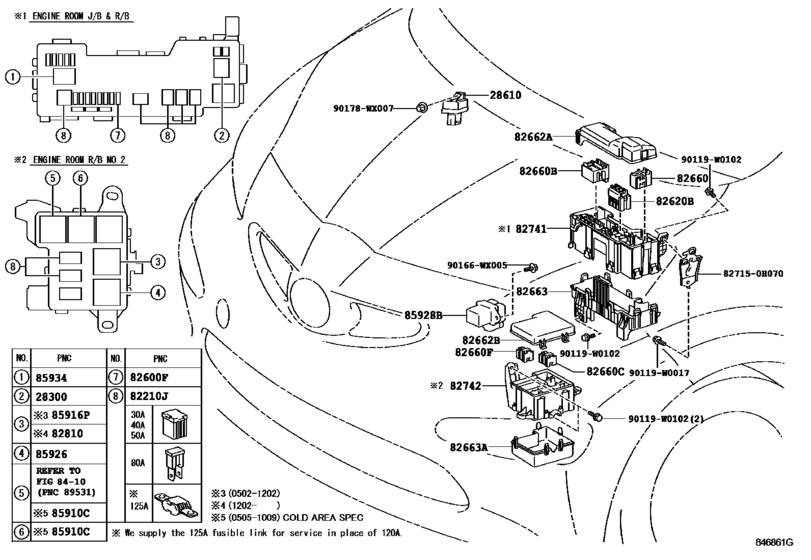

Switch & Relay & Computer ([02.2005 - ] ENGINE ROOM (0502- )) Diagram Toyota AYGO
- Year
- 2005 - 2014
- Sales region
- Europe
- Frame
- KGB10
- grade
- LEDIN
- ENGINE
- 1KRFE
- TRANSMISSION
- MTM
- From
- 02.2005
- To
- 06.2014
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-28010
Relay Assy, Starter
[02.2005 - 12.2008] 1KRFE..KGB10..LHD..5F BATTERY-L0-390A,42AH |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[02.2005 - 12.2008] 1KRFE..KGB10..LHD..5F BATTERY-L0-390A,42AH |
28300-21020 |
from US $40.58 |
||
|
82210J
|
82210J
90982-08294 Fusible Link[02.2005 - 12.2008] KGB10,WNB10 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08295 Fusible Link[02.2005 - 12.2008] KGB10,WNB10 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08296 Fusible Link[02.2005 - 12.2008] KGB10,WNB10 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08297 Fusible Link[02.2005 - 12.2008] KGB10,WNB10 125A |
90982-08297 |
US $8.32 |
||
|
82600F
|
82600F
90080-82020 Instrument Panel Fuse[02.2005 - 12.2008] KGB10,WNB10 7.5A,MINI FUSE |
90080-82020 |
US $1.75 |
||
|
82600F
|
82600F
90080-82021 Instrument Panel Fuse[02.2005 - 12.2008] KGB10,WNB10 10A,MINI FUSE |
90080-82021 |
US $1.46 |
||
|
82600F
|
82600F
90080-82022 Instrument Panel Fuse[02.2005 - 12.2008] KGB10,WNB10 15A,MINI FUSE |
90080-82022 |
US $1.75 |
||
|
82600F
|
82600F
90080-82023 Instrument Panel Fuse[02.2005 - 12.2008] KGB10,WNB10 20A,MINI FUSE |
90080-82023 |
US $1.46 |
||
|
82600F
|
82600F
90080-82024 Fusible Link[02.2005 - 12.2008] KGB10,WNB10 30A,MINI FUSE |
90080-82024 |
US $1.60 |
||
|
82600F
|
82600F
90080-82033
Fuse, Fuse Block
[02.2005 - 12.2008] KGB10,WNB10 25A,MINI FUSE |
90080-82033 |
— | ||
|
82620B
|
82620B
82620-70010
Block Assy, Fusible Link
[02.2005 - 12.2008] KGB10..LHD..LEDIN COLD AREA SPEC=WITH(WITH REAR DUCT)&STEERING-ELECTRIC POWER STEERING&DAYTIME RUNNI NG LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-WITH&BATTERY-L0-390A,42AH; KGB10..LHD..LEDIN COLD AREA SPEC=WITH(WITH REAR DUCT)&STEERING-E |
82620-70010 |
— | ||
|
82660
|
82660
82660-0H010
Block Assy, Relay, Engine Room
[02.2005 - 12.2008] KGB10..RHD;KGB10..LHD..LV1; KGB10..LHD..LEDIN COLD AREA SPEC=WITH(WITH REAR DUCT)&STEERING-ELECTRIC POWER STEERING&DAYTIME RUNNI NG LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-WITH&BATTERY-L0-390A,42AH; KGB10..LHD..LEDIN COLD AREA SPEC=WIT |
82660-0H010 |
— | ||
|
82660B
|
82660B
82660-0H060
Block Assy, Relay
[02.2005 - 12.2008] WNB10;KGB10..RHD;KGB10..LHD..LV1; KGB10..LHD..LEDIN COLD AREA SPEC=WITH(WITH REAR DUCT)&STEERING-ELECTRIC POWER STEERING&DAYTIME RUNNI NG LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-WITH&BATTERY-L0-390A,42AH; KGB10..LHD..LEDIN COLD AREA SP |
82660-0H060 |
— | ||
|
82660C
|
82660C
82660-0H070 Block Assy, Relay[02.2012 - 07.2013] KGB10..LHD..LEDIN STEERING-ELECTRIC POWER STEERING&WITH(VSC)&DAYTIME RUNNING LIGHT SYSTEM-WITH; KGB10..LHD..LEDIN STEERING-ELECTRIC POWER STEERING&WITH(VSC)&DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL; KGB10..LHD..LE |
82660-0H070 |
US $6.99 |
||
|
82660F
|
82660F
82660-26270 Block Assy, Relay, Engine Room[02.2005 - 12.2008] KGB10..LHD..LEDIN COLD AREA SPEC=WITH(WITH REAR DUCT)&STEERING-ELECTRIC POWER STEERING&DAYTIME RUNNI NG LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-WITH&BATTERY-L0-390A,42AH; KGB10..LHD..LEDIN COLD AREA SPEC=WITH(WITH REAR DUCT)&STEERING-E |
82660-26270 |
US $8.48 |
||
|
82660F
|
82660F
82660-52010 Block Assy, Relay[02.2012 - 07.2013] KGB10..LHD..LEDIN STEERING-ELECTRIC POWER STEERING&WITH(VSC)&DAYTIME RUNNING LIGHT SYSTEM-WITH; KGB10..LHD..LEDIN STEERING-ELECTRIC POWER STEERING&WITH(VSC)&DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL; KGB10..LHD..LE |
82660-52010 |
US $7.13 |
||
|
82662A
|
82662A
82662-0H010
Cover, Relay Block, Upper, No.1
[02.2005 - 12.2008] KGB10,WNB10 |
82662-0H010 |
— | ||
|
82662B
|
82662B
82662-0H020
Cover, Relay Block, Upper, No.2
[02.2005 - 12.2008] KGB10..LHD..LEDIN COLD AREA SPEC=WITH(WITH REAR DUCT)&STEERING-ELECTRIC POWER STEERING&DAYTIME RUNNI NG LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-WITH&BATTERY-L0-390A,42AH; KGB10..LHD..LEDIN COLD AREA SPEC=WITH(WITH REAR DUCT)&STEERING-E |
82662-0H020 |
— | ||
|
82663
|
82663
82663-0H010
Cover, Relay Block, Lower
[02.2005 - 12.2008] KGB10,WNB10 |
82663-0H010 |
— | ||
|
82663A
|
82663A
82663-0H020
Cover, Relay Block, Lower, No.2
[02.2005 - 12.2008] KGB10..LHD..LEDIN COLD AREA SPEC=WITH(WITH REAR DUCT)&STEERING-ELECTRIC POWER STEERING&DAYTIME RUNNI NG LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-WITH&BATTERY-L0-390A,42AH; KGB10..LHD..LEDIN COLD AREA SPEC=WITH(WITH REAR DUCT)&STEERING-E |
82663-0H020 |
— | ||
|
82741
|
82741
82741-0H010
Block, Engine Room Relay
[02.2005 - 12.2008] KGB10 |
82741-0H010 |
— | ||
|
82742
|
82742
82741-0H030
Block, Engine Room Relay, No.2
[02.2005 - 12.2008] KGB10..LHD..LEDIN COLD AREA SPEC=WITH(WITH REAR DUCT)&STEERING-ELECTRIC POWER STEERING&DAYTIME RUNNI NG LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-WITH&BATTERY-L0-390A,42AH; KGB10..LHD..LEDIN COLD AREA SPEC=WITH(WITH REAR DUCT)&STEERING-E |
82741-0H030 |
— | ||
|
82810
|
82810
82810-70010
Relay Assy, Running Light
[02.2005 - 11.2008] KGB10,WNB10..LHD DAYTIME RUNNING LIGHT SYSTEM-WITH |
82810-70010 |
— | ||
| replacement | |||||
|
82810
|
82810
82810-70020
Relay Assy, Running Light
[02.2005 - 11.2008] KGB10,WNB10..LHD DAYTIME RUNNING LIGHT SYSTEM-WITH |
82810-70020 |
— | ||
|
82810
|
82810
82810-70020
Relay Assy, Running Light
[12.2008 - 02.2012] KGB10..LHD DAYTIME RUNNING LGT.SYS.-WITH |
82810-70020 |
— | ||
|
82810
|
82810
90080-87021
Relay, Lamp Cut
[02.2012 -] KGB10 DAYTIME RUNNING LIGHT SYSTEM-WITH |
90080-87021 |
— | ||
|
85916P
|
85916P
90080-87030 Relay, Ignition, No.1[02.2005 - 12.2008] KGB10,WNB10..LHD DAYTIME RUNNING LIGHT SYSTEM-WITH |
90080-87030 |
US $39.46 |
||
|
85926
|
85926
90080-87031
Relay Assy (For Heater Blower Motor)
[02.2005 - 12.2008] KGB10,WNB10..LHD DAYTIME RUNNING LIGHT SYSTEM-WITH |
90080-87031 |
— | ||
|
85934
|
85934
90987-02028 Relay, Water Pump[02.2005 - 12.2008] KGB10,WNB10 FRONT AIR CONDITIONER-WITH |
90987-02028 |
from US $44.54 |
||
|
90119W0017
|
90119W0017
90119-W0017
New Genuine Part
|
90119-W0017 |
— | ||
| replacement | |||||
|
90119W0017
|
90119W0017
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.12 |
||
|
90119W0102
|
90119W0102
90119-W0102 New Genuine Part |
90119-W0102 |
US $0.73 |
||
|
90166WX005
|
90166WX005
90166-WX005
New Genuine Part
|
90166-WX005 |
— | ||
|
90178WX007
|
90178WX007
90178-WX007
New Genuine Part
|
90178-WX007 |
— | ||
|
827150H070
|
827150H070
82715-0H070
Bracket,wiring Harness Clamp
|
82715-0H070 |
— | ||
