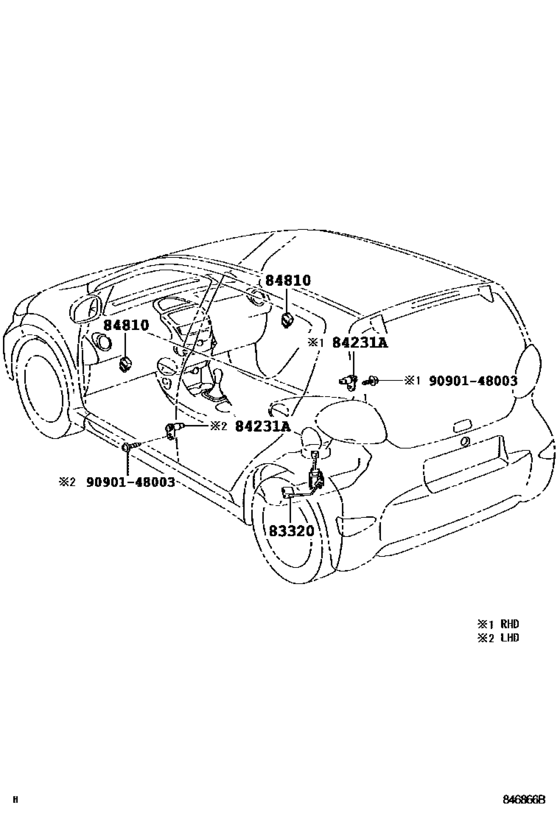

Switch & Relay & Computer ([02.2005 - ] ROOF,FLOOR,DOOR,SEAT & LUGGAGE (0502- )) Diagram Toyota AYGO
- Year
- 2005 - 2014
- Sales region
- Europe
- Frame
- KGB10
- grade
- LEDIN
- ENGINE
- 1KRFE
- TRANSMISSION
- MTM
- From
- 02.2005
- To
- 06.2014
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-0H010
Gage Assy, Fuel Sender
[02.2005 - 12.2008] KGB10 |
83320-0H010 |
— | ||
|
84231A
|
84231A
84231-0D030
Switch Assy, Courtesy Lamp (For Front Door)
[02.2005 - 12.2008] KGB10,WNB10 |
84231-0D030 |
— | ||
|
84810
|
84810
84810-0H010
Switch Assy, Power Window Regulator
[02.2005 - 12.2008] KGB10,WNB10..LV1; KGB10..LHD..LEDIN POWER PACKAGE |
84810-0H010 |
— | ||
|
9090148003
|
9090148003
90901-48003 Screw Hex Lobular |
90901-48003 |
US $1.76 |
