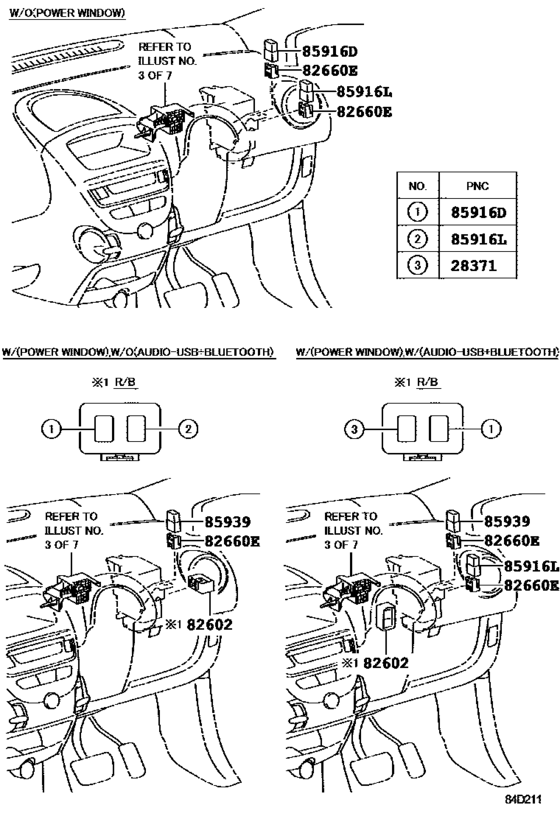

Switch & Relay & Computer ([02.2012 - ] COWL RELAY (1202- )RHD) Diagram Toyota AYGO
- Year
- 2005 - 2014
- Sales region
- Europe
- Frame
- KGB10
- grade
- LEDIN
- ENGINE
- 1KRFE
- TRANSMISSION
- MTM
- From
- 02.2005
- To
- 06.2014
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371
|
28371
90080-87019
Relay, Ignition, No.2
[02.2005 - 12.2008] 1KRFE,2WZTV..KGB10,WNB10 |
90080-87019 |
— | ||
| replacement | |||||
|
28371
|
28371
90080-87021
Relay, Lamp Cut
[02.2005 - 12.2008] 1KRFE,2WZTV..KGB10,WNB10 |
90080-87021 |
— | ||
|
28371
|
28371
90080-87021
Relay, Lamp Cut
[08.2011 - 02.2012] 1KRFE..KGB10 |
90080-87021 |
— | ||
|
82602
|
82602
82602-43060 Block Sub-Assy, Relay[02.2012 - 07.2013] KGB10..RHD..LEDIN POWER PACKAGE&WITH(VSC)&AUDIO-RADIO+CD+USB+BLUETOOTH 4SPEAKER |
82602-43060 |
US $18.05 |
||
|
82660E
|
82660E
82660-20340 Block Assy, Relay, Engine Room[02.2005 - 12.2008] WNB10;KGB10..RHD;KGB10..LHD..LV1; KGB10..LHD..LEDIN COLD AREA SPEC=WITH(WITH REAR DUCT)&STEERING-ELECTRIC POWER STEERING&DAYTIME RUNNI NG LIGHT SYSTEM-WITH; KGB10..LHD..LEDIN COLD AREA SPEC=WITH(WITH REAR DUCT)&STEERING-ELECTRIC POWER |
82660-20340 |
US $5.59 |
||
|
85916D
|
85916D
90080-87021
Relay, Lamp Cut
[02.2012 -] KGB10 FRONT FOG & DRIVING LAMP-WITH |
90080-87021 |
— | ||
|
85916L
|
85916L
90080-87021
Relay, Lamp Cut
[02.2012 -] KGB10 |
90080-87021 |
— | ||
|
85939
|
85939
90080-87021
Relay, Lamp Cut
[02.2012 -] KGB10..LV1; KGB10..LEDIN POWER PACKAGE |
90080-87021 |
— | ||
