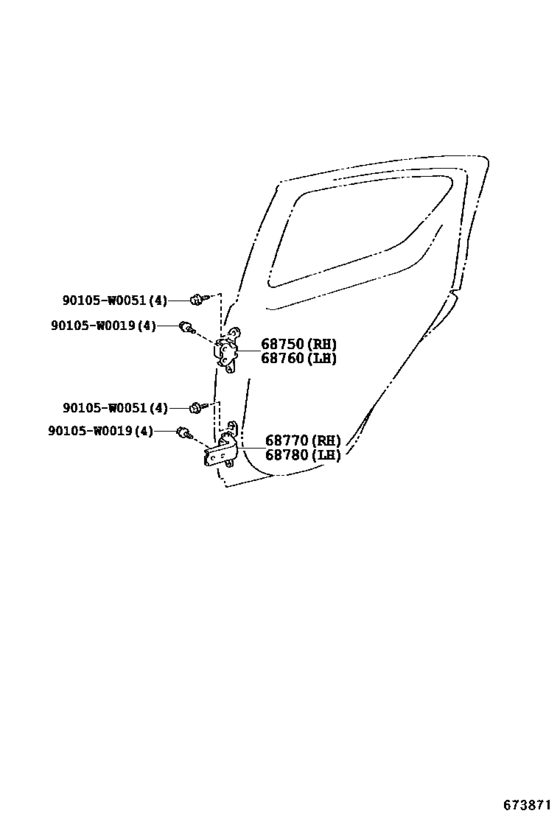

Rear Door Window Regulator & Hinge ([02.2005 - ] (0502- )5D) Diagram Toyota AYGO
- Year
- 2005 - 2010
- Sales region
- Europe
- Frame
- WNB10
- grade
- LV1
- ENGINE
- 2WZTV
- TRANSMISSION
- MTM
- From
- 05.2005
- To
- 09.2010
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68750
|
68750
68750-0H010 Hinge Assy, Rear Door, Upper RhREAR DOOR, UPPER RH [02.2005 - 12.2008] KGB10,WNB10..5D |
68750-0H010 |
from US $27.81 |
||
|
68760
|
68760
68760-0H010 Hinge Assy, Rear Door, Upper LhREAR DOOR, UPPER LH [02.2005 - 12.2008] KGB10,WNB10..5D |
68760-0H010 |
US $27.81 |
||
|
68770
|
68770
68770-0H010 Hinge Assy, Rear Door, Lower RhREAR DOOR, LOWER RH [02.2005 - 12.2008] KGB10,WNB10..5D |
68770-0H010 |
US $25.04 |
||
|
68780
|
68780
68780-0H010 Hinge Assy, Rear Door, Lower LhREAR DOOR, LOWER LH [02.2005 - 12.2008] KGB10,WNB10..5D |
68780-0H010 |
US $25.04 |
||
|
90105W0019
|
90105W0019
90105-W0019
New Genuine Part
|
90105-W0019 |
— | ||
|
90105W0051
|
90105W0051
90105-W0051
BOLT FLANGE
|
90105-W0051 |
— |
