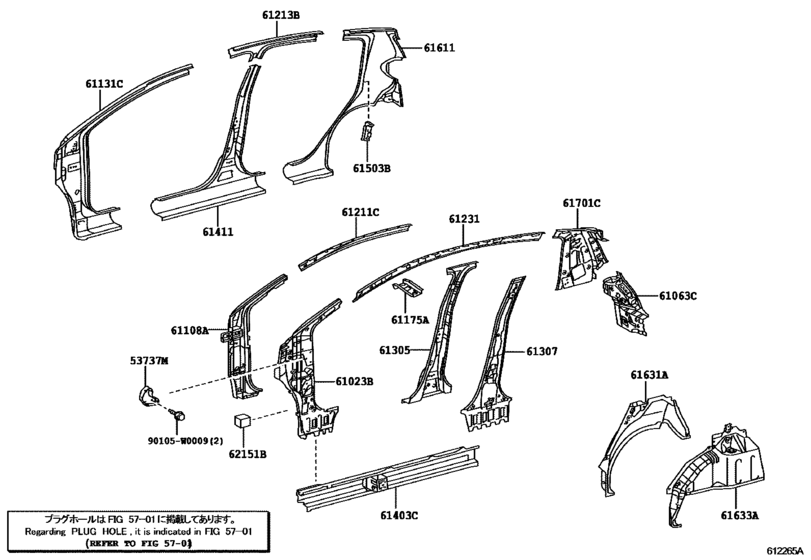

Side Member ([02.2005 - ] RH (0502- )5D) Diagram Toyota AYGO
- Year
- 2005 - 2010
- Sales region
- Europe
- Frame
- WNB10
- grade
- LV1
- ENGINE
- 2WZTV
- TRANSMISSION
- MTM
- From
- 05.2005
- To
- 09.2010
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53737M
|
53737M
53737-0H010
Plate, Front Apron To Cowl Side Member, Rh
[02.2005 - 12.2008] KGB10,WNB10 |
53737-0H010 |
— | ||
|
61023B
|
61023B
61023-0H010
Pillar Sub-Assy, Front Body, Inner Rh
[02.2005 - 12.2008] KGB10,WNB10 |
61023-0H010 |
— | ||
|
61063C
|
61063C
61063-0H010
Trough Sub-Assy, Luggage Door Opening, Front Rh
[02.2005 - 12.2008] KGB10,WNB10 |
61063-0H010 |
— | ||
|
61108A
|
61108A
61108-0H010
Reinforce Sub-Assy, Front Body Pillar, Lower Rh
[02.2005 - 12.2008] KGB10,WNB10 |
61108-0H010 |
— | ||
|
61131C
|
61131C
61131-0H030
Pillar, Front Body, Outer Rh
[02.2005 - 12.2008] KGB10,WNB10..5D |
61131-0H030 |
— | ||
|
61175A
|
61175A
61175-0H010
Reinforcement, Front Pillar, Upper Outer No.2 Rh
[02.2005 - 12.2008] KGB10,WNB10 |
61175-0H010 |
— | ||
|
61211C
|
61211C
61211-0H010
Rail, Roof Side, Rh
[02.2005 - 12.2008] KGB10,WNB10..5D |
61211-0H010 |
— | ||
|
61213B
|
61213B
61213-0H010
Rail, Roof Side, Outer No.2 Rh
[02.2005 - 12.2008] KGB10,WNB10..5D |
61213-0H010 |
— | ||
|
61231
|
61231
61231-0H050
Rail, Roof Side, Inner Rh
[02.2005 - 12.2008] KGB10,WNB10..5D |
61231-0H050 |
— | ||
|
61305
|
61305
61305-0H010
Reinforce Sub-Assy, Center Body Pillar, Lower Rh
[02.2005 - 12.2008] KGB10,WNB10..5D |
61305-0H010 |
— | ||
|
61307
|
61307
61307-0H010
Pillar Sub-Assy, Center Body, Inner Rh
[02.2005 - 12.2008] KGB10,WNB10..5D |
61307-0H010 |
— | ||
|
61403C
|
61403C
61403-0H010
Reinforce Sub-Assy, Rocker, Outer Rh
[02.2005 - 12.2008] KGB10,WNB10..5D |
61403-0H010 |
— | ||
|
61411
|
61411
61411-0H010
Panel, Rocker, Outer Rh
[02.2005 - 12.2008] KGB10,WNB10..5D |
61411-0H010 |
— | ||
|
61503B
|
61503B
61503-0H010
Reinforcement Sub-Assy, Quarter Lock Pillar, Rh
[02.2005 - 12.2008] KGB10,WNB10..5D |
61503-0H010 |
— | ||
|
61611
|
61611
61611-0H010
Panel, Quarter, Rh
[02.2005 - 12.2008] KGB10,WNB10..5D |
61611-0H010 |
— | ||
|
61631A
|
61631A
61631-0H010
Panel, Quarter Wheel House, Outer Rh
[02.2005 - 12.2008] KGB10,WNB10 |
61631-0H010 |
— | ||
|
61633A
|
61633A
61607-0H010
Panel, Quarter Wheel House, Inner Rh
[02.2005 - 12.2008] KGB10,WNB10 |
61607-0H010 |
— | ||
|
61701C
|
61701C
61701-0H010
Panel Sub-Assy, Roof Side, Outer Rh
[02.2005 - 12.2008] KGB10,WNB10..5D |
61701-0H010 |
— | ||
|
62151B
|
62151B
62151-0H010
Pad, Cowl Side Silencer
[02.2005 - 12.2008] KGB10,WNB10 |
62151-0H010 |
— | ||
|
90105W0009
|
90105W0009
90105-W0009
New Genuine Part
|
90105-W0009 |
— |
