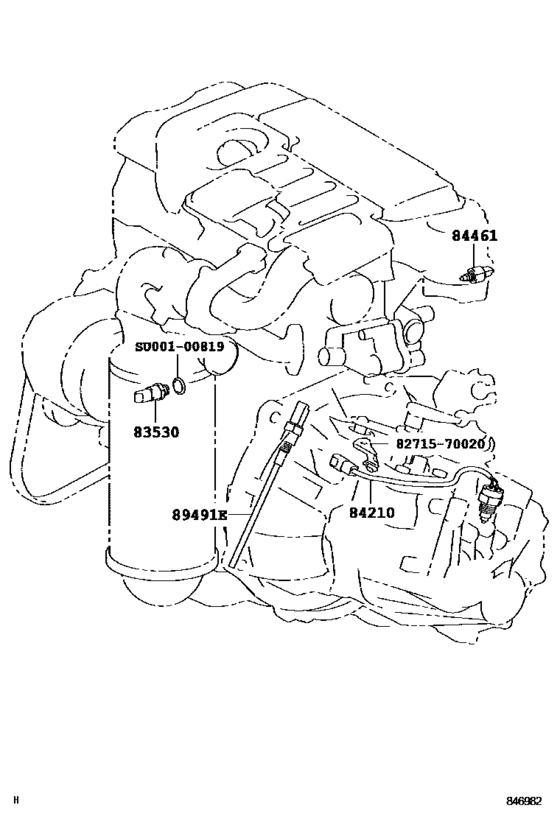

Switch & Relay & Computer ([02.2005 - ] ENGINE & TRANSMISSION (0502- )WNB10) Diagram Toyota AYGO
- Year
- 2005 - 2010
- Sales region
- Europe
- Frame
- WNB10
- grade
- LV1
- ENGINE
- 2WZTV
- TRANSMISSION
- MTM
- From
- 05.2005
- To
- 09.2010
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
SU001-00591
Switch Assy, Oil Pressure (For Engine)
[05.2005 - 12.2008] WNB10 |
SU001-00591 |
— | ||
|
84210
|
84210
84210-52021
Switch Assy, Back-Up Lamp
[03.2005 - 12.2008] KGB10; WNB10 |
84210-52021 |
— | ||
|
84461
|
84461
84461-YV010
Switch, Level Warning
[05.2005 - 12.2008] WNB10..LHD |
84461-YV010 |
— | ||
|
89491E
|
89491E
SU001-00723
Sensor, Engine Oil Level & Temperature
[05.2005 - 12.2008] WNB10 |
SU001-00723 |
— | ||
|
8271570020
|
8271570020
82715-70020
Bracket,wiring Harness Clamp
|
82715-70020 |
— | ||
|
SU00100819
|
SU00100819
SU001-00819
New Genuine Part
|
SU001-00819 |
— |
