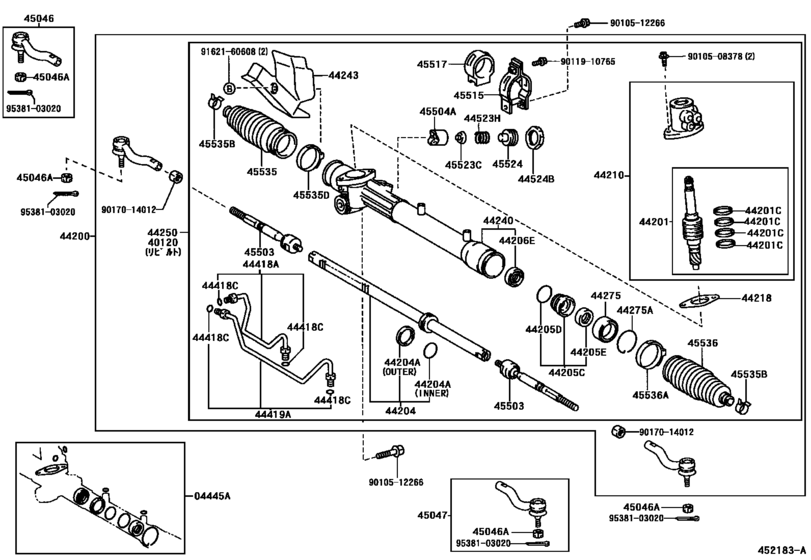

Front Steering Gear & Link ([01.2000 - 08.2002] (0001-0208)NCP35) Diagram Toyota BB
- Year
- 2000 - 2005
- Sales region
- Japan
- Frame
- NCP35
- grade
- Z
- ENGINE
- 1NZFE
- Model
- BB
- From
- 01.2000
- To
- 12.2005
- Vehicle Model
- BB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04445A
|
04445A
04445-52010 Gasket Kit, Power Steering Gear(For Rack & Pinion)[01.2000 - 08.2002] NCP35 |
04445-52010 |
US $80.72 |
||
|
40120
|
40120
40120-52090 Gear Assy,power Steering,rebuilt[01.2000 - 08.2002] NCP35 ＫＯＹＯ |
40120-52090 |
US $960.96 |
||
|
44200
|
44200
44200-52120 Link Assy, Power Steering[01.2000 - 08.2002] NCP35 |
44200-52120 |
US $1,453.09 |
||
| replacements | |||||
|
44200
|
44200
44250-52090 Gear Assy, Power Steering(For Rack & Pinion)[01.2000 - 08.2002] NCP35 |
44250-52090 |
US $1,371.55 |
||
|
44200
|
44200
45046-19175 End Sub-Assy, Tie Rod[01.2000 - 08.2002] NCP35 |
45046-19175 |
from US $46.06 |
||
|
44200
|
44200
90170-14012 Nut, Rack End Lock[01.2000 - 08.2002] NCP35 |
90170-14012 |
from US $1.13 |
||
|
44201
|
44201
44201-52080 Valve Sub-Assy, Power Steering Control[01.2000 - 08.2002] NCP35 |
44201-52080 |
US $294.11 |
||
|
44201C
|
44201C
90560-33003 Spacer(For Power Steering Control Valve)[01.2000 - 08.2002] NCP35 |
90560-33003 |
from US $1.40 |
||
|
44204
|
44204
44204-52070 Rack Sub-Assy, Power Steering[01.2000 - 08.2002] NCP35 |
44204-52070 |
US $189.28 |
||
|
44204A
|
44204A
90301-29005 Ring(For Rack Steering Piston)[01.2000 - 08.2002] NCP35 内側 |
90301-29005 |
US $2.91 |
||
|
44204A
|
44204A
90562-34002 Ring(For Rack Steering Piston)[01.2000 - 08.2002] NCP35 外側 |
90562-34002 |
US $13.83 |
||
|
44205C
|
44205C
44205-52010 Bush Sub-Assy, Power Steering Rack[01.2000 - 08.2002] NCP35 |
44205-52010 |
US $26.21 |
||
|
44205D
|
44205D
90301-33004 Ring, O(For Cylinder End Stopper)[01.2000 - 08.2002] NCP35 |
90301-33004 |
US $9.43 |
||
|
44205E
|
44205E
90311-22019 Seal, Oil(For Power Steering Rack Bush)[01.2000 - 08.2002] NCP35 |
90311-22019 |
from US $1.92 |
||
|
44206E
|
44206E
90311-22020 Seal, Oil, No.1(For Power Steering Cylinder Tube)[01.2000 - 08.2002] NCP35 |
90311-22020 |
from US $2.91 |
||
|
44210
|
44210
44210-52080 Valve Assy, Power Steering Control[01.2000 - 08.2002] NCP35 |
44210-52080 |
US $563.47 |
||
|
44218
|
44218
44218-52010
Gasket, Valve Housing
[01.2000 - 08.2002] NCP35 |
44218-52010 |
— | ||
|
44240
|
44240
44240-52020 Housing Assy, Power Steering Rack[01.2000 - 08.2002] NCP35 |
44240-52020 |
US $281.01 |
||
|
44243
|
44243
44243-52020 Insulator, Power Steering Rack Housing Heat[01.2000 - 08.2002] NCP35 |
44243-52020 |
US $13.25 |
||
|
44250
|
44250
44250-52090 Gear Assy, Power Steering(For Rack & Pinion)[01.2000 - 08.2002] NCP35 |
44250-52090 |
US $1,371.55 |
||
|
44275
|
44275
44275-52010 Stopper, Cylinder End[01.2000 - 08.2002] NCP35 |
44275-52010 |
US $13.98 |
||
|
44275A
|
44275A
90521-52005 Ring, Hole Snap(For Cylinder End Stopper)[01.2000 - 08.2002] NCP35 |
90521-52005 |
US $1.89 |
||
|
44418A
|
44418A
44418-52020 Tube, Steering Right Turn Pressure[01.2000 - 08.2002] NCP35 |
44418-52020 |
US $10.77 |
||
|
44418C
|
44418C
90301-03001 Seat, Union(For Steering Turn Pressure Tube)[01.2000 - 08.2002] NCP35 |
90301-03001 |
US $2.88 |
||
| replacement | |||||
|
44418C
|
44418C
90080-30023 Ring, O(For Steering Turn Pressure Tube)[01.2000 - 08.2002] NCP35 |
90080-30023 |
US $6.41 |
||
|
44419A
|
44419A
44419-52020 Tube, Steering Left Turn Pressure[01.2000 - 08.2002] NCP35 |
44419-52020 |
US $11.65 |
||
|
44523H
|
44523H
90501-29047 Spring(For Power Steering Rack Guide)[01.2000 - 08.2002] NCP35 |
90501-29047 |
US $1.46 |
||
|
44524B
|
44524B
90179-30002 Nut(For Power Steering Rack Guide Cap)[01.2000 - 08.2002] NCP35 |
90179-30002 |
US $2.62 |
||
|
45046
|
45046
45046-19175 End Sub-Assy, Tie Rod[01.2000 - 08.2002] NCP3# |
45046-19175 |
from US $46.06 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[01.2000 - 08.2002] NCP3# |
90171-12028 |
from US $1.42 |
||
|
45047
|
45047
45046-19175 End Sub-Assy, Tie Rod[01.2000 - 08.2002] NCP3# |
45046-19175 |
from US $46.06 |
||
|
45503
|
45503
45503-59055 End Sub-Assy, Steering Rack[01.2000 - 08.2002] NCP3# |
45503-59055 |
from US $105.08 |
||
|
45504A
|
45504A
45504-16060 Guide Sub-Assy, Rack[01.2000 - 08.2002] NCP35 |
45504-16060 |
from US $12.23 |
||
|
45515
|
45515
45515-52020 Bracket, Steering Rack Housing, No.2[01.2000 - 08.2002] NCP35 |
45515-52020 |
US $11.07 |
||
|
45517
|
45517
45517-52030 Grommet, Steering Rack Housing, No.2[01.2000 - 08.2002] NCP35 |
45517-52030 |
US $10.48 |
||
|
45523C
|
45523C
45542-12010
Spacer(For Rack Guide)
[01.2000 - 08.2002] NCP35 |
45542-12010 |
— | ||
|
45524
|
45524
45524-16050 Cap, Steering Rack Guide Spring[01.2000 - 08.2002] NCP35 |
45524-16050 |
US $29.56 |
||
|
45535
|
45535
45535-52060 Boot, Steering Rack, No.1[01.2000 - 08.2002] NCP35 |
45535-52060 |
from US $9.89 |
||
|
45535B
|
45535B
90467-19017
Clip(For Steering Rack Boot)
[01.2000 - 04.2002] NCP35 |
90467-19017 |
— | ||
| replacement | |||||
|
45535B
|
45535B
90467-19021 Clamp Or Clip, Hose(For Water By-Pass Hose)[01.2000 - 04.2002] NCP35 |
90467-19021 |
from US $1.54 |
||
|
45535B
|
45535B
90467-19021 Clamp Or Clip, Hose(For Water By-Pass Hose)[04.2002 - 08.2002] NCP35 |
90467-19021 |
from US $1.54 |
||
|
45535D
|
45535D
90460-58008 Clamp(For Steering Rack Boot)[01.2000 - 08.2002] NCP35 |
90460-58008 |
US $6.24 |
||
|
45536
|
45536
45535-52060 Boot, Steering Rack, No.1[01.2000 - 08.2002] NCP35 |
45535-52060 |
from US $9.89 |
||
|
45536A
|
45536A
90460-58008 Clamp(For Steering Rack Boot)[01.2000 - 08.2002] NCP35 |
90460-58008 |
US $6.24 |
||
|
9010508378
|
9010508378
90105-08378 New Genuine Part |
90105-08378 |
US $1.46 |
||
|
9010512266
|
9010512266
90105-12266 BOLT WASHER BASED |
90105-12266 |
US $6.24 |
||
|
9011910765
|
9011910765
90119-10765 BOLT WWASHER |
90119-10765 |
from US $1.21 |
||
|
9017014012
|
9017014012
90170-14012 Nut, Rack End Lock |
90170-14012 |
from US $1.13 |
||
|
9162160608
|
9162160608
91621-60608 New Genuine Part |
91621-60608 |
US $4.22 |
||
| replacement | |||||
|
9162160608
|
9162160608
91651-B0610 BOLTWWASHER |
91651-B0610 |
from US $1.92 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $1.44 |
||
