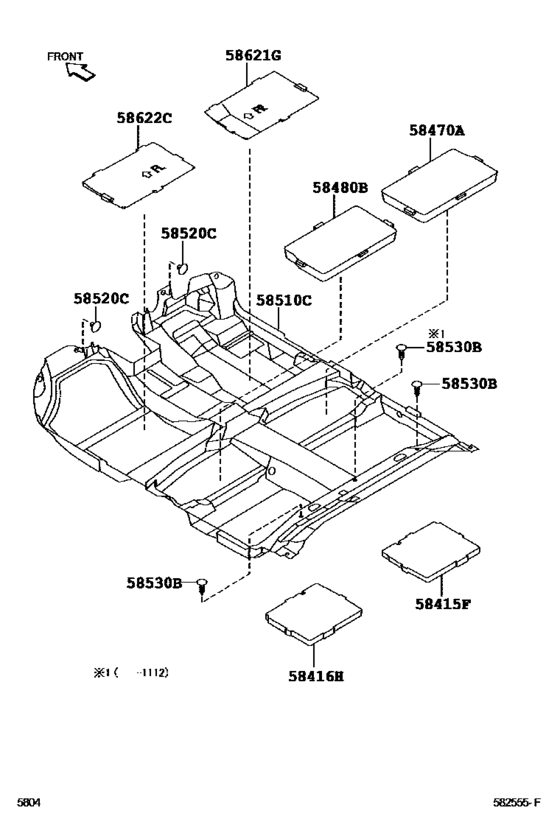

Mat & Carpet ([01.2006 - 12.2011] (0601-1112)) Diagram Toyota BB
- Year
- 2006 - 2016
- Sales region
- Japan
- Frame
- QNC20
- grade
- S
- ENGINE
- K3VE
- TRANSMISSION
- ATM
- Model
- BB
- From
- 01.2006
- To
- 07.2016
- Gear Shift Type
- 4HC
- Vehicle Model
- BB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58415F
|
58415F
58415-B1020 Board, Rear Floor, No.1[01.2006 - 09.2008] QNC2# 右側 |
58415-B1020 |
US $34.51 |
||
|
58416H
|
58416H
58416-B1020 Board, Rear Floor, No.2[01.2006 - 09.2008] QNC2# 左側 |
58416-B1020 |
US $34.51 |
||
|
58470A
|
58470A
58417-B1010 Board Assy, Rear Floor, No.1[01.2006 - 09.2008] QNC2# |
58417-B1010 |
US $25.19 |
||
|
58480B
|
58480B
58418-B1010 Board Assy, Rear Floor, No.2[01.2006 - 09.2008] QNC2# |
58418-B1010 |
US $25.19 |
||
|
58510C
|
58510C
58510-B1170-B0 Carpet Assy, Front Floor, Front[01.2006 - 09.2008] QNC2# GRAY,TRIM1# |
58510-B1170-B0 |
US $532.90 |
||
|
58510C
|
58510C
58510-B1180-B0 Carpet Assy, Front Floor, Front[01.2006 - 09.2008] QNC2# 寒冷地仕様,GRAY,TRIM1# |
58510-B1180-B0 |
US $532.90 |
||
|
58510C
|
58510C
58510-B1220-B0 Carpet Assy, Front Floor, Front[12.2011 - 02.2013] QNC20,21;QNC25..Z Jーペットフックナシ |
58510-B1220-B0 |
US $511.06 |
||
|
58510C
|
58510C
58510-B1221-B0 Carpet Assy, Front Floor, Front[02.2013 - 07.2016] QNC20,21;QNC25..Z |
58510-B1221-B0 |
US $439.71 |
||
|
58510C
|
58510C
58510-B1230-B0 Carpet Assy, Front Floor, Front[12.2011 - 02.2013] QNC20,21;QNC25..Z ｦ冷地仕様,GRAY,TRIM1#,フロアカーペットフックナシ |
58510-B1230-B0 |
US $511.06 |
||
|
58510C
|
58510C
58510-B1231-B0 Carpet Assy, Front Floor, Front[02.2013 - 07.2016] QNC20,21;QNC25..Z グレード パッケージ−煌（きらめき）Ｇパック＆COLD AREA SPEC.−寒冷地仕様,GRAY,TRI M1#,フロアカーペットフックアリ |
58510-B1231-B0 |
US $439.71 |
||
|
58510C
|
58510C
58510-B1430-B0 Carpet Assy, Front Floor, Front[09.2008 - 02.2013] QNC2# GRAY,TRIM1#,4#,フロアカーペットフックナシ |
58510-B1430-B0 |
US $484.85 |
||
|
58510C
|
58510C
58510-B1431-B0 Carpet Assy, Front Floor, Front[02.2013 - 07.2016] QNC2# GRAY,TRIM1#,フロアカーペットフックアリ |
58510-B1431-B0 |
US $439.71 |
||
|
58510C
|
58510C
58510-B1440-B0 Carpet Assy, Front Floor, Front[09.2008 - 02.2013] QNC2# COLD AREA SPEC.−寒冷地仕様,GRAY,TRIM1#,4#,フロアカーペットフックナシ |
58510-B1440-B0 |
US $484.85 |
||
|
58510C
|
58510C
58510-B1441-B0 Carpet Assy, Front Floor, Front[02.2013 - 07.2016] QNC2# COLD AREA SPEC.−寒冷地仕様,GRAY,TRIM1#,フロアカーペットフックアリ |
58510-B1441-B0 |
US $439.71 |
||
|
58520C
|
58520C
90044-67397 Clip[01.2006 - 09.2008] QNC2# |
90044-67397 |
US $2.10 |
||
|
58530B
|
58530B
90044-68046-B2 Clip, Rear Floor Board[04.2012 - 07.2016] QNC2# DK.GRAY |
90044-68046-B2 |
US $2.75 |
||
|
58530B
|
58530B
90044-68046-N1 Clip(For Front Floor Carpet)[12.2011 - 04.2012] QNC2# BLACK |
90044-68046-N1 |
US $2.75 |
||
|
58621G
|
58621G
58621-B1010 Pad, Front Floor Silencer, Rh[01.2006 - 09.2008] QNC2# |
58621-B1010 |
US $16.45 |
||
|
58622C
|
58622C
58622-B1010 Pad, Front Floor Silencer, Lh[01.2006 - 09.2008] QNC2# |
58622-B1010 |
US $16.45 |
