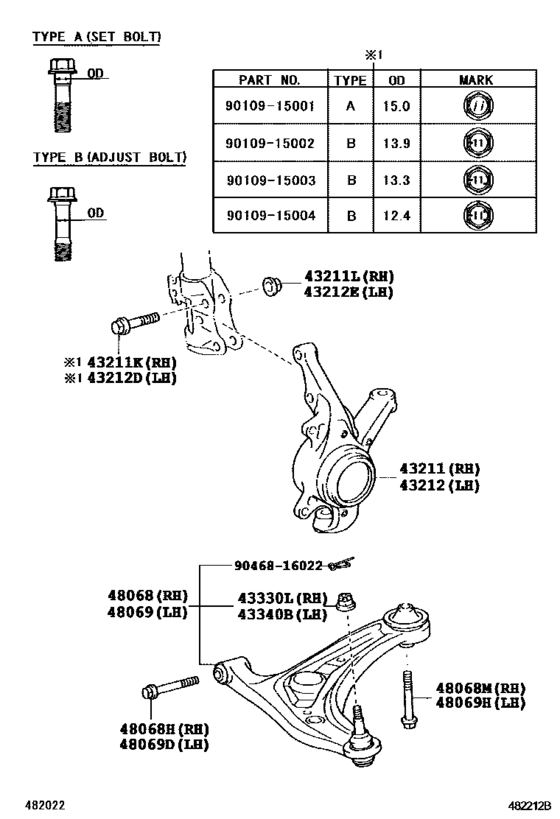

Front Axle Arm & Steering Knuckle ([11.2005 - ] (0511- )) Diagram Toyota BELTA
- Year
- 2005 - 2012
- Sales region
- Japan
- Frame
- NCP96
- grade
- G
- ENGINE
- 2NZFE
- TRANSMISSION
- ATM
- From
- 11.2005
- To
- 06.2012
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43211
|
43211
43211-52050 Knuckle, Steering, Rh[11.2005 - 08.2008] KSP92,NCP96,SCP92 |
43211-52050 |
from US $161.28 |
||
|
43211K
|
43211K
90109-15001 Bolt (For Rear Axle Carrier)[11.2005 - 08.2008] KSP92,NCP96,SCP92 外径＝１５,ＴＹＰＥ Ａ：イラスト参照 |
90109-15001 |
US $4.32 |
||
|
43211K
|
43211K
90109-15002 Bolt (For Steering Knuckle Rh)[11.2005 - 08.2008] KSP92,NCP96,SCP92 外径＝１３．９,ＴＹＰＥ Ｂ：イラスト参照 |
90109-15002 |
US $3.84 |
||
|
43211K
|
43211K
90109-15003 Bolt (For Steering Knuckle Rh)[11.2005 - 08.2008] KSP92,NCP96,SCP92 外径＝１３．３,ＴＹＰＥ Ｂ：イラスト参照 |
90109-15003 |
US $3.84 |
||
|
43211K
|
43211K
90109-15004 Bolt (For Steering Knuckle Rh)[11.2005 - 08.2008] KSP92,NCP96,SCP92 外径＝１２．４,ＴＹＰＥ Ｂ：イラスト参照 |
90109-15004 |
US $3.84 |
||
|
43211L
|
43211L
90179-15004 Nut (For Steering Knuckle Rh)[11.2005 - 08.2008] KSP92,NCP96,SCP92 |
90179-15004 |
from US $1.44 |
||
|
43212
|
43212
43212-52050 Knuckle, Steering, Lh[11.2005 - 08.2008] KSP92,NCP96,SCP92 |
43212-52050 |
from US $161.28 |
||
|
43212D
|
43212D
90109-15001 Bolt (For Rear Axle Carrier)[11.2005 - 08.2008] KSP92,NCP96,SCP92 外径＝１５,ＴＹＰＥ Ａ：イラスト参照 |
90109-15001 |
US $4.32 |
||
|
43212D
|
43212D
90109-15002 Bolt (For Steering Knuckle Rh)[11.2005 - 08.2008] KSP92,NCP96,SCP92 外径＝１３．９,ＴＹＰＥ Ｂ：イラスト参照 |
90109-15002 |
US $3.84 |
||
|
43212D
|
43212D
90109-15003 Bolt (For Steering Knuckle Rh)[11.2005 - 08.2008] KSP92,NCP96,SCP92 外径＝１３．３,ＴＹＰＥ Ｂ：イラスト参照 |
90109-15003 |
US $3.84 |
||
|
43212D
|
43212D
90109-15004 Bolt (For Steering Knuckle Rh)[11.2005 - 08.2008] KSP92,NCP96,SCP92 外径＝１２．４,ＴＹＰＥ Ｂ：イラスト参照 |
90109-15004 |
US $3.84 |
||
|
43212E
|
43212E
90179-15004 Nut (For Steering Knuckle Rh)[11.2005 - 08.2008] KSP92,NCP96,SCP92 |
90179-15004 |
from US $1.44 |
||
|
43330L
|
43330L
90171-12007 Nut, Castle (For Front Lower Ball Joint Setting)[11.2005 - 08.2008] KSP92,NCP96,SCP92 |
90171-12007 |
US $1.76 |
||
|
43340B
|
43340B
90171-12007 Nut, Castle (For Front Lower Ball Joint Setting)[11.2005 - 08.2008] KSP92,NCP96,SCP92 |
90171-12007 |
US $1.76 |
||
|
48068
|
48068
48068-59095
Arm Sub-Assy, Front Suspension, Lower No.1 Rh
[11.2005 - 08.2008] KSP92,NCP96,SCP92 |
48068-59095 |
— | ||
| replacement | |||||
|
48068
|
48068
48068-59145 Arm Sub-Assy, Front Suspension, Lower No.1 Rh[11.2005 - 08.2008] KSP92,NCP96,SCP92 |
48068-59145 |
from US $296.48 |
||
|
48068
|
48068
48068-59135
Arm Sub-Assy, Front Suspension, Lower No.1 Rh
[11.2008 - 09.2010] KSP92,NCP96,SCP92 |
48068-59135 |
— | ||
| replacement | |||||
|
48068
|
48068
48068-59145 Arm Sub-Assy, Front Suspension, Lower No.1 Rh[11.2008 - 09.2010] KSP92,NCP96,SCP92 |
48068-59145 |
from US $296.48 |
||
|
48068
|
48068
48068-59145 Arm Sub-Assy, Front Suspension, Lower No.1 Rh[10.2010 - 06.2012] KSP92,NCP96,SCP92 |
48068-59145 |
from US $296.48 |
||
|
48068H
|
48068H
90119-14086 Bolt(For Front Suspension Lower Arm No.1 Rh)[11.2005 - 08.2008] KSP92,NCP96,SCP92 |
90119-14086 |
from US $3.45 |
||
|
48068M
|
48068M
90119-14123 Bolt(For Front Suspension Lower Arm No.2 Rh)[11.2005 - 08.2008] NCP96 |
90119-14123 |
US $5.68 |
||
|
48068M
|
48068M
90119-14145 Bolt(For Front Suspension Lower Arm No.2 Rh)[08.2010 - 09.2010] NCP96 |
90119-14145 |
US $6.26 |
||
| replacement | |||||
|
48068M
|
48068M
90119-14152 Bolt(For Front Suspension Lower Arm No.2 Rh)[08.2010 - 09.2010] NCP96 |
90119-14152 |
US $6.88 |
||
|
48069
|
48069
48069-59095
Arm Sub-Assy, Front Suspension, Lower No.1 Lh
[11.2005 - 08.2008] KSP92,NCP96,SCP92 |
48069-59095 |
— | ||
| replacement | |||||
|
48069
|
48069
48069-59135 Arm Sub-Assy, Front Suspension, Lower No.1 Lh[11.2005 - 08.2008] KSP92,NCP96,SCP92 |
48069-59135 |
from US $306.60 |
||
|
48069
|
48069
48069-59125
Arm Sub-Assy, Front Suspension, Lower No.1 Lh
[11.2008 - 09.2010] KSP92,NCP96,SCP92 |
48069-59125 |
— | ||
| replacement | |||||
|
48069
|
48069
48069-59135 Arm Sub-Assy, Front Suspension, Lower No.1 Lh[11.2008 - 09.2010] KSP92,NCP96,SCP92 |
48069-59135 |
from US $306.60 |
||
|
48069
|
48069
48069-59135 Arm Sub-Assy, Front Suspension, Lower No.1 Lh[10.2010 - 06.2012] KSP92,NCP96,SCP92 |
48069-59135 |
from US $306.60 |
||
|
48069D
|
48069D
90119-14086 Bolt(For Front Suspension Lower Arm No.1 Rh)[11.2005 - 08.2008] KSP92,NCP96,SCP92 |
90119-14086 |
from US $3.45 |
||
|
48069H
|
48069H
90119-14123 Bolt(For Front Suspension Lower Arm No.2 Rh)[11.2005 - 08.2008] NCP96 |
90119-14123 |
US $5.68 |
||
|
48069H
|
48069H
90119-14145 Bolt(For Front Suspension Lower Arm No.2 Rh)[08.2010 - 09.2010] NCP96 |
90119-14145 |
US $6.26 |
||
| replacement | |||||
|
48069H
|
48069H
90119-14152 Bolt(For Front Suspension Lower Arm No.2 Rh)[08.2010 - 09.2010] NCP96 |
90119-14152 |
US $6.88 |
||
|
9046816022
|
9046816022
90468-16022 CLIP |
90468-16022 |
US $1.44 |
||
