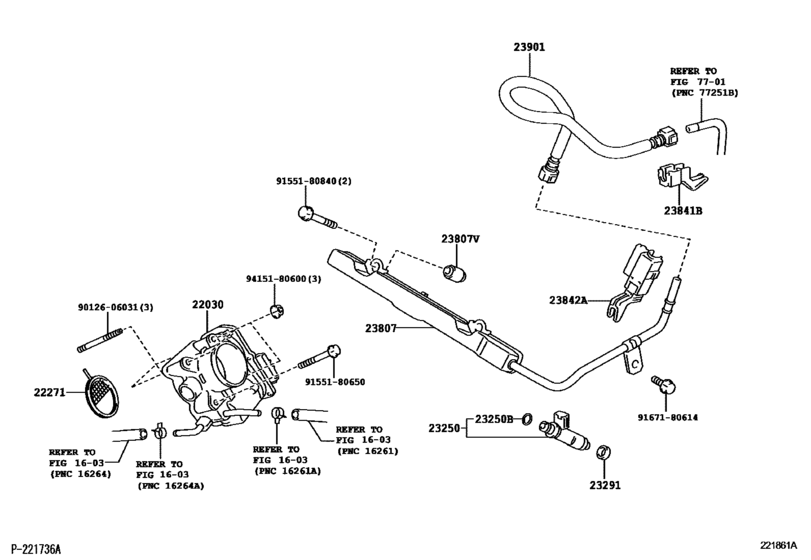

Fuel Injection System ([11.2005 - ] (0511- )2NZFE) Diagram Toyota BELTA
- Year
- 2005 - 2012
- Sales region
- Japan
- Frame
- NCP96
- grade
- G
- ENGINE
- 2NZFE
- TRANSMISSION
- ATM
- From
- 11.2005
- To
- 06.2012
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22030
|
22030
22030-21030 Body Assy, Throttle W/motor[11.2005 - 08.2008] 2NZFE..NCP96 |
22030-21030 |
US $737.80 |
||
|
22271
|
22271
22271-21060 Gasket, Throttle Body[11.2005 - 08.2008] 2NZFE..NCP96 |
22271-21060 |
US $5.44 |
||
|
23250
|
23250
23209-21040
Injector Assy, Fuel
[11.2005 - 08.2008] 2NZFE..NCP96 |
23209-21040 |
— | ||
| replacement | |||||
|
23250
|
23250
23209-21120 Injector Assy, Fuel[11.2005 - 08.2008] 2NZFE..NCP96 |
23209-21120 |
from US $179.28 |
||
|
23250B
|
23250B
90301-07024 Ring, O(For Fuel Injector)[11.2005 - 07.2006] 2NZFE..NCP96; 2SZFE..SCP92 |
90301-07024 |
from US $2.91 |
||
|
23250B
|
23250B
90301-07037 Ring, O(For Fuel Injector)[07.2006 - 08.2008] 2NZFE..NCP96; 2SZFE..SCP92 |
90301-07037 |
from US $2.24 |
||
|
23291
|
23291
23291-23010 Insulator, Injector Vibration[07.2011 - 06.2012] 2NZFE..NCP96 |
23291-23010 |
from US $2.73 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[11.2005 - 08.2008] 2NZFE..NCP96 |
23291-41010 |
from US $2.98 |
||
|
23807
|
23807
23807-21050 Pipe Sub-Assy, Fuel Delivery[11.2005 - 12.2006] 2NZFE..NCP96 |
23807-21050 |
US $117.94 |
||
| replacement | |||||
|
23807
|
23807
23807-21090 Pipe Sub-Assy, Fuel Delivery[11.2005 - 12.2006] 2NZFE..NCP96 |
23807-21090 |
US $115.02 |
||
|
23807
|
23807
23807-21051 Pipe Sub-Assy, Fuel Delivery[12.2006 - 08.2008] 2NZFE..NCP96 |
23807-21051 |
US $96.10 |
||
| replacement | |||||
|
23807
|
23807
23807-21090 Pipe Sub-Assy, Fuel Delivery[12.2006 - 08.2008] 2NZFE..NCP96 |
23807-21090 |
US $115.02 |
||
|
23807V
|
23807V
23891-21010 Spacer, No.1(For Delivery Pipe)[11.2005 - 08.2008] 2NZFE..NCP96 |
23891-21010 |
US $3.84 |
||
|
23841B
|
23841B
23841-21050 Clamp, Fuel Pipe, No.1(For Efi)[06.2006 - 08.2008] 2NZFE..NCP96; 1KRFE..KSP92 |
23841-21050 |
US $3.52 |
||
|
23841B
|
23841B
23841-28010
Clamp, Fuel Pipe, No.1(For Efi)
[11.2005 - 05.2006] 2NZFE..NCP96; 1KRFE..KSP92 |
23841-28010 |
— | ||
| replacement | |||||
|
23841B
|
23841B
23841-21050 Clamp, Fuel Pipe, No.1(For Efi)[11.2005 - 05.2006] 2NZFE..NCP96; 1KRFE..KSP92 |
23841-21050 |
US $3.52 |
||
|
23842A
|
23842A
23841-21040 Clamp, Fuel Pipe, No.1(For Efi)[06.2009 - 06.2012] 2NZFE..NCP96 |
23841-21040 |
US $13.54 |
||
|
23842A
|
23842A
23842-21010 Clamp, Fuel Pipe, No.2(For Efi)[11.2005 - 08.2008] 2NZFE..NCP96 |
23842-21010 |
US $13.10 |
||
|
23901
|
23901
23901-21110 Tube Sub-Assy, Fuel[11.2005 - 08.2008] 2NZFE..NCP96 |
23901-21110 |
US $65.36 |
||
|
9012606031
|
9012606031
90126-06031 Stud, Bolt |
90126-06031 |
US $0.70 |
||
|
9155180650
|
9155180650
91551-80650 BOLT FLANGE |
91551-80650 |
US $1.28 |
||
|
9155180840
|
9155180840
91551-80840 Bolt(For Head To Camshaft Bearing Cap) |
91551-80840 |
from US $1.23 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.68 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.74 |
||
