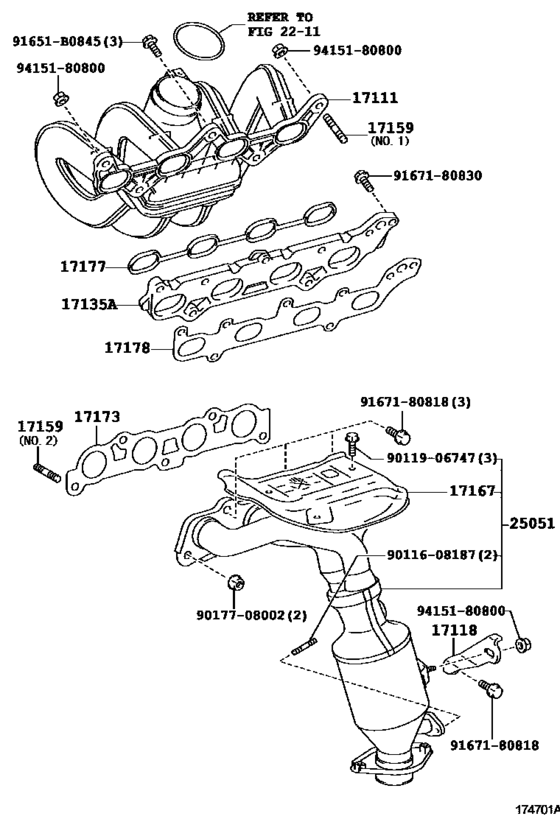

Manifold ([11.2005 - ] (0511- )2SZFE) Diagram Toyota BELTA
- Year
- 2005 - 2012
- Sales region
- Japan
- Frame
- SCP92
- grade
- G
- ENGINE
- 2SZFE
- TRANSMISSION
- ATM
- From
- 11.2005
- To
- 06.2012
- Gear Shift Type
- CVFC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17101-23030 Manifold, Intake[11.2005 - 08.2008] 2SZFE..SCP92 |
17101-23030 |
US $196.56 |
||
|
17118
|
17118
17118-23050 Stay, Manifold[11.2005 - 08.2008] 2SZFE..SCP92 |
17118-23050 |
US $13.10 |
||
|
17118
|
17118
17118-23080 Stay, Manifold[07.2010 - 06.2012] 2SZFE..SCP92 |
17118-23080 |
US $13.10 |
||
|
17135A
|
17135A
17135-23020 Insulator, Intake Manifold, No.1[11.2005 - 08.2008] 2SZFE..SCP92 |
17135-23020 |
US $110.66 |
||
|
17159
|
17159
90116-08387 Bolt, Stud(For Manifold To Cylinder Head)[11.2005 - 08.2008] 2SZFE..SCP92 ＮＯ．１ |
90116-08387 |
US $1.75 |
||
|
17159
|
17159
90116-08395 Bolt, Stud(For Manifold To Cylinder Head)[11.2005 - 08.2008] 2SZFE..SCP92 ＮＯ．２ |
90116-08395 |
US $0.96 |
||
|
17167
|
17167
17167-23030 Insulator, Exhaust Manifold Heat, No.1[11.2005 - 08.2008] 2SZFE..SCP92 |
17167-23030 |
US $23.44 |
||
|
17173
|
17173
17173-23010 Gasket, Exhaust Manifold To Head[11.2005 - 08.2008] 2SZFE..SCP92 |
17173-23010 |
from US $15.29 |
||
|
17177
|
17177
17177-23010 Gasket, Intake Manifold To Head, No.1[11.2005 - 08.2008] 2SZFE..SCP92 |
17177-23010 |
from US $19.32 |
||
|
17178
|
17178
17178-23020 Gasket, Intake Manifold To Head, No.2[11.2005 - 08.2008] 2SZFE..SCP92 |
17178-23020 |
US $15.04 |
||
|
25051
|
25051
25051-23040 Converter Sub-Assy, Exhaust Manifold[11.2005 - 08.2008] 2SZFE..SCP92 |
25051-23040 |
US $576.58 |
||
|
25051
|
25051
25051-23050 Converter Sub-Assy, Exhaust Manifold[07.2010 - 06.2012] 2SZFE..SCP92 |
25051-23050 |
US $678.50 |
||
|
91651B0845
|
91651B0845
91651-B0845 Bolt, Flange (For Idler) |
91651-B0845 |
US $1.60 |
||
|
9011608187
|
9011608187
90116-08187 Bolt, Stud(For Oxygen Sensor) |
90116-08187 |
US $3.04 |
||
|
9011906747
|
9011906747
90119-06747 BOLT WWASHER |
90119-06747 |
US $5.12 |
||
|
9017708002
|
9017708002
90177-08002 New Genuine Part |
90177-08002 |
US $1.46 |
||
|
9167180818
|
9167180818
91671-80818 BOLT FLANGE |
91671-80818 |
from US $0.88 |
||
|
9167180830
|
9167180830
91671-80830 BOLT FLANGE |
91671-80830 |
US $1.28 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
