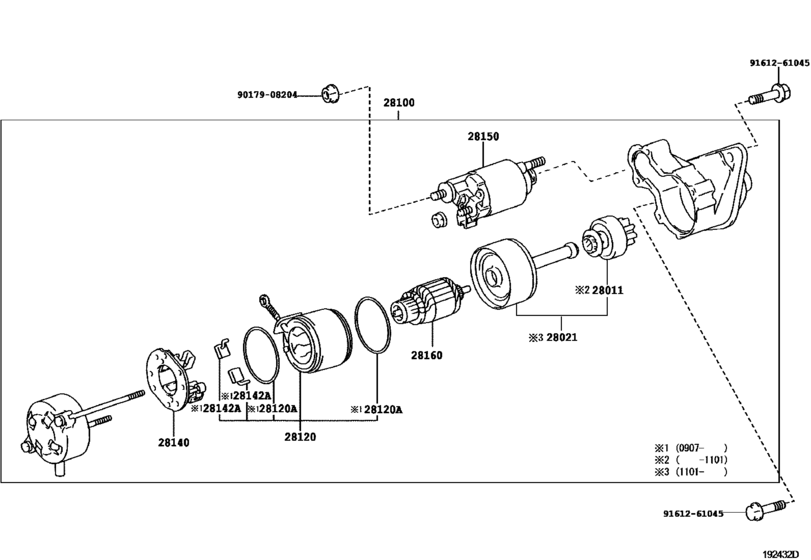

Starter ([11.2005 - ] 12V 0.8KW, 12V 1.0KW (0511- )2SZFE) Diagram Toyota BELTA
- Year
- 2005 - 2012
- Sales region
- Japan
- Frame
- SCP92
- grade
- G
- ENGINE
- 2SZFE
- TRANSMISSION
- ATM
- From
- 11.2005
- To
- 06.2012
- Gear Shift Type
- CVFC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-23030 Clutch Sub-Assy, Starter[11.2005 - 08.2008] 2SZFE..SCP92; 1KRFE..KSP92 寒冷地仕様 |
28011-23030 |
US $82.99 |
||
|
28021
|
28021
28021-23030
Clutch Sub-Assy, Starter Center Bearing
[01.2011 - 06.2012] 2SZFE..SCP92; 1KRFE..KSP92 寒冷地仕様 |
28021-23030 |
— | ||
|
28100
|
28100
28100-23030 Starter Assy[11.2005 - 08.2008] 2SZFE..SCP92 １２Ｖ １．０ＫＷ,寒冷地仕様 |
28100-23030 |
US $908.54 |
||
| replacement | |||||
|
28100
|
28100
28100-23031 Starter Assy[11.2005 - 08.2008] 2SZFE..SCP92 １２Ｖ １．０ＫＷ,寒冷地仕様 |
28100-23031 |
US $908.54 |
||
|
28100
|
28100
28100-23031 Starter Assy[07.2009 - 06.2012] 2SZFE..SCP92 １２Ｖ １．０ＫＷ,寒冷地仕様 |
28100-23031 |
US $908.54 |
||
|
28100
|
28100
28100-23060 Starter Assy[11.2005 - 08.2008] 2SZFE..SCP92 １２Ｖ ０．８ＫＷ |
28100-23060 |
US $749.84 |
||
| replacement | |||||
|
28100
|
28100
28100-23061 Starter Assy[11.2005 - 08.2008] 2SZFE..SCP92 １２Ｖ ０．８ＫＷ |
28100-23061 |
US $749.84 |
||
|
28100
|
28100
28100-23061 Starter Assy[07.2009 - 06.2012] 2SZFE..SCP92 １２Ｖ ０．８ＫＷ |
28100-23061 |
US $749.84 |
||
|
28120
|
28120
28120-40130
Yoke Assy, Starter
[07.2009 - 06.2012] 2NZFE,2SZFE..NCP96,SCP92 寒冷地仕様 |
28120-40130 |
— | ||
|
28120
|
28120
28120-47120
Yoke Assy, Starter
[07.2009 - 06.2012] 2NZFE,2SZFE..NCP96,SCP92 |
28120-47120 |
— | ||
|
28120
|
28120
28120-70020 Yoke Assy, Starter[11.2005 - 08.2008] 2NZFE,2SZFE..NCP96,SCP92 |
28120-70020 |
from US $107.50 |
||
|
28120
|
28120
28120-70050
Yoke Assy, Starter
[11.2005 - 08.2008] 1KRFE,2NZFE,2SZFE..KSP92,NCP96,SCP92 寒冷地仕様 |
28120-70050 |
— | ||
|
28120A
|
28120A
90099-14092
Ring, O(For Starter Yoke)
[07.2009 - 06.2012] 2SZFE..SCP92 |
90099-14092 |
— | ||
|
28140
|
28140
28140-70020 Holder Assy, Starter Brush[11.2005 - 08.2008] 2NZFE,2SZFE..NCP96,SCP92; 1KRFE..KSP92 寒冷地仕様 |
28140-70020 |
from US $22.19 |
||
|
28142A
|
28142A
28142-70020 Brush, Starter[07.2009 - 06.2012] 2NZFE,2SZFE..NCP96,SCP92 |
28142-70020 |
from US $2.81 |
||
|
28150
|
28150
28150-16160 Switch Assy, Magnet Starter[11.2005 - 05.2007] 2NZFE,2SZFE..NCP96,SCP92; 1KRFE..KSP92 寒冷地仕様 |
28150-16160 |
US $125.22 |
||
|
28150
|
28150
28150-21020 Switch Assy, Magnet Starter[06.2007 - 08.2008] 2NZFE,2SZFE..NCP96,SCP92; 1KRFE..KSP92 寒冷地仕様 |
28150-21020 |
US $126.67 |
||
|
28160
|
28160
28160-70021 Armature Assy, Starter[11.2005 - 08.2008] 2NZFE,2SZFE..NCP96,SCP92 |
28160-70021 |
US $131.04 |
||
|
28160
|
28160
28160-70050 Armature Assy, Starter[11.2005 - 08.2008] 1KRFE,2NZFE,2SZFE..KSP92,NCP96,SCP92 寒冷地仕様 |
28160-70050 |
US $161.62 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
|
9161261045
|
9161261045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.21 |
||
