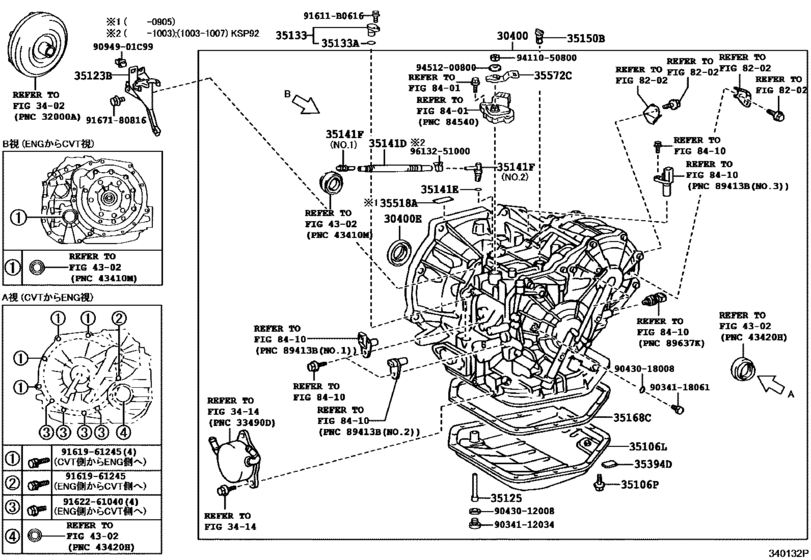

Transaxle Assy(Cvt) ([11.2005 - ] K410 (0511- )KSP92,SCP92) Diagram Toyota BELTA
- Year
- 2005 - 2012
- Sales region
- Japan
- Frame
- SCP92
- grade
- G
- ENGINE
- 2SZFE
- TRANSMISSION
- ATM
- From
- 11.2005
- To
- 06.2012
- Gear Shift Type
- CVFC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30400
|
30400
30400-52060 Transaxle Assy, Continuously Variable[11.2005 - 08.2008] SCP92 |
30400-52060 |
US $5,620.16 |
||
| replacement | |||||
|
30400
|
30400
30400-52061 Transaxle Assy, Continuously Variable[11.2005 - 08.2008] SCP92 |
30400-52061 |
US $5,620.16 |
||
|
30400
|
30400
30400-52061 Transaxle Assy, Continuously Variable[11.2011 - 06.2012] SCP92 Ｋ４１０ |
30400-52061 |
US $5,620.16 |
||
|
30400E
|
30400E
90311-42039 Seal, Type T Oil(For Cvt Oil Pump)TYPE T OIL(FOR CVT OIL PUMP) [11.2005 - 08.2008] KSP92,SCP92 |
90311-42039 |
from US $6.40 |
||
|
35106L
|
35106L
35106-52060
Pan Sub-Assy, Transaxle Oil(Cvt)
[11.2005 - 08.2008] KSP92,SCP92 |
35106-52060 |
— | ||
| replacement | |||||
|
35106L
|
35106L
35106-52061 Pan Sub-Assy, Transaxle Oil(Cvt)[11.2005 - 08.2008] KSP92,SCP92 |
35106-52061 |
US $56.54 |
||
|
35106P
|
35106P
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[11.2005 - 08.2008] KSP92,SCP92 |
90119-06173 |
from US $0.92 |
||
|
35123B
|
35123B
35123-52011 Skirt,transmission Breather[11.2005 - 08.2008] KSP92,SCP92 |
35123-52011 |
US $11.07 |
||
|
35125
|
35125
35125-52130 Tube, Transmission Oil Filler, No.1[11.2005 - 08.2008] KSP92,SCP92 |
35125-52130 |
US $7.04 |
||
|
35133
|
35133
35133-52010 Plug, Transmission Oil Filler[11.2005 - 08.2008] KSP92,SCP92 |
35133-52010 |
US $6.56 |
||
|
35133A
|
35133A
90301-11001 Ring, O (For Transmission Oil Filler Plug)[11.2005 - 08.2008] KSP92,SCP92 |
90301-11001 |
US $2.56 |
||
|
35141D
|
35141D
90447-11055 Hose(For Breather Plug)[11.2005 - 08.2008] KSP92,SCP92 |
90447-11055 |
US $6.99 |
||
|
35141E
|
35141E
90301-08015 Ring, O (For Breather Plug)[11.2005 - 08.2008] KSP92,SCP92 |
90301-08015 |
from US $2.24 |
||
|
35141F
|
35141F
90930-03149 Plug Sub-Assy, Breather(For Transmission)[11.2005 - 08.2008] KSP92,SCP92 ＮＯ．１ |
90930-03149 |
from US $3.52 |
||
|
35141F
|
35141F
90930-03156 Plug, Breather, No.1 (Atm)[11.2005 - 08.2008] KSP92,SCP92 ＮＯ．２ |
90930-03156 |
US $3.67 |
||
|
35150B
|
35150B
35150-44010 Plug(For Transmission Case)[11.2005 - 08.2008] KSP92,SCP92 |
35150-44010 |
from US $5.44 |
||
|
35168C
|
35168C
35168-52040 Gasket, Transaxle Oil Pan(Cvt)[11.2005 - 08.2008] KSP92,SCP92 |
35168-52040 |
US $21.58 |
||
|
35394D
|
35394D
35394-48010 Magnet, Oil Cleaner (For Transmission)[11.2005 - 08.2008] KSP92,SCP92 |
35394-48010 |
US $4.48 |
||
|
35518A
|
35518A
35518-63010 Label, Automatic Transaxle Information, No.2[11.2005 - 08.2008] KSP92,SCP92 |
35518-63010 |
US $2.33 |
||
|
35572C
|
35572C
35572-52070 Lever, Transmission Control Shaft[11.2005 - 08.2008] KSP92,SCP92 |
35572-52070 |
US $8.30 |
||
|
91611B0616
|
91611B0616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $1.19 |
||
|
9094901C99
|
9094901C99
90949-01C99 Clip, Radiator Hose, No.5 |
90949-01C99 |
US $1.31 |
||
|
9034112034
|
9034112034
90341-12034 Plug Sub-Assy, Drain (Atm) |
90341-12034 |
from US $3.04 |
||
|
9034118061
|
9034118061
90341-18061 Plug, Hole (CVT TC) |
90341-18061 |
US $4.96 |
||
|
9043012008
|
9043012008
90430-12008 Gasket (For Shift Inter Lock Plate) |
90430-12008 |
from US $0.88 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9161961245
|
9161961245
91619-61245 Bolt(For Transaxle & Engine Setting) |
91619-61245 |
from US $1.92 |
||
|
9162261040
|
9162261040
91622-61040 Bolt(For Transaxle & Engine Setting) |
91622-61040 |
US $1.92 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.84 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.28 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
|
9613251000
|
9613251000
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.48 |
||
