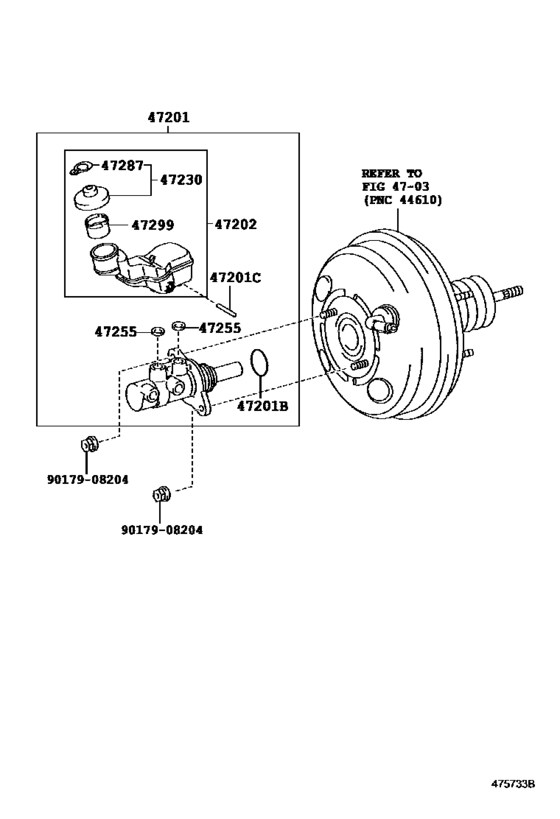

Brake Master Cylinder ([12.2006 - ] (0612- )) Diagram Toyota BLADE
- Year
- 2007 - 2012
- Sales region
- Japan
- Frame
- GRE156
- grade
- G
- ENGINE
- 2GRFE
- From
- 08.2007
- To
- 04.2012
- Gear Shift Type
- 6FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47201
|
47201
47201-12B00
Cylinder Sub-Assy, Brake Master
[12.2006 - 12.2009] AZE15#,GRE156 |
47201-12B00 |
— | ||
| replacement | |||||
|
47201
|
47201
47201-12B02 Cylinder Sub-Assy, Brake Master[12.2006 - 12.2009] AZE15#,GRE156 |
47201-12B02 |
US $377.40 |
||
|
47201
|
47201
47201-12B01 Cylinder Sub-Assy, Brake Master[03.2012 - 04.2012] AZE15#,GRE156 |
47201-12B01 |
US $323.23 |
||
| replacement | |||||
|
47201
|
47201
47201-12B02 Cylinder Sub-Assy, Brake Master[03.2012 - 04.2012] AZE15#,GRE156 |
47201-12B02 |
US $377.40 |
||
|
47201B
|
47201B
90015-AH002 Ring, O(For Brake Master Cylinder)[12.2006 - 12.2009] AZE15#,GRE156 |
90015-AH002 |
US $3.20 |
||
|
47201C
|
47201C
90029-15803 Ring Pin, Brake Master Cylinder[12.2006 - 12.2009] AZE15#,GRE156 |
90029-15803 |
US $1.05 |
||
|
47202
|
47202
47220-12220 Reservoir Sub-Assy, Brake Master Cylinder[12.2006 - 12.2009] AZE15#,GRE156 |
47220-12220 |
US $88.82 |
||
|
47230
|
47230
47230-20140 Cap Assy, Brake Master Cylinder Reservoir Filler[12.2006 - 12.2009] AZE15#,GRE156 |
47230-20140 |
from US $7.22 |
||
|
47255
|
47255
90029-48001 Grommet, Master Cylinder Reservoir[12.2006 - 12.2009] AZE15#,GRE156 |
90029-48001 |
US $5.76 |
||
|
47287
|
47287
47287-20010 Label, Brake Fluid Information[12.2006 - 12.2009] AZE15#,GRE156 |
47287-20010 |
US $2.08 |
||
|
47299
|
47299
47299-25010 Strainer, Master Cylinder Reservoir[12.2006 - 12.2009] AZE15#,GRE156 |
47299-25010 |
US $5.42 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
