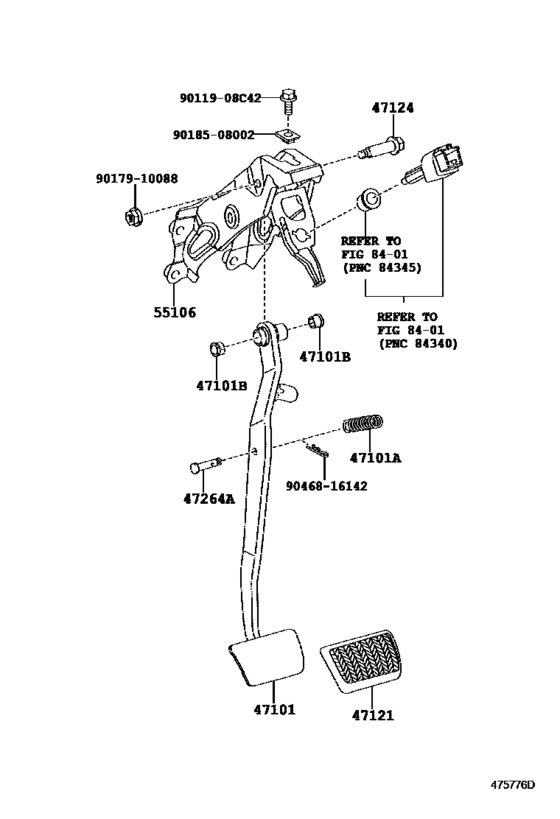

Brake Pedal & Bracket ([12.2006 - ] (0612- )) Diagram Toyota BLADE
- Year
- 2007 - 2012
- Sales region
- Japan
- Frame
- GRE156
- grade
- G
- ENGINE
- 2GRFE
- From
- 08.2007
- To
- 04.2012
- Gear Shift Type
- 6FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47101
|
47101
47101-12641 Pedal Sub-Assy, Brake[08.2007 - 12.2009] AZE15#,GRE156 |
47101-12641 |
US $24.32 |
||
|
47101A
|
47101A
90507-15005 Spring(For Brake Pedal Return)[12.2006 - 12.2009] AZE15#,GRE156 |
90507-15005 |
US $2.62 |
||
|
47101B
|
47101B
90386-13015 Bush(For Clutch Pedal)[12.2006 - 12.2009] GRE156 |
90386-13015 |
from US $0.72 |
||
|
47121
|
47121
47121-42010 Pad, Brake Pedal[12.2006 - 12.2009] GRE156 |
47121-42010 |
from US $4.35 |
||
|
47124
|
47124
90109-10174 Shaft, Clutch Pedal[12.2006 - 12.2009] GRE156 |
90109-10174 |
US $2.48 |
||
|
47264A
|
47264A
90249-08256 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)[12.2006 - 12.2009] AZE15#,GRE156 |
90249-08256 |
US $2.08 |
||
|
55106
|
55106
55106-12680 Support Sub-Assy, Brake Pedal[12.2006 - 12.2009] GRE156 |
55106-12680 |
US $28.54 |
||
|
9011908C42
|
9011908C42
90119-08C42 New Genuine Part |
90119-08C42 |
US $1.28 |
||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $1.07 |
||
|
9018508002
|
9018508002
90185-08002 New Genuine Part |
90185-08002 |
US $2.62 |
||
|
9046816142
|
9046816142
90468-16142 Clip(For Push Rod Clevis Pin) |
90468-16142 |
from US $0.88 |
