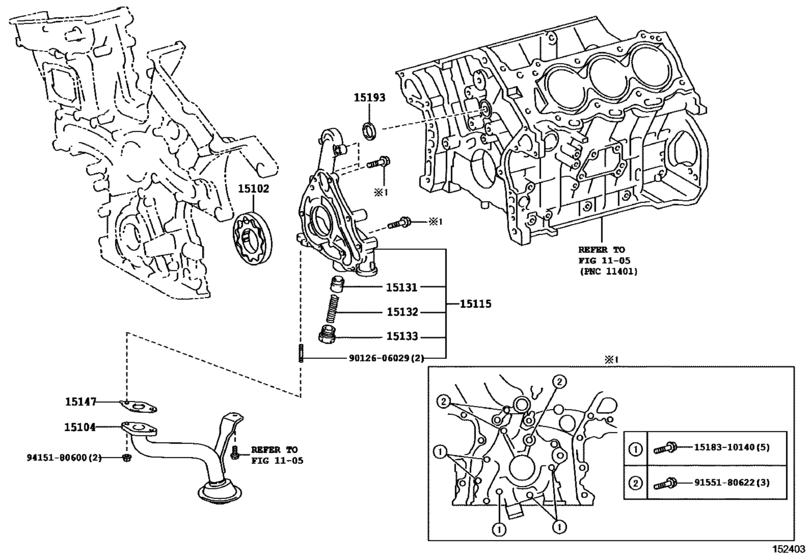

Engine Oil Pump ([08.2007 - ] (0708- )2GRFE) Diagram Toyota BLADE
- Year
- 2007 - 2012
- Sales region
- Japan
- Frame
- GRE156
- grade
- G
- ENGINE
- 2GRFE
- From
- 08.2007
- To
- 04.2012
- Gear Shift Type
- 6FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15102
|
15102
15103-31050 Rotor Set, Oil Pump[08.2007 - 12.2009] 2GRFE..GRE156 |
15103-31050 |
from US $36.62 |
||
|
15104
|
15104
15104-31120 Strainer Sub-Assy, Oil[08.2007 - 12.2009] 2GRFE..GRE156 |
15104-31120 |
from US $35.82 |
||
|
15115
|
15115
15115-31040 Cover, Oil Pump[08.2007 - 12.2009] 2GRFE..GRE156 |
15115-31040 |
from US $19.87 |
||
|
15131
|
15131
15131-17010 Valve, Oil Pump Relief[08.2007 - 12.2009] 2GRFE..GRE156 |
15131-17010 |
from US $3.55 |
||
|
15132
|
15132
15132-46020 Spring, Oil Pump Relief Valve[08.2007 - 12.2009] 2GRFE..GRE156 |
15132-46020 |
from US $1.48 |
||
|
15133
|
15133
15133-28020 Plug, Oil Pump Relief Valve[08.2007 - 12.2009] 2GRFE..GRE156 |
15133-28020 |
US $3.67 |
||
|
15147
|
15147
15147-31060 Gasket, Oil Strainer[08.2007 - 12.2009] 2GRFE..GRE156 |
15147-31060 |
from US $2.87 |
||
|
15193
|
15193
15193-31020 Gasket, Oil Pump[08.2007 - 12.2009] 2GRFE..GRE156 |
15193-31020 |
from US $2.30 |
||
|
1518310140
|
1518310140
15183-10140 Bolt, Union(For Oil Pump) |
15183-10140 |
US $2.62 |
||
|
9012606029
|
9012606029
90126-06029 Bolt, Stud(For Vacuum Transmitting Pipe) |
90126-06029 |
from US $0.68 |
||
| replacement | |||||
|
9012606029
|
9012606029
90126-A0014 Bolt, Stud(For Oil Strainer) |
90126-A0014 |
US $1.77 |
||
|
9155180622
|
9155180622
91551-80622 BOLT FLANGE |
91551-80622 |
US $0.96 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.70 |
||
