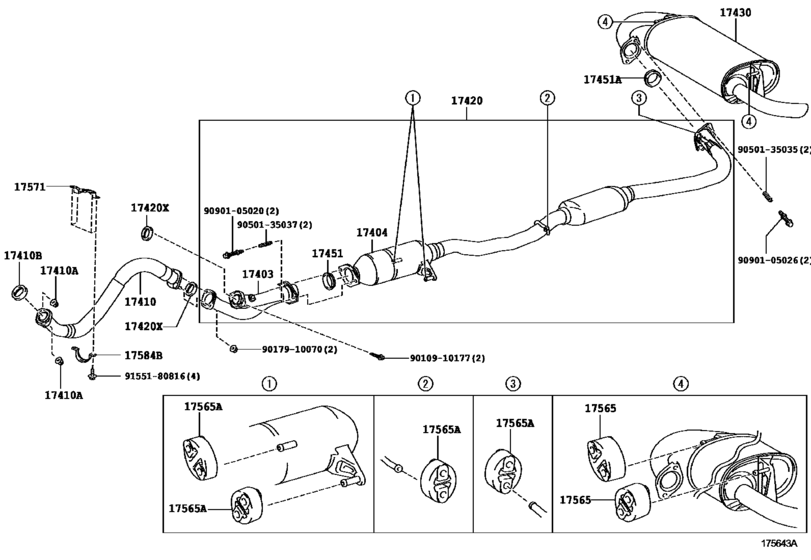

Exhaust Pipe ([08.2007 - ] (0708- )2GRFE) Diagram Toyota BLADE
- Year
- 2007 - 2012
- Sales region
- Japan
- Frame
- GRE156
- grade
- G
- ENGINE
- 2GRFE
- From
- 08.2007
- To
- 04.2012
- Gear Shift Type
- 6FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17403
|
17403
17403-31070 Pipe Sub-Assy, Exhaust, Front No.3[08.2007 - 12.2009] 2GRFE..GRE156 |
17403-31070 |
US $138.32 |
||
|
17404
|
17404
17404-31060 Pipe Sub-Assy, Exhaust Forked[08.2007 - 12.2009] 2GRFE..GRE156 |
17404-31060 |
US $1,378.83 |
||
|
17410
|
17410
17410-31690 Pipe Assy, Exhaust, Front[08.2007 - 12.2009] 2GRFE..GRE156 |
17410-31690 |
US $200.93 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[08.2007 - 12.2009] 2GRFE..GRE156 |
90179-10070 |
from US $1.46 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[08.2007 - 12.2009] 2GRFE..GRE156 |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06089 Gasket, Exhaust Pipe[08.2007 - 12.2009] 2GRFE..GRE156 |
90917-06089 |
from US $8 |
||
|
17420
|
17420
17420-31160 Pipe Assy, Exhaust, Center[08.2007 - 12.2009] 2GRFE..GRE156 |
17420-31160 |
US $1,587.04 |
||
|
17420X
|
17420X
90917-06089 Gasket, Exhaust Pipe[08.2007 - 12.2009] 2GRFE..GRE156 |
90917-06089 |
from US $8 |
||
|
17430
|
17430
17430-31570 Pipe Assy, Exhaust, Tail[08.2007 - 09.2009] 2GRFE..GRE156 |
17430-31570 |
US $519.79 |
||
| replacement | |||||
|
17430
|
17430
17430-31571 Pipe Assy, Exhaust, TailEXHAUST, TAIL [08.2007 - 09.2009] 2GRFE..GRE156 |
17430-31571 |
US $519.79 |
||
|
17430
|
17430
17430-31571 Pipe Assy, Exhaust, TailEXHAUST, TAIL [10.2009 - 12.2009] 2GRFE..GRE156 |
17430-31571 |
US $519.79 |
||
|
17451
|
17451
17451-28040
Gasket, Exhaust Pipe
[08.2007 - 12.2009] 2GRFE..GRE156 |
17451-28040 |
— | ||
| replacement | |||||
|
17451
|
17451
17451-28041 Gasket, Exhaust Pipe[08.2007 - 12.2009] 2GRFE..GRE156 |
17451-28041 |
from US $20.14 |
||
|
17451A
|
17451A
17451-31010 Gasket, Exhaust Pipe[08.2007 - 06.2008] 2GRFE..GRE156 |
17451-31010 |
US $29.27 |
||
| replacement | |||||
|
17451A
|
17451A
17451-31012 Gasket, Exhaust Pipe, Center[08.2007 - 06.2008] 2GRFE..GRE156 |
17451-31012 |
from US $20.67 |
||
|
17451A
|
17451A
17451-31011 Gasket, Exhaust Pipe[07.2008 - 12.2009] 2GRFE..GRE156 |
17451-31011 |
US $24.32 |
||
| replacement | |||||
|
17451A
|
17451A
17451-31012 Gasket, Exhaust Pipe, Center[07.2008 - 12.2009] 2GRFE..GRE156 |
17451-31012 |
from US $20.67 |
||
|
17451A
|
17451A
17451-31012 Gasket, Exhaust Pipe, Center[03.2011 -] 2GRFE..GRE156 |
17451-31012 |
from US $20.67 |
||
|
17565
|
17565
17565-28010 Support, Exhaust Pipe, No.1[08.2007 - 12.2009] 2GRFE..GRE156 |
17565-28010 |
from US $9.59 |
||
|
17565A
|
17565A
17565-31040 Support, Exhaust Pipe, No.1[08.2007 - 12.2009] 2GRFE..GRE156 |
17565-31040 |
from US $9.12 |
||
|
17571
|
17571
17571-31190 Bracket, Exhaust Pipe Support, No.1[08.2007 - 12.2009] 2GRFE..GRE156 |
17571-31190 |
US $17.65 |
||
|
17584B
|
17584B
17584-31040 Bracket, Exhaust Pipe No.1 Support[08.2007 - 12.2009] 2GRFE..GRE156 |
17584-31040 |
US $19 |
||
|
9010910177
|
9010910177
90109-10177 BOLT |
90109-10177 |
US $2.88 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.46 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $33.80 |
||
|
9050135035
|
9050135035
90501-35035 Spring, Exhaust Pipe |
90501-35035 |
US $3.20 |
||
|
9050135037
|
9050135037
90501-35037 Spring, Exhaust Pipe |
90501-35037 |
from US $3.20 |
||
|
9090105020
|
9090105020
90901-05020 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90901-05020 |
from US $3.68 |
||
|
9090105026
|
9090105026
90901-05026 Bolt, Exhaust Pipe Support |
90901-05026 |
from US $4.96 |
||
|
9155180816
|
9155180816
91551-80816 Bolt(For Manual Transmission Oil Separator) |
91551-80816 |
US $1.28 |
||
