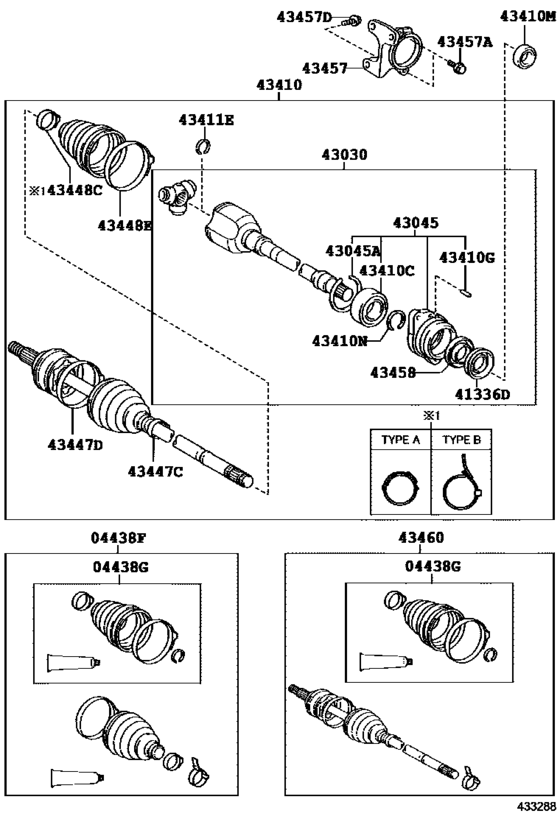

Front Drive Shaft ([12.2006 - ] ﾗｲﾄ (0612- )AZE156,GRE156) Diagram Toyota BLADE
- Year
- 2007 - 2012
- Sales region
- Japan
- Frame
- GRE156
- grade
- G
- ENGINE
- 2GRFE
- From
- 08.2007
- To
- 04.2012
- Gear Shift Type
- 6FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04428-42120
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[08.2007 - 12.2009] GRE156 |
04428-42120 |
— | ||
| replacement | |||||
|
04438F
|
04438F
04428-78030
Boot Kit, Front Drive Shaft, In & Outboard, Lh
[08.2007 - 12.2009] GRE156 |
04428-78030 |
— | ||
|
04438G
|
04438G
04438-42180 Boot Kit, Front Drive Shaft Inboard Joint[12.2006 - 12.2009] AZE15#,GRE156 |
04438-42180 |
from US $69.93 |
||
|
41336D
|
41336D
41336-12020 Cover, Dust(For Front Drive Shaft)[12.2006 - 12.2009] AZE156,GRE156 |
41336-12020 |
from US $3.71 |
||
|
43030
|
43030
43030-42040 Joint Assy, Front Drive Inboard, Rh[08.2007 - 12.2009] GRE156 |
43030-42040 |
US $276.64 |
||
|
43045
|
43045
43045-64020 Case Sub Assy, Drive Shaft Bearing[12.2006 - 12.2009] AZE156,GRE156 |
43045-64020 |
US $75.09 |
||
|
43045A
|
43045A
90520-69002 Ring, Snap (For Case Sub Assy, Drive Shaft Bearing)[12.2006 - 12.2009] AZE156,GRE156 |
90520-69002 |
US $0.79 |
||
|
43410
|
43410
43410-12830
Shaft Assy, Front Drive, Rh
[08.2007 - 12.2009] GRE156 |
43410-12830 |
— | ||
| replacement | |||||
|
43410
|
43410
43410-12831 Shaft Assy, Front Drive, Rh[08.2007 - 12.2009] GRE156 |
43410-12831 |
US $1,172.37 |
||
|
43410C
|
43410C
90363-41003 Bearing (For Front Drive Shaft)[12.2006 - 12.2009] AZE156,GRE156 |
90363-41003 |
from US $26.38 |
||
|
43410G
|
43410G
90250-06003 Pin, Straight[12.2006 - 12.2009] AZE156,GRE156 |
90250-06003 |
US $1.44 |
||
|
43410M
|
43410M
90311-40029
Oil Seal, Front Drive Shaft, Rh
[08.2007 - 12.2009] GRE156 |
90311-40029 |
— | ||
| replacement | |||||
|
43410M
|
43410M
90311-40038 Oil Seal, Front Drive Shaft, Rh[08.2007 - 12.2009] GRE156 |
90311-40038 |
from US $6.40 |
||
|
43410N
|
43410N
90520-38015 Ring, Shaft Snap(For Rear Drive Shaft)[12.2006 - 12.2009] AZE156,GRE156 |
90520-38015 |
from US $1.60 |
||
|
43411E
|
43411E
43425-28010 Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)[12.2006 - 12.2009] AZE15#,GRE156 |
43425-28010 |
US $0.64 |
||
|
43447C
|
43447C
42345-42120 Clamp (For Front Axle Outboard Joint Boot Rh)[08.2007 - 12.2009] GRE156 |
42345-42120 |
US $2.91 |
||
|
43447D
|
43447D
42345-42110 Clamp, No.2 (For Front Axle Outboard Joint Boot)[08.2007 - 12.2009] GRE156 |
42345-42110 |
US $5.42 |
||
|
43448C
|
43448C
42345-42010 Clamp (For Axle Inboard Joint Boot)Small [12.2006 - 12.2009] AZE15#,GRE156 ＴＹＰＥ Ａ：イラスト参照 |
42345-42010 |
from US $0.84 |
||
|
43448C
|
43448C
90949-01559 Clamp, No.1 (For Axle Outboard Joint Boot Setting)[12.2006 - 12.2009] AZE15#,GRE156 ＴＹＰＥ Ｂ：イラスト参照 |
90949-01559 |
US $5.12 |
||
|
43448E
|
43448E
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [12.2006 - 12.2009] AZE15#,GRE156 |
42345-12160 |
from US $4.64 |
||
|
43457
|
43457
43457-42030 Bracket, Drive Shaft Bearing[08.2007 - 12.2009] GRE156 |
43457-42030 |
US $48.63 |
||
|
43457A
|
43457A
90105-10361 Bolt (For Rear Differential Carrier Cover Setting)[12.2006 - 12.2009] AZE156,GRE156 ＊１０−１．２５ＰＸ２２−１９．５ |
90105-10361 |
from US $1.01 |
||
|
43457D
|
43457D
90105-10381 Bolt (For Drive Shaft Bearing Bracket Setting No.1)[12.2006 - 12.2009] AZE15#,GRE156 |
90105-10381 |
US $1.60 |
||
|
43458
|
43458
43458-12010 Cover, Front Drive Shaft Dust[12.2006 - 12.2009] AZE156,GRE156 |
43458-12010 |
from US $8 |
||
|
43460
|
43460
43470-49625 Shaft Assy, Front Drive Outboard Joint, Rh[08.2007 - 12.2009] GRE156 |
43470-49625 |
US $400.40 |
||
