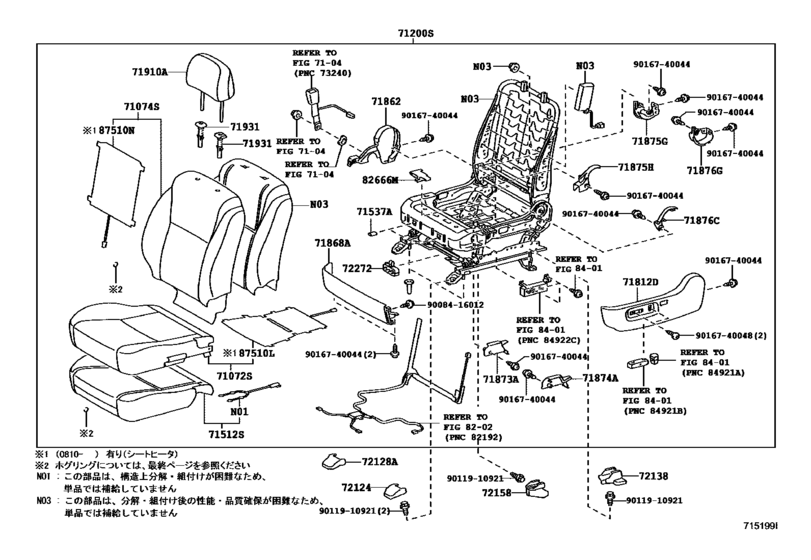

Front Seat & Seat Track ([08.2007 - ] ｼﾞｮｼｭｾｷ,ｱﾘ(ﾊﾟﾜｰｼｰﾄ) (0708- )GRE156..G ; (0810- )AZE15#..G) Diagram Toyota BLADE
- Year
- 2007 - 2012
- Sales region
- Japan
- Frame
- GRE156
- grade
- G
- ENGINE
- 2GRFE
- From
- 08.2007
- To
- 04.2012
- Gear Shift Type
- 6FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71072S
|
71072S
71072-12F30-E1 Cover, Front Seat Cushion, Lh(For Separate Type)[10.2008 - 12.2009] AZE15#,GRE156..G “ＶＥＲＳＩＯＮ Ｌ” ＊（Ｌ）,RED ROCK,TRIM8# |
71072-12F30-E1 |
US $572.21 |
||
|
71072S
|
71072S
71072-12P30-A2 Cover, Front Seat Cushion, Lh(For Separate Type)[08.2007 - 12.2009] GRE156..G IVORY,TRIM0# |
71072-12P30-A2 |
US $451.36 |
||
|
71072S
|
71072S
71072-12P30-J2 Cover, Front Seat Cushion, Lh(For Separate Type)[08.2007 - 12.2009] GRE156..G DK.BLUE,TRIM8# |
71072-12P30-J2 |
US $451.36 |
||
|
71072S
|
71072S
71072-12S40-A3 Cover, Front Seat Cushion, Lh(For Separate Type)FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) [12.2009 - 04.2012] GRE156 NEW IVORY,TRIM0#; AZE15#..G フロントシートアジャスタ−運転席：８ウェイ パワー／助手席：４ウェイ パワー,NEW I VORY,TRIM0# |
71072-12S40-A3 |
US $764.40 |
||
|
71072S
|
71072S
71072-12S40-J2 Cover, Front Seat Cushion, Lh(For Separate Type)FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) [12.2009 - 04.2012] GRE156 DK.BLUE,TRIM8#; AZE15#..G フロントシートアジャスタ−運転席：８ウェイ パワー／助手席：４ウェイ パワー,DK.BL UE,TRIM8# |
71072-12S40-J2 |
US $764.40 |
||
|
71074S
|
71074S
71074-12B40-A0 Cover, Front Seat Back, Lh(For Separate Type)[08.2007 - 12.2009] GRE156..G IVORY,TRIM0# |
71074-12B40-A0 |
US $640.64 |
||
|
71074S
|
71074S
71074-12B40-J0 Cover, Front Seat Back, Lh(For Separate Type)[08.2007 - 12.2009] GRE156..G DK.BLUE,TRIM8# |
71074-12B40-J0 |
US $640.64 |
||
|
71074S
|
71074S
71074-12E10-E1 Cover, Front Seat Back, Lh(For Separate Type)[10.2008 - 12.2009] AZE15#,GRE156..G “ＶＥＲＳＩＯＮ Ｌ” ＊（Ｌ）,RED ROCK,TRIM8# |
71074-12E10-E1 |
US $810.99 |
||
|
71074S
|
71074S
71074-12U80-A4 Cover, Front Seat Back, Lh(For Separate Type)FRONT SEAT BACK, LH(FOR SEPARATE TYPE) [12.2009 - 04.2012] GRE156 NEW IVORY,TRIM0#; AZE15#..G フロントシートアジャスタ−運転席：８ウェイ パワー／助手席：４ウェイ パワー,NEW I VORY,TRIM0# |
71074-12U80-A4 |
US $939.12 |
||
|
71074S
|
71074S
71074-12U80-J3 Cover, Front Seat Back, Lh(For Separate Type)FRONT SEAT BACK, LH(FOR SEPARATE TYPE) [12.2009 - 04.2012] GRE156 DK.BLUE,TRIM8#; AZE15#..G フロントシートアジャスタ−運転席：８ウェイ パワー／助手席：４ウェイ パワー,DK.BL UE,TRIM8# |
71074-12U80-J3 |
US $939.12 |
||
|
71200S
|
71200S
71200-12V60-A4 Seat Assy, Front Lh[08.2007 - 12.2009] GRE156..G IVORY,TRIM0# |
71200-12V60-A4 |
US $3,144.96 |
||
|
71200S
|
71200S
71200-12V60-J4 Seat Assy, Front Lh[08.2007 - 12.2009] GRE156..G DK.BLUE,TRIM8# |
71200-12V60-J4 |
US $3,144.96 |
||
|
71200S
|
71200S
71200-12X70-J1 Seat Assy, Front Lh[10.2008 - 12.2009] GRE156..G “ＶＥＲＳＩＯＮ Ｌ” ＊（Ｌ）,DK.BLUE,TRIM8# |
71200-12X70-J1 |
US $3,144.96 |
||
|
71200S
|
71200S
71200-1AA60-A5 Seat Assy, Front LhFRONT LH [12.2009 - 04.2012] GRE156 IVORY,TRIM0#; AZE15#..G フロントシートアジャスタ−運転席：８ウェイ パワー／助手席：４ウェイ パワー,IVORY ,TRIM0# |
71200-1AA60-A5 |
US $4,397.12 |
||
|
71200S
|
71200S
71200-1AA60-J4 Seat Assy, Front LhFRONT LH [12.2009 - 04.2012] GRE156 DK.BLUE,TRIM8#; AZE15#..G フロントシートアジャスタ−運転席：８ウェイ パワー／助手席：４ウェイ パワー,DK.BL UE,TRIM8# |
71200-1AA60-J4 |
US $4,397.12 |
||
|
71200S
|
71200S
71200-1AA70-A5
Seat Assy, Front Lh
[12.2009 - 04.2012] GRE156 プリクラッシュシステム−有り（ミリ波レーダ方式）,IVORY,TRIM0# |
71200-1AA70-A5 |
— | ||
|
71200S
|
71200S
71200-1AA70-J4
Seat Assy, Front Lh
[12.2009 - 04.2012] GRE156 プリクラッシュシステム−有り（ミリ波レーダ方式）,DK.BLUE,TRIM8# |
71200-1AA70-J4 |
— | ||
|
71512S
|
71512S
71502-12120 Pad, Front Seat Cushion, Lh (For Separate Type)[08.2007 - 12.2009] GRE156..G |
71502-12120 |
US $279.55 |
||
|
71537A
|
71537A
71537-26010 Protector, Front Seat Cushion[12.2006 - 12.2009] AZE15#,GRE156 |
71537-26010 |
US $0.96 |
||
|
71812D
|
71812D
71812-33220-A0 Shield, Front Seat Cushion, Lh[08.2007 - 12.2009] GRE156..G IVORY,TRIM0# |
71812-33220-A0 |
US $54.45 |
||
|
71812D
|
71812D
71812-33220-E1 Shield, Front Seat Cushion, Lh[10.2008 - 12.2009] AZE15#..G “ＶＥＲＳＩＯＮ Ｌ” ＊（Ｌ）,REDROCK,TRIM8#; GRE156..G “ＶＥＲＳＩＯＮ Ｌ” ＊（Ｌ）,REDROCK,TRIM80 |
71812-33220-E1 |
US $54.45 |
||
|
71812D
|
71812D
71812-33220-J0 Shield, Front Seat Cushion, Lh[08.2007 - 12.2009] GRE156..G DK.BLUE,TRIM8# |
71812-33220-J0 |
US $54.45 |
||
|
71862
|
71862
71862-33050-A1 Shield, Front Seat Cushion, Inner Lh[08.2007 - 12.2009] GRE156..G IVORY,TRIM0# |
71862-33050-A1 |
US $27.52 |
||
|
71862
|
71862
71862-33050-E3 Shield, Front Seat Cushion, Inner Lh[10.2008 - 12.2009] AZE15#..G “ＶＥＲＳＩＯＮ Ｌ” ＊（Ｌ）,REDROCK,TRIM8#; GRE156..G “ＶＥＲＳＩＯＮ Ｌ” ＊（Ｌ）,REDROCK,TRIM80 |
71862-33050-E3 |
US $27.52 |
||
|
71862
|
71862
71862-33050-J0 Shield, Front Seat Cushion, Inner Lh[08.2007 - 12.2009] GRE156..G DK.BLUE,TRIM8# |
71862-33050-J0 |
US $27.52 |
||
|
71868A
|
71868A
71868-33040-A1 Shield, Front Seat Cushion, Inner No.1 Lh[08.2007 - 12.2009] GRE156..G IVORY,TRIM0# |
71868-33040-A1 |
US $62.32 |
||
| replacement | |||||
|
71868A
|
71868A
71868-33040-C0 Shield, Front Seat Cushion, Inner No.1 Lh[08.2007 - 12.2009] GRE156..G IVORY,TRIM0# |
71868-33040-C0 |
US $62.32 |
||
|
71868A
|
71868A
71868-33040-E1 Shield, Front Seat Cushion, Inner No.1 Lh[10.2008 - 12.2009] AZE15#..G “ＶＥＲＳＩＯＮ Ｌ” ＊（Ｌ）,REDROCK,TRIM8#; GRE156..G “ＶＥＲＳＩＯＮ Ｌ” ＊（Ｌ）,REDROCK,TRIM80 |
71868-33040-E1 |
US $51.83 |
||
|
71868A
|
71868A
71868-33040-J0 Shield, Front Seat Cushion, Inner No.1 Lh[08.2007 - 12.2009] GRE156..G DK.BLUE,TRIM8# |
71868-33040-J0 |
US $51.83 |
||
|
71873A
|
71873A
71874-48150 Shield, Front Seat Cushion, Lower[08.2007 - 12.2009] GRE156..G |
71874-48150 |
US $7.28 |
||
|
71874A
|
71874A
71873-48150 Shield, Front Seat Cushion, Lower[08.2007 - 12.2009] GRE156..G |
71873-48150 |
US $7.28 |
||
|
71875G
|
71875G
71875-60140 Cover, Reclining Adjuster Inside, Rh[08.2007 - 12.2009] GRE156..G |
71875-60140 |
from US $8.88 |
||
|
71875H
|
71875H
71876-60170-A1 Cover, Reclining Adjuster Inside, Rh[08.2007 - 12.2009] GRE156..G IVORY,TRIM0# |
71876-60170-A1 |
US $6.70 |
||
|
71875H
|
71875H
71876-60170-E7 Cover, Reclining Adjuster Inside, Rh (For Lh Seat)[10.2008 - 12.2009] AZE15#..G “ＶＥＲＳＩＯＮ Ｌ” ＊（Ｌ）,REDROCK,TRIM8#; GRE156..G “ＶＥＲＳＩＯＮ Ｌ” ＊（Ｌ）,REDROCK,TRIM80 |
71876-60170-E7 |
US $6.70 |
||
|
71875H
|
71875H
71876-60170-J0 Cover, Reclining Adjuster Inside, Rh (For Lh Seat)[08.2007 - 12.2009] GRE156..G DK.BLUE,TRIM8# |
71876-60170-J0 |
US $6.70 |
||
|
71876C
|
71876C
71876-60150-A1 Cover, Reclining Adjuster Inside, Lh[08.2007 - 12.2009] GRE156..G IVORY,TRIM0# |
71876-60150-A1 |
US $6.70 |
||
|
71876C
|
71876C
71876-60150-E6 Cover, Reclining Adjuster Inside, Lh[10.2008 - 12.2009] AZE15#..G “ＶＥＲＳＩＯＮ Ｌ” ＊（Ｌ）,REDROCK,TRIM8#; GRE156..G “ＶＥＲＳＩＯＮ Ｌ” ＊（Ｌ）,REDROCK,TRIM80 |
71876-60150-E6 |
US $6.70 |
||
| replacement | |||||
|
71876C
|
71876C
71876-60150-C0 Cover, Reclining Adjuster Inside, Lh (Black)[10.2008 - 12.2009] AZE15#..G “ＶＥＲＳＩＯＮ Ｌ” ＊（Ｌ）,REDROCK,TRIM8#; GRE156..G “ＶＥＲＳＩＯＮ Ｌ” ＊（Ｌ）,REDROCK,TRIM80 |
71876-60150-C0 |
US $5.77 |
||
|
71876C
|
71876C
71876-60150-J0 Cover, Reclining Adjuster Inside, Lh[08.2007 - 12.2009] GRE156..G DK.BLUE,TRIM8# |
71876-60150-J0 |
US $6.70 |
||
|
71876G
|
71876G
71876-60140 Cover, Reclining Adjuster Inside, Lh[08.2007 - 12.2009] GRE156..G |
71876-60140 |
US $8.88 |
||
|
71910A
|
71910A
71910-12D10-A0 Headrest Assy, Front Seat[12.2006 - 12.2009] AZE15#,GRE156..G IVORY,TRIM0# |
71910-12D10-A0 |
US $419.33 |
||
|
71910A
|
71910A
71910-12D10-J0 Headrest Assy, Front Seat[12.2006 - 12.2009] AZE15#,GRE156..G DK.BLUE,TRIM8# |
71910-12D10-J0 |
US $419.33 |
||
|
71910A
|
71910A
71910-12E50-E0 Headrest Assy, Front Seat[10.2008 - 12.2009] AZE15#,GRE156..G “ＶＥＲＳＩＯＮ Ｌ” ＊（Ｌ）,RED ROCK,TRIM8# |
71910-12E50-E0 |
US $419.33 |
||
|
71910A
|
71910A
71910-12F50-A1 Headrest Assy, Front SeatFRONT SEAT [12.2009 - 04.2012] AZE15#,GRE156..G IVORY,TRIM0# |
71910-12F50-A1 |
US $419.33 |
||
|
71910A
|
71910A
71910-12F50-J1 Headrest Assy, Front SeatFRONT SEAT [12.2009 - 04.2012] AZE15#,GRE156..G DK.BLUE,TRIM8# |
71910-12F50-J1 |
US $419.33 |
||
|
71931
|
71931
71930-44020-A1 Support, Front Seat Headrest[12.2006 - 12.2009] AZE15#,GRE156..G ロック付,IVORY,TRIM0# |
71930-44020-A1 |
US $16.89 |
||
|
71931
|
71931
71930-44020-E6 Support, Front Seat Headrest[10.2008 - 12.2009] AZE15#,GRE156..G ロック付,“ＶＥＲＳＩＯＮ Ｌ” ＊（Ｌ）,REDROCK,TRIM8# |
71930-44020-E6 |
US $13.98 |
||
|
71931
|
71931
71930-44020-J0 Support, Front Seat Headrest[12.2006 - 12.2009] AZE15#,GRE156 ロック付,DK.BLUE,TRIM8# |
71930-44020-J0 |
US $13.98 |
||
|
71931
|
71931
71931-47010-A6 Support, Front Seat Headrest[12.2006 - 12.2009] AZE15#,GRE156..G ロック無,IVORY,TRIM0# |
71931-47010-A6 |
US $8.59 |
||
|
71931
|
71931
71931-47010-J1 Support, Front Seat Headrest[12.2006 - 12.2009] AZE15#,GRE156 ロック無,DK.BLUE,TRIM8# |
71931-47010-J1 |
US $8.59 |
||
|
71931
|
71931
71931-47010-L0 Support, Front Seat Headrest[10.2008 - 12.2009] AZE15#,GRE156..G ロック無,“ＶＥＲＳＩＯＮ Ｌ” ＊（Ｌ）,REDROCK,TRIM8# |
71931-47010-L0 |
US $8.59 |
||
|
72124
|
72124
72124-12140-A0 Cover, Seat Track Bracket, Outer Front Lh[08.2007 - 12.2009] GRE156..G IVORY,TRIM0# |
72124-12140-A0 |
US $8.59 |
||
|
72124
|
72124
72124-12140-B0 Cover, Seat Track Bracket, Outer Front Lh[08.2007 - 12.2009] GRE156..G DK.GRAY,TRIM8# |
72124-12140-B0 |
US $8.59 |
||
|
72128A
|
72128A
72128-12030-A0 Cover, Seat Track Bracket, Inner Front Lh[08.2007 - 12.2009] GRE156..G IVORY,TRIM0# |
72128-12030-A0 |
US $8.59 |
||
|
72128A
|
72128A
72128-12030-B0 Cover, Seat Track Bracket, Inner Front Lh[08.2007 - 12.2009] GRE156..G DK.GRAY,TRIM8# |
72128-12030-B0 |
US $8.59 |
||
|
72138
|
72138
72138-12210-A0 Cover, Seat Track, Outer Lh[08.2007 - 12.2009] GRE156..G IVORY,TRIM0# |
72138-12210-A0 |
US $16.31 |
||
|
72138
|
72138
72138-12210-B0 Cover, Seat Track, Outer Lh[08.2007 - 12.2009] GRE156..G DK.GRAY,TRIM8# |
72138-12210-B0 |
US $16.31 |
||
|
72158
|
72158
72158-12200-A0 Cover, Seat Track Bracket, Inner Lh[08.2007 - 12.2009] GRE156..G IVORY,TRIM0# |
72158-12200-A0 |
US $17.18 |
||
|
72158
|
72158
72158-12200-B0 Cover, Seat Track Bracket, Inner Lh[08.2007 - 12.2009] GRE156..G DK.GRAY,TRIM8# |
72158-12200-B0 |
US $17.18 |
||
|
72272
|
72272
72272-12020 Clamp, Seat Track Control Cable[12.2006 - 12.2009] AZE15#,GRE156..G |
72272-12020 |
US $2.77 |
||
|
82666M
|
82666M
82666-12420 Holder, Connector[12.2006 - 12.2009] AZE15#,GRE156 |
82666-12420 |
US $4.80 |
||
|
87510L
|
87510L
87510-12230 Heater Assy, Front Seat Cushion, Rh[10.2008 - 12.2009] AZE15#,GRE156..G “ＶＥＲＳＩＯＮ Ｌ” ＊（Ｌ） |
87510-12230 |
US $273.73 |
||
|
87510L
|
87510L
87510-12250 Heater Assy, Front Seat Cushion, RhFRONT SEAT CUSHION, RH [12.2009 -] GRE156; AZE15#..G フロントシートアジャスタ−運転席：８ウェイ パワー／助手席：４ウェイ パワー |
87510-12250 |
US $273.73 |
||
|
87510N
|
87510N
87530-12020 Heater Assy, Front Seat Back, Rh[10.2008 - 12.2009] AZE15#,GRE156..G “ＶＥＲＳＩＯＮ Ｌ” ＊（Ｌ） |
87530-12020 |
US $222.77 |
||
|
87510N
|
87510N
87530-12040 Heater Assy, Front Seat Back, RhFRONT SEAT BACK, RH [12.2009 -] AZE15#,GRE156..G |
87530-12040 |
US $222.77 |
||
|
9008416012
|
9008416012
90084-16012 SCREW |
90084-16012 |
US $1.59 |
||
|
9011910921
|
9011910921
90119-10921 BOLT WWASHER |
90119-10921 |
from US $1.11 |
||
|
9016740044
|
9016740044
90167-40044 BOLT |
90167-40044 |
from US $0.76 |
||
|
9016740048
|
9016740048
90167-40048 SCREW PAN TAPPING |
90167-40048 |
US $0.69 |
||
