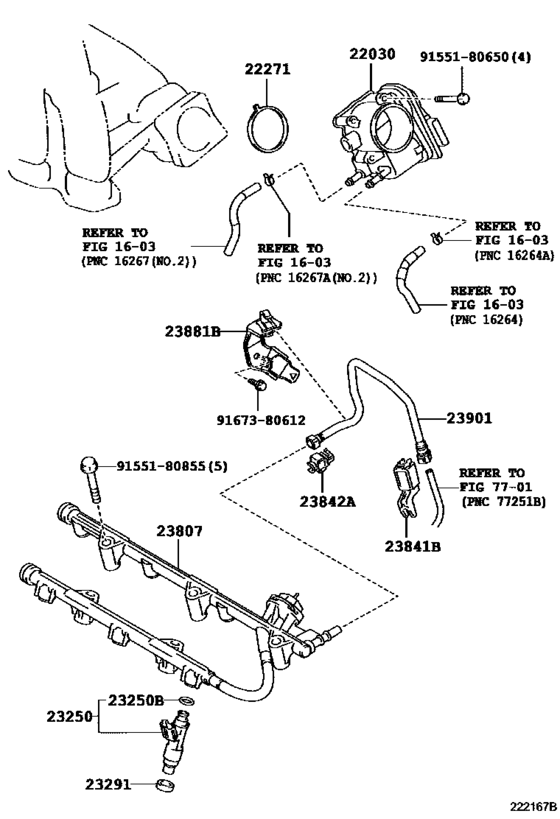

Fuel Injection System ([08.2007 - ] (0708- )2GRFE) Diagram Toyota BLADE
- Year
- 2007 - 2012
- Sales region
- Japan
- Frame
- GRE156
- grade
- G
- ENGINE
- 2GRFE
- From
- 08.2007
- To
- 04.2012
- Gear Shift Type
- 6FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22030
|
22030
22030-31030 Body Assy, Throttle W/motor[08.2007 - 12.2009] 2GRFE..GRE156 |
22030-31030 |
US $821.18 |
||
|
22271
|
22271
22271-31040 Gasket, Throttle Body[08.2007 - 12.2009] 2GRFE..GRE156 |
22271-31040 |
US $5.44 |
||
|
23250
|
23250
23209-31050 Injector Assy, Fuel[08.2007 - 12.2009] 2GRFE..GRE156 |
23209-31050 |
from US $168.58 |
||
|
23250B
|
23250B
90301-07033 Ring, O(For Fuel Injector)[08.2007 - 12.2009] 2GRFE..GRE156 |
90301-07033 |
from US $2.20 |
||
|
23291
|
23291
23291-23010 Insulator, Injector Vibration[08.2007 - 12.2009] 2GRFE..GRE156 |
23291-23010 |
from US $2.73 |
||
|
23807
|
23807
23807-31090 Pipe Sub-Assy, Fuel Delivery[08.2007 - 12.2009] 2GRFE..GRE156 |
23807-31090 |
from US $119.34 |
||
|
23841B
|
23841B
23841-21040 Clamp, Fuel Pipe, No.1(For Efi)[08.2007 - 12.2009] 2GRFE..GRE156 |
23841-21040 |
US $13.54 |
||
|
23842A
|
23842A
23842-31040 Clamp, Fuel Pipe, No.2(For Efi)[08.2007 - 12.2009] 2GRFE..GRE156 |
23842-31040 |
US $8.91 |
||
|
23881B
|
23881B
23881-31060 Bracket, Fuel Hose[08.2007 - 12.2009] 2GRFE..GRE156 |
23881-31060 |
US $5.53 |
||
|
23901
|
23901
23901-31150 Tube Sub-Assy, Fuel[08.2007 - 12.2009] 2GRFE..GRE156 |
23901-31150 |
US $54.16 |
||
|
9155180650
|
9155180650
91551-80650 BOLT FLANGE |
91551-80650 |
US $1.28 |
||
|
9155180855
|
9155180855
91551-80855 New Genuine Part |
91551-80855 |
US $1.60 |
||
|
9167380612
|
9167380612
91673-80612 BOLT FLANGE |
91673-80612 |
US $0.96 |
