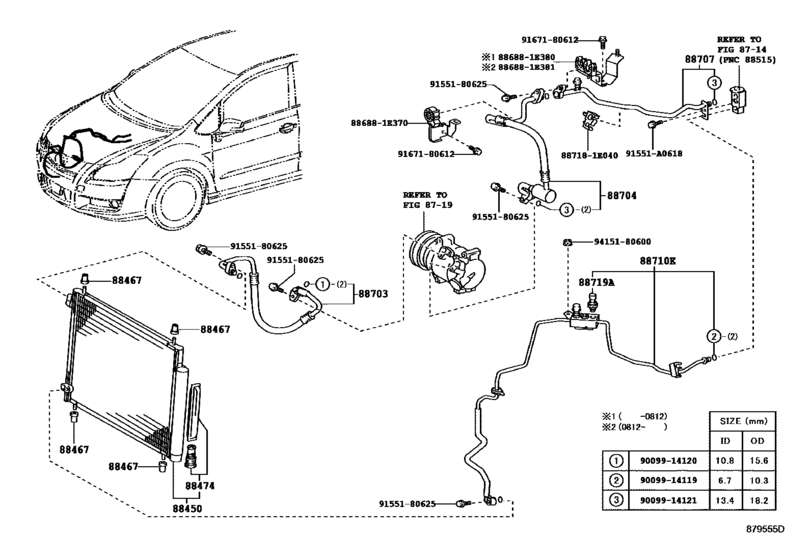

Heating & Air Conditioning - Cooler Piping ([08.2007 - 12.2009] (0708-0912)GRE156) Diagram Toyota BLADE
- Year
- 2007 - 2012
- Sales region
- Japan
- Frame
- GRE156
- grade
- G
- ENGINE
- 2GRFE
- From
- 08.2007
- To
- 04.2012
- Gear Shift Type
- 6FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88450
|
88450
88450-12310 Condenser Assy, W/receiver[08.2007 - 12.2009] GRE156 |
88450-12310 |
US $576.58 |
||
|
88467
|
88467
16716-28010 Cushion, Fan Shroud[12.2006 - 12.2009] AZE15#,GRE156 |
16716-28010 |
from US $2.22 |
||
|
88474
|
88474
88474-17010 Dryer, Cooler[08.2007 - 12.2009] GRE156 |
88474-17010 |
from US $67.27 |
||
|
88703
|
88703
88703-1A020 Hose Sub-Assy, Discharge[08.2007 - 12.2009] GRE156 |
88703-1A020 |
US $152.88 |
||
|
88704
|
88704
88704-1A260 Hose Sub-Assy, Suction[08.2007 - 12.2009] GRE156 |
88704-1A260 |
US $163.07 |
||
|
88707
|
88707
88707-12250 Pipe Sub-Assy, Suction[12.2006 - 12.2009] AZE15#,GRE156 |
88707-12250 |
US $125.22 |
||
|
88710E
|
88710E
88710-12850 Tube & Accessory Assy, Air Conditioner[08.2007 - 12.2009] GRE156 |
88710-12850 |
US $352.35 |
||
|
88719A
|
88719A
88719-33020 Sensor, Airconditioner Pressure[12.2006 - 12.2009] AZE15#,GRE156 |
88719-33020 |
from US $124.05 |
||
|
91551A0618
|
91551A0618
91551-A0618 BOLT FLANGE |
91551-A0618 |
US $0.96 |
||
|
886881E370
|
886881E370
88688-1E370
Bracket, Cooler Diaphragm
|
88688-1E370 |
— | ||
|
886881E380
|
886881E380
88688-1E380
Bracket, Cooler Refrigerant Hose, No.2
|
88688-1E380 |
— | ||
| replacement | |||||
|
886881E380
|
886881E380
88688-1E381
Bracket, Cooler Refrigerant Hose, No.2
|
88688-1E381 |
— | ||
|
886881E381
|
886881E381
88688-1E381
Bracket, Cooler Refrigerant Hose, No.2
|
88688-1E381 |
— | ||
|
887181E040
|
887181E040
88718-1E040
Clamp(For Cooler Refrigerant Pipe), No.1
|
88718-1E040 |
— | ||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $2.27 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.72 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $2.22 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.79 |
||
|
9155180625
|
9155180625
91551-80625 Bolt(For Camshaft Housing Set) |
91551-80625 |
from US $0.74 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.68 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.74 |
||
