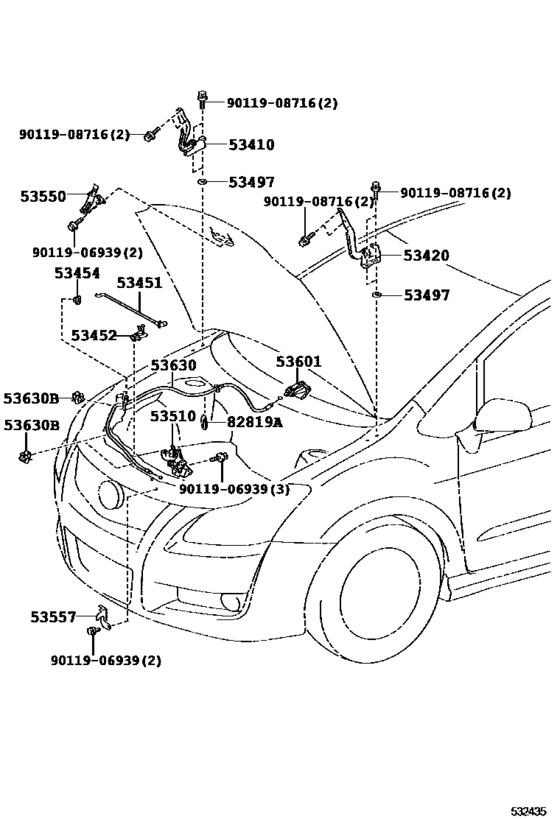

Hood Lock & Hinge ([12.2006 - ] (0612- )) Diagram Toyota BLADE
- Year
- 2007 - 2012
- Sales region
- Japan
- Frame
- GRE156
- grade
- G
- ENGINE
- 2GRFE
- From
- 08.2007
- To
- 04.2012
- Gear Shift Type
- 6FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-12480 Hinge Assy, Hood, Rh[12.2006 - 12.2009] AZE15#,GRE156 |
53410-12480 |
from US $28.83 |
||
|
53420
|
53420
53420-12470 Hinge Assy, Hood, Lh[12.2006 - 12.2009] AZE15#,GRE156 |
53420-12470 |
from US $30.84 |
||
|
53451
|
53451
53440-12180 Rod, Hood Support[07.2007 - 12.2009] AZE15#,GRE156 |
53440-12180 |
US $16.45 |
||
| replacement | |||||
|
53451
|
53451
53440-12181 Rod, Hood Support[07.2007 - 12.2009] AZE15#,GRE156 |
53440-12181 |
US $16.45 |
||
|
53451
|
53451
53440-12181 Rod, Hood Support[12.2009 -] AZE15#,GRE156 |
53440-12181 |
US $16.45 |
||
|
53452
|
53452
53452-12050 Holder, Hood Stay[12.2006 - 12.2009] AZE15#,GRE156 |
53452-12050 |
US $15.04 |
||
|
53454
|
53454
53454-52010 Grommet(For Hood Support Rod)[12.2006 - 12.2009] AZE15#,GRE156 |
53454-52010 |
from US $1.29 |
||
|
53497
|
53497
53497-42010 Pad, Hood Hinge, No.1[12.2006 - 12.2009] AZE15#,GRE156 厚さ＝０．５ |
53497-42010 |
US $1.60 |
||
|
53510
|
53510
53510-12A20 Lock Assy, Hood[12.2006 - 12.2009] AZE15#,GRE156 |
53510-12A20 |
US $41.93 |
||
|
53550
|
53550
53550-12030 Hook Assy, Hood Auxiliary Catch[12.2006 - 12.2009] AZE15#,GRE156 |
53550-12030 |
US $43.97 |
||
| replacement | |||||
|
53550
|
53550
53550-12031 Hook Assy, Hood Auxiliary Catch[12.2006 - 12.2009] AZE15#,GRE156 |
53550-12031 |
US $43.97 |
||
|
53550
|
53550
53550-12031 Hook Assy, Hood Auxiliary Catch[11.2010 -] AZE15#,GRE156 |
53550-12031 |
US $43.97 |
||
|
53557
|
53557
53557-12010 Catch, Hood Auxiliary Hook[12.2006 - 12.2009] AZE15#,GRE156 |
53557-12010 |
US $6.41 |
||
|
53601
|
53601
53601-52010-A1 Lever Sub-Assy, Hood Lock Control[12.2006 - 12.2009] AZE15#,GRE156..G IVORY,TRIM00 |
53601-52010-A1 |
US $25.04 |
||
|
53601
|
53601
53601-52010-J1 Lever Sub-Assy, Hood Lock Control[12.2006 - 12.2009] AZE15#,GRE156..G DK.BLUE,TRIM00,8#; AZE15#,GRE156..STD DK.BLUE,TRIM8# |
53601-52010-J1 |
US $25.04 |
||
| replacement | |||||
|
53601
|
53601
53601-52010-C0
Lever Sub-Assy, Hood Lock Control
[12.2006 - 12.2009] AZE15#,GRE156..G DK.BLUE,TRIM00,8#; AZE15#,GRE156..STD DK.BLUE,TRIM8# |
53601-52010-C0 |
— | ||
|
53630
|
53630
53630-12530 Cable Assy, Hood Lock Control[12.2006 - 12.2009] AZE15#,GRE156 |
53630-12530 |
US $17.76 |
||
|
53630B
|
53630B
90469-06005 Clamp(For Hood Lock Control Cable)[12.2006 - 12.2009] AZE15#,GRE156 |
90469-06005 |
from US $1.28 |
||
|
82819A
|
82819A
82817-1A810 Grommet(For Front Fender Apron)[12.2006 - 12.2009] AZE15#,GRE156 |
82817-1A810 |
US $3.52 |
||
|
9011906939
|
9011906939
90119-06939 Bolt, Hood Lock |
90119-06939 |
US $0.96 |
||
|
9011908716
|
9011908716
90119-08716 BOLT WWASHER |
90119-08716 |
from US $0.82 |
||
