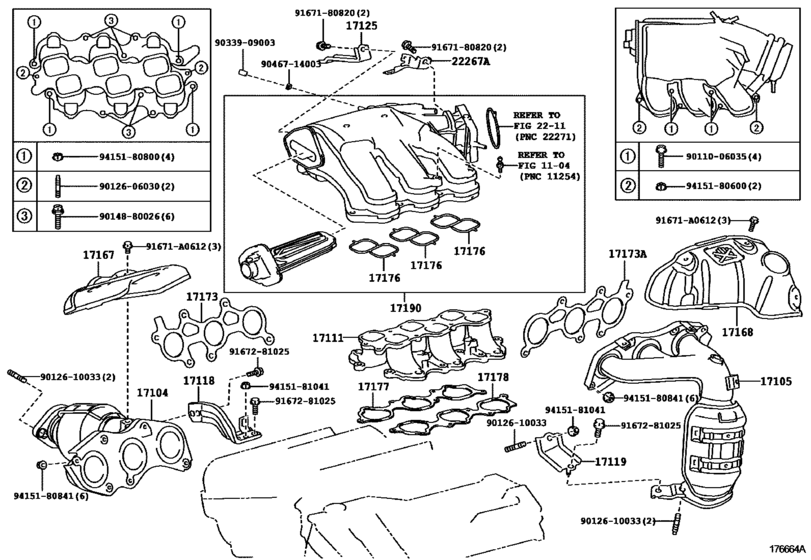

Manifold ([08.2007 - ] (0708- )2GRFE) Diagram Toyota BLADE
- Year
- 2007 - 2012
- Sales region
- Japan
- Frame
- GRE156
- grade
- G
- ENGINE
- 2GRFE
- From
- 08.2007
- To
- 04.2012
- Gear Shift Type
- 6FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17104
|
17104
17140-31230 Manifold Sub-Assy, Exhaust, Rh[08.2007 - 12.2009] 2GRFE..GRE156 |
17140-31230 |
US $1,061.42 |
||
|
17105
|
17105
17150-31150 Manifold Sub-Assy, Exhaust, Lh[08.2007 - 12.2009] 2GRFE..GRE156 ＊１１４＝ＴＯＹＯＴＡ／Ｌ３１１５０／Ｙ |
17150-31150 |
from US $929.51 |
||
|
17111
|
17111
17111-31141 Manifold, Intake[08.2007 - 12.2009] 2GRFE..GRE156 |
17111-31141 |
US $428.06 |
||
|
17118
|
17118
17118-31080 Stay, Manifold[08.2007 - 12.2009] 2GRFE..GRE156 |
17118-31080 |
US $18.35 |
||
|
17119
|
17119
17119-31020 Stay, Manifold, No.2[08.2007 - 12.2009] 2GRFE..GRE156 |
17119-31020 |
US $8.74 |
||
|
17125
|
17125
17125-31040 Stay, Surge Tank, No.1[08.2007 - 12.2009] 2GRFE..GRE156 |
17125-31040 |
US $11.53 |
||
|
17167
|
17167
17167-31040 Insulator, Exhaust Manifold Heat, No.1[08.2007 - 12.2009] 2GRFE..GRE156 |
17167-31040 |
US $36.84 |
||
|
17168
|
17168
17168-31021 Insulator, Exhaust Manifold Heat, No.2[08.2007 - 12.2009] 2GRFE..GRE156 |
17168-31021 |
US $41.06 |
||
|
17173
|
17173
17173-31020 Gasket, Exhaust Manifold To Head[08.2007 - 12.2009] 2GRFE..GRE156 |
17173-31020 |
from US $15.09 |
||
|
17173A
|
17173A
17173-31020 Gasket, Exhaust Manifold To Head[08.2007 - 12.2009] 2GRFE..GRE156 |
17173-31020 |
from US $15.09 |
||
|
17176
|
17176
17176-31040
Gasket, Air Surge Tank To Intake Manifold
[08.2007 - 12.2009] 2GRFE..GRE156 |
17176-31040 |
— | ||
| replacement | |||||
|
17176
|
17176
17176-31090 Gasket, Air Surge Tank To Intake ManifoldAIR SURGE TANK TO INTAKE MANIFOLD [08.2007 - 12.2009] 2GRFE..GRE156 |
17176-31090 |
from US $8.32 |
||
|
17177
|
17177
17177-31040 Gasket, Intake Manifold To Head, No.1[08.2007 - 12.2009] 2GRFE..GRE156 |
17177-31040 |
from US $6.83 |
||
|
17178
|
17178
17178-31030 Gasket, Intake Manifold To Head, No.2[08.2007 - 12.2009] 2GRFE..GRE156 |
17178-31030 |
from US $7.14 |
||
|
17190
|
17190
17190-31081 Tank Assy, Intake Air Surge[08.2007 - 12.2009] 2GRFE..GRE156 |
17190-31081 |
US $677.04 |
||
|
22267A
|
22267A
22267-31030 Bracket, Throttle Body[08.2007 - 12.2009] 2GRFE..GRE156 |
22267-31030 |
US $5.39 |
||
|
91671A0612
|
91671A0612
91671-A0612 BOLT FLANGE |
91671-A0612 |
from US $0.66 |
||
|
9011006035
|
9011006035
90110-06035 BOLT HEXAGON SOCKET |
90110-06035 |
US $1.28 |
||
|
9012606030
|
9012606030
90126-06030 New Genuine Part |
90126-06030 |
US $0.96 |
||
|
9012610033
|
9012610033
90126-10033 Bolt, Stud(For Exhaust Manifold, Rh) |
90126-10033 |
from US $4.66 |
||
|
9014880026
|
9014880026
90148-80026 Bolt |
90148-80026 |
US $6.64 |
||
|
9033909003
|
9033909003
90339-09003 Plug(For Vacuum Hose Union) |
90339-09003 |
from US $3.36 |
||
|
9046714003
|
9046714003
90467-14003 Clip Or Clamp(For Ventilation Hose) |
90467-14003 |
US $2.08 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.88 |
||
|
9167281025
|
9167281025
91672-81025 Bolt, Center Support Bearing Bracket |
91672-81025 |
from US $1.13 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.82 |
||
|
9415180841
|
9415180841
94151-80841 FLANGE NUT |
94151-80841 |
from US $0.92 |
||
|
9415181041
|
9415181041
94151-81041 New Genuine Part |
94151-81041 |
US $1.60 |
||
