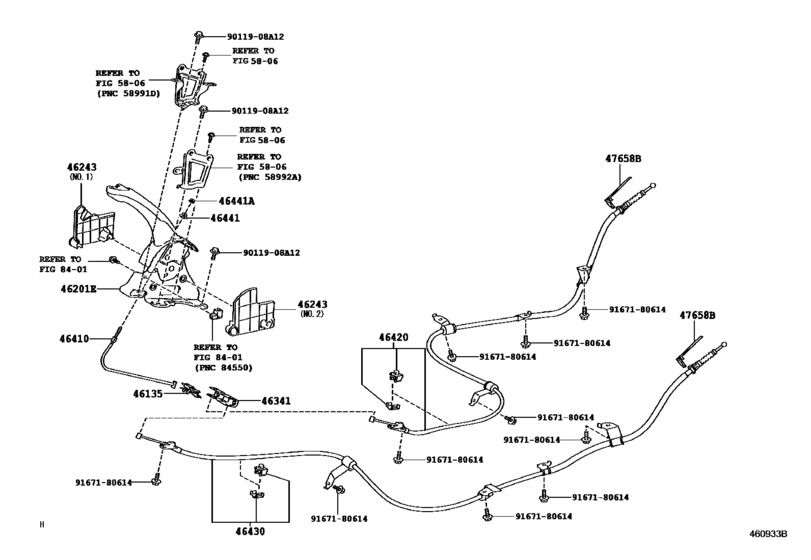

Parking Brake & Cable ([12.2006 - 12.2009] (0612-0912)AZE156,GRE156) Diagram Toyota BLADE
- Year
- 2007 - 2012
- Sales region
- Japan
- Frame
- GRE156
- grade
- G
- ENGINE
- 2GRFE
- From
- 08.2007
- To
- 04.2012
- Gear Shift Type
- 6FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46135
|
46135
46135-12010 Stopper, Parking Brake Cable End[12.2006 - 12.2009] AZE15#,GRE156 |
46135-12010 |
from US $2.91 |
||
|
46201E
|
46201E
46201-12351-J0 Lever Sub-Assy, Parking Brake[12.2006 - 09.2007] GRE156..G DK.BLUE,TRIM0#,8#; GRE156..STD DK.BLUE,TRIM8# |
46201-12351-J0 |
US $70.18 |
||
| replacements | |||||
|
46201E
|
46201E
46201-12353-J0 Lever Sub-Assy, Parking Brake[12.2006 - 09.2007] GRE156..G DK.BLUE,TRIM0#,8#; GRE156..STD DK.BLUE,TRIM8# |
46201-12353-J0 |
US $58.24 |
||
|
46201E
|
46201E
90159-50360 SCREW[12.2006 - 09.2007] GRE156..G DK.BLUE,TRIM0#,8#; GRE156..STD DK.BLUE,TRIM8# |
90159-50360 |
from US $0.96 |
||
|
46201E
|
46201E
46201-12352-J0 Lever Sub-Assy, Parking Brake[09.2007 - 10.2009] AZE156,GRE156..G DK.BLUE,TRIM0#,8#; AZE156,GRE156..STD DK.BLUE,TRIM8# |
46201-12352-J0 |
US $58.24 |
||
| replacements | |||||
|
46201E
|
46201E
46201-12353-J0 Lever Sub-Assy, Parking Brake[09.2007 - 10.2009] AZE156,GRE156..G DK.BLUE,TRIM0#,8#; AZE156,GRE156..STD DK.BLUE,TRIM8# |
46201-12353-J0 |
US $58.24 |
||
|
46201E
|
46201E
90159-50360 SCREW[09.2007 - 10.2009] AZE156,GRE156..G DK.BLUE,TRIM0#,8#; AZE156,GRE156..STD DK.BLUE,TRIM8# |
90159-50360 |
from US $0.96 |
||
|
46201E
|
46201E
46201-12353-J0 Lever Sub-Assy, Parking Brake[10.2009 - 12.2009] AZE156,GRE156..G DK.BLUE,TRIM0#,8#; AZE156,GRE156..STD DK.BLUE,TRIM8# |
46201-12353-J0 |
US $58.24 |
||
|
46243
|
46243
46243-12041 Cover, Parking Brake Lever[12.2006 - 12.2009] AZE15#,GRE156 ＮＯ．１ |
46243-12041 |
US $20.82 |
||
|
46243
|
46243
46243-12051 Cover, Parking Brake Lever[12.2006 - 12.2009] AZE15#,GRE156 ＮＯ．２ |
46243-12051 |
US $20.82 |
||
|
46341
|
46341
46341-12040 Equalizer, Parking Brake[12.2006 - 12.2009] AZE15#,GRE156 |
46341-12040 |
US $6.26 |
||
|
46410
|
46410
46410-12280 Cable Assy, Parking Brake, No.1[12.2006 - 12.2009] AZE156,GRE156 |
46410-12280 |
US $24.02 |
||
|
46410
|
46410
46410-12370 Cable Assy, Parking Brake, No.1PARKING BRAKE, NO.1 [12.2009 -] AZE156,GRE156 |
46410-12370 |
US $44.84 |
||
|
46420
|
46420
46420-12650 Cable Assy, Parking Brake, No.2[12.2006 - 12.2009] AZE156,GRE156 |
46420-12650 |
US $61.01 |
||
|
46430
|
46430
46430-12540 Cable Assy, Parking Brake, No.3[12.2006 - 12.2009] AZE156,GRE156 |
46430-12540 |
US $61.01 |
||
|
46441
|
46441
46441-12010 Nut, Wire Adjusting, No.1[12.2006 - 12.2009] AZE15#,GRE156 |
46441-12010 |
US $2.56 |
||
|
46441A
|
46441A
90179-06299 Nut, Wire Adjusting, No.1[12.2006 - 12.2009] AZE15#,GRE156 |
90179-06299 |
from US $0.72 |
||
|
47658B
|
47658B
47658-12010 Protector, Parking Brake Lever[12.2006 - 12.2009] AZE15#,GRE156 |
47658-12010 |
US $6.84 |
||
|
9011908A12
|
9011908A12
90119-08A12 New Genuine Part |
90119-08A12 |
US $1.28 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.68 |
||
