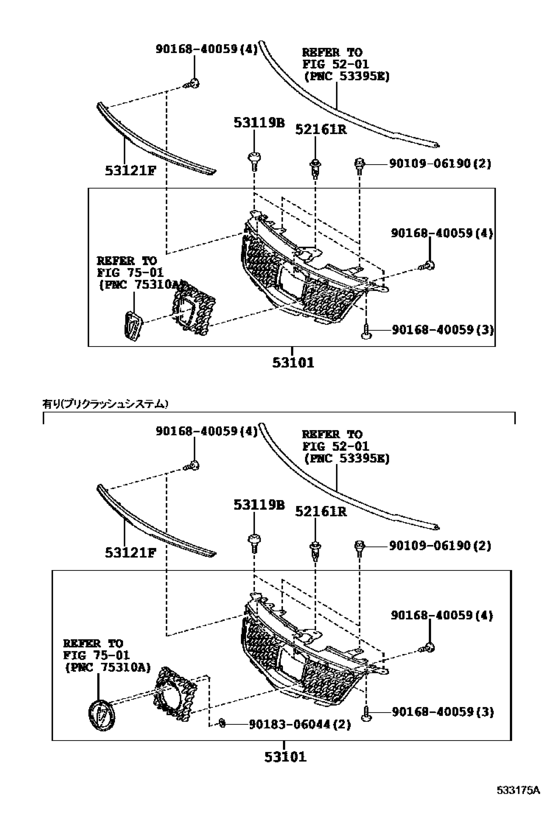

Radiator Grille ([12.2009 - ] (0912- )GRE156) Diagram Toyota BLADE
- Year
- 2007 - 2012
- Sales region
- Japan
- Frame
- GRE156
- grade
- G
- ENGINE
- 2GRFE
- From
- 08.2007
- To
- 04.2012
- Gear Shift Type
- 6FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52161R
|
52161R
52161-16010 Clip[12.2006 - 12.2009] AZE15#,GRE156 |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
52161R
|
52161R
52161-0K040 Clip[12.2006 - 12.2009] AZE15#,GRE156 |
52161-0K040 |
from US $1.50 |
||
|
52161R
|
52161R
52161-02020 Clip[12.2006 - 12.2009] AZE15#,GRE156 |
52161-02020 |
US $5.27 |
||
|
53101
|
53101
53101-12C10 Grille Sub-Assy, RadiatorRADIATOR [12.2009 - 04.2012] GRE156 |
53101-12C10 |
US $441.17 |
||
|
53101
|
53101
53101-12C20 Grille Sub-Assy, RadiatorRADIATOR [12.2009 - 04.2012] GRE156 プリクラッシュシステム−有り（ミリ波レーダ方式） |
53101-12C20 |
US $956.59 |
||
|
53119B
|
53119B
53119-20120 Protector, Radiator Grille[12.2006 - 12.2009] AZE15#,GRE156 |
53119-20120 |
from US $7.62 |
||
|
53121F
|
53121F
53121-12230 Moulding, Radiator Grille, Upper RhRADIATOR GRILLE, UPPER RH [12.2009 -] GRE156 |
53121-12230 |
US $46.16 |
||
|
9010906190
|
9010906190
90109-06190 BOLT |
90109-06190 |
US $4 |
||
|
9016840059
|
9016840059
90168-40059 Screw, Headlamp |
90168-40059 |
US $1.12 |
||
|
9018306044
|
9018306044
90183-06044 NUT SPRING |
90183-06044 |
from US $0.74 |
||
