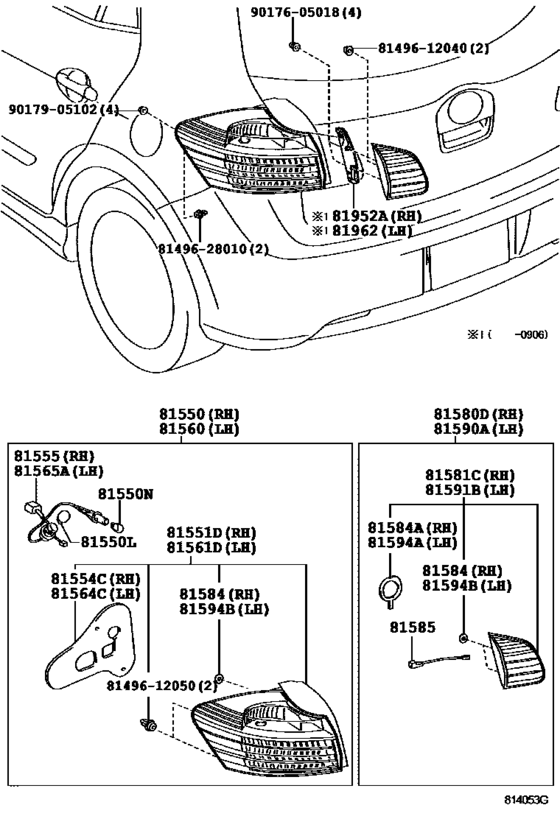

Rear Combination Lamp ([12.2006 - 12.2009] (0612-0912)) Diagram Toyota BLADE
- Year
- 2007 - 2012
- Sales region
- Japan
- Frame
- GRE156
- grade
- G
- ENGINE
- 2GRFE
- From
- 08.2007
- To
- 04.2012
- Gear Shift Type
- 6FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-12A40 Lamp Assy, Rear Combination, Rh[12.2006 - 12.2009] AZE15#,GRE156 |
81550-12A40 |
US $349.44 |
||
|
81550
|
81550
81550-12C00 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [12.2009 -] AZE15#,GRE156 |
81550-12C00 |
US $493.58 |
||
| replacement | |||||
|
81550
|
81550
81550-12C01 Lamp Assy, Rear Combination, Rh[12.2009 -] AZE15#,GRE156 |
81550-12C01 |
US $493.58 |
||
|
81550L
|
81550L
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[12.2006 - 12.2009] AZE15#,GRE156 |
90981-15011 |
from US $4.60 |
||
|
81550N
|
81550N
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[12.2006 - 12.2009] AZE15#,GRE156 |
90981-11059 |
from US $3.20 |
||
|
81551D
|
81551D
81551-12A40 Lens & Body, Rear Combination Lamp, Rh[12.2006 - 12.2009] AZE15#,GRE156 |
81551-12A40 |
US $378.33 |
||
|
81551D
|
81551D
81551-12C00 Lens & Body, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [12.2009 -] AZE15#,GRE156 |
81551-12C00 |
US $461.55 |
||
| replacement | |||||
|
81551D
|
81551D
81551-12C01 Lens & Body, Rear Combination Lamp, Rh[12.2009 -] AZE15#,GRE156 |
81551-12C01 |
US $461.55 |
||
|
81554C
|
81554C
81554-12A40 Packing, Rear Combination Lamp Body, Rh[12.2006 - 12.2009] AZE15#,GRE156 |
81554-12A40 |
US $11.36 |
||
|
81554C
|
81554C
81554-12C00 Packing, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [12.2009 -] AZE15#,GRE156 |
81554-12C00 |
US $11.36 |
||
|
81555
|
81555
81555-12A40 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[12.2006 - 12.2009] AZE15#,GRE156 |
81555-12A40 |
US $27.66 |
||
|
81555
|
81555
81555-12C00 Socket & Wire Sub-Assy, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [12.2009 -] AZE15#,GRE156 |
81555-12C00 |
US $27.52 |
||
|
81560
|
81560
81560-12A40 Lamp Assy, Rear Combination, Lh[12.2006 - 12.2009] AZE15#,GRE156 |
81560-12A40 |
US $349.44 |
||
|
81560
|
81560
81560-12C00 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [12.2009 -] AZE15#,GRE156 |
81560-12C00 |
US $493.58 |
||
| replacement | |||||
|
81560
|
81560
81560-12C01 Lamp Assy, Rear Combination, Lh[12.2009 -] AZE15#,GRE156 |
81560-12C01 |
US $493.58 |
||
|
81561D
|
81561D
81561-12A40 Lens & Body, Rear Combination Lamp, Lh[12.2006 - 12.2009] AZE15#,GRE156 |
81561-12A40 |
US $314.50 |
||
|
81561D
|
81561D
81561-12C00 Lens & Body, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [12.2009 -] AZE15#,GRE156 |
81561-12C00 |
US $461.55 |
||
| replacement | |||||
|
81561D
|
81561D
81561-12C01 Lens & Body, Rear Combination Lamp, Lh[12.2009 -] AZE15#,GRE156 |
81561-12C01 |
US $461.55 |
||
|
81564C
|
81564C
81564-12A40 Packing, Rear Combination Lamp Body, Lh[12.2006 - 12.2009] AZE15#,GRE156 |
81564-12A40 |
US $12.93 |
||
|
81564C
|
81564C
81564-12C00 Packing, Rear Combination Lamp Body, LhREAR COMBINATION LAMP BODY, LH [12.2009 -] AZE15#,GRE156 |
81564-12C00 |
US $11.36 |
||
|
81565A
|
81565A
81555-12A40 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[12.2006 - 12.2009] AZE15#,GRE156 |
81555-12A40 |
US $27.66 |
||
|
81565A
|
81565A
81555-12C00 Socket & Wire Sub-Assy, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [12.2009 -] AZE15#,GRE156 |
81555-12C00 |
US $27.52 |
||
|
81580D
|
81580D
81580-12120 Lamp Assy, Rear, Rh[12.2006 - 12.2009] AZE15#,GRE156 |
81580-12120 |
US $208.21 |
||
|
81580D
|
81580D
81580-12160 Lamp Assy, Rear, RhREAR, RH [12.2009 -] AZE15#,GRE156 |
81580-12160 |
US $230.05 |
||
|
81581C
|
81581C
81581-12120 Lens And Body, Rear Lamp, Rh[12.2006 - 12.2009] AZE15#,GRE156 |
81581-12120 |
US $190.74 |
||
|
81581C
|
81581C
81581-12160 Lens And Body, Rear Lamp, RhREAR LAMP, RH [12.2009 -] AZE15#,GRE156 |
81581-12160 |
US $215.49 |
||
|
81584
|
81584
81584-22040 Gasket, Rear Combination Lamp, Rh[12.2006 - 12.2009] AZE15#,GRE156 |
81584-22040 |
US $3.04 |
||
|
81584A
|
81584A
81584-12120 Gasket, Rear Lamp Rh[12.2006 - 12.2009] AZE15#,GRE156 |
81584-12120 |
US $8.30 |
||
|
81585
|
81585
81585-12120 Socket & Wire, Rear Lamp[12.2006 - 12.2009] AZE15#,GRE156 右側 |
81585-12120 |
US $18.78 |
||
|
81585
|
81585
81595-12120 Socket & Wire, Rear Lamp[12.2006 - 12.2009] AZE15#,GRE156 左側 |
81595-12120 |
US $18.78 |
||
|
81590A
|
81590A
81590-12120 Lamp Assy, Rear, Lh[12.2006 - 12.2009] AZE15#,GRE156 |
81590-12120 |
US $208.21 |
||
|
81590A
|
81590A
81590-12130 Lamp Assy, Rear, LhREAR, LH [12.2009 -] AZE15#,GRE156 |
81590-12130 |
US $230.05 |
||
|
81591B
|
81591B
81591-12120 Lens And Body, Rear Lamp, Lh[12.2006 - 12.2009] AZE15#,GRE156 |
81591-12120 |
US $190.74 |
||
|
81591B
|
81591B
81591-12130 Lens And Body, Rear Lamp, LhREAR LAMP, LH [12.2009 -] AZE15#,GRE156 |
81591-12130 |
US $215.49 |
||
|
81594A
|
81594A
81594-12120 Gasket, Rear Lamp Lh[12.2006 - 12.2009] AZE15#,GRE156 |
81594-12120 |
US $8.30 |
||
|
81594B
|
81594B
81584-22040 Gasket, Rear Combination Lamp, Rh[12.2006 - 12.2009] AZE15#,GRE156 |
81584-22040 |
US $3.04 |
||
|
81952A
|
81952A
81952-12020 Cover, Rear Lamp, Rh[12.2006 - 06.2009] AZE15#,GRE156 |
81952-12020 |
US $6.70 |
||
|
81962
|
81962
81962-12020 Cover, Rear Lamp, Lh[12.2006 - 06.2009] AZE15#,GRE156 |
81962-12020 |
US $6.70 |
||
|
8149612040
|
8149612040
81496-12040 Guide, Rear Combination Lamp |
81496-12040 |
US $1.31 |
||
|
8149612050
|
8149612050
81496-12050 Guide, Rear Combination Lamp, No.2 |
81496-12050 |
US $2.72 |
||
|
8149628010
|
8149628010
81496-28010 Guide, Rear Combination Lamp |
81496-28010 |
from US $2.11 |
||
|
9017605018
|
9017605018
90176-05018 NUT, CAP |
90176-05018 |
from US $0.78 |
||
|
9017905102
|
9017905102
90179-05102 Nut |
90179-05102 |
from US $0.78 |
||
