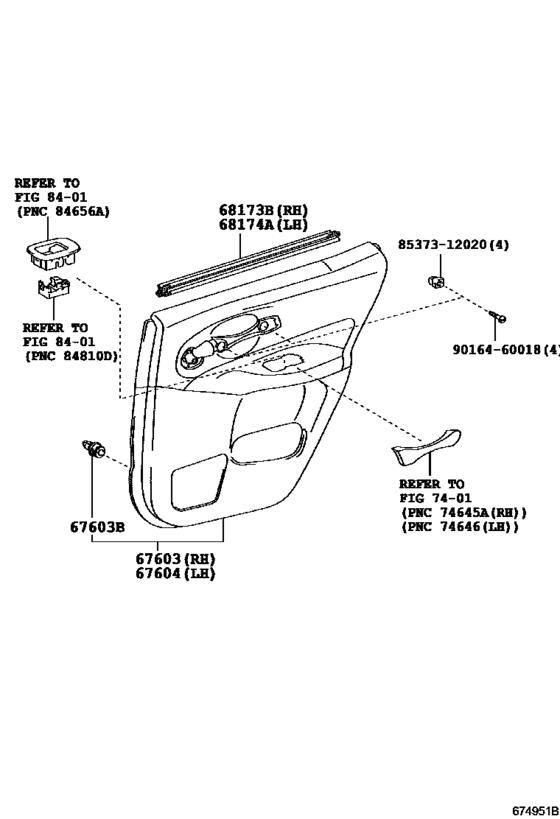

Rear Door Panel & Glass ([12.2006 - ] ﾄﾞｱﾄﾘﾑ (0612- )) Diagram Toyota BLADE
- Year
- 2007 - 2012
- Sales region
- Japan
- Frame
- GRE156
- grade
- G
- ENGINE
- 2GRFE
- From
- 08.2007
- To
- 04.2012
- Gear Shift Type
- 6FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67603
|
67603
67630-12E10-J2 Board Sub-Assy, Rear Door Trim, RhREAR DOOR TRIM, RH [10.2008 - 12.2009] GRE156..G “ＶＥＲＳＩＯＮ Ｌ” ＊（Ｌ）,DK.BLUE,TRIM8# |
67630-12E10-J2 |
US $480.48 |
||
|
67603
|
67603
67630-12G90-J0 Board Sub-Assy, Rear Door Trim, Rh[08.2007 - 12.2009] GRE156..G DK.BLUE,TRIM8# |
67630-12G90-J0 |
US $480.48 |
||
|
67603
|
67603
67630-12J10-J0 Board Sub-Assy, Rear Door Trim, Rh[08.2007 - 12.2009] GRE156..G 内装色＝アイボリ,DK.BLUE,TRIM0# |
67630-12J10-J0 |
US $480.48 |
||
|
67603
|
67603
67630-12K00-J6 Board Sub-Assy, Rear Door Trim, RhREAR DOOR TRIM, RH [12.2009 - 10.2011] GRE156 IVORY,TRIM0# |
67630-12K00-J6 |
US $398.94 |
||
| replacement | |||||
|
67603
|
67603
67630-12K01-J6 Board Sub-Assy, Rear Door Trim, Rh[12.2009 - 10.2011] GRE156 IVORY,TRIM0# |
67630-12K01-J6 |
US $398.94 |
||
|
67603
|
67603
67630-12K00-J7 Board Sub-Assy, Rear Door Trim, RhREAR DOOR TRIM, RH [12.2009 - 10.2011] GRE156 DK.BLUE,TRIM8# |
67630-12K00-J7 |
US $398.94 |
||
| replacement | |||||
|
67603
|
67603
67630-12K01-J7 Board Sub-Assy, Rear Door Trim, Rh[12.2009 - 10.2011] GRE156 DK.BLUE,TRIM8# |
67630-12K01-J7 |
US $398.94 |
||
|
67603
|
67603
67630-12K01-J6 Board Sub-Assy, Rear Door Trim, Rh[11.2011 - 04.2012] GRE156 DK.BLUE/IVORY,TRIM0# |
67630-12K01-J6 |
US $398.94 |
||
|
67603
|
67603
67630-12K01-J7 Board Sub-Assy, Rear Door Trim, Rh[11.2011 - 04.2012] GRE156 DK.BLUE/DK.BLUE,TRIM8# |
67630-12K01-J7 |
US $398.94 |
||
|
67603B
|
67603B
90467-09206 Clip, Front Air Shutter Seal[12.2006 - 12.2009] AZE15#,GRE156 |
90467-09206 |
from US $0.49 |
||
|
67604
|
67604
67640-12E00-J2 Board Sub-Assy, Rear Door Trim, LhREAR DOOR TRIM, LH [10.2008 - 12.2009] GRE156..G “ＶＥＲＳＩＯＮ Ｌ” ＊（Ｌ）,DK.BLUE,TRIM8# |
67640-12E00-J2 |
US $480.48 |
||
|
67604
|
67604
67640-12G80-J0 Board Sub-Assy, Rear Door Trim, Lh[08.2007 - 12.2009] GRE156..G DK.BLUE,TRIM8# |
67640-12G80-J0 |
US $480.48 |
||
|
67604
|
67604
67640-12J00-J0 Board Sub-Assy, Rear Door Trim, Lh[08.2007 - 12.2009] GRE156..G 内装色＝アイボリ,DK.BLUE,TRIM0# |
67640-12J00-J0 |
US $480.48 |
||
|
67604
|
67604
67640-12J90-J6 Board Sub-Assy, Rear Door Trim, LhREAR DOOR TRIM, LH [12.2009 - 10.2011] GRE156 IVORY,TRIM0# |
67640-12J90-J6 |
US $398.94 |
||
| replacement | |||||
|
67604
|
67604
67640-12J91-J6 Board Sub-Assy, Rear Door Trim, Lh[12.2009 - 10.2011] GRE156 IVORY,TRIM0# |
67640-12J91-J6 |
US $398.94 |
||
|
67604
|
67604
67640-12J90-J7 Board Sub-Assy, Rear Door Trim, LhREAR DOOR TRIM, LH [12.2009 - 10.2011] GRE156 DK.BLUE,TRIM8# |
67640-12J90-J7 |
US $398.94 |
||
| replacement | |||||
|
67604
|
67604
67640-12J91-J7 Board Sub-Assy, Rear Door Trim, Lh[12.2009 - 10.2011] GRE156 DK.BLUE,TRIM8# |
67640-12J91-J7 |
US $398.94 |
||
|
67604
|
67604
67640-12J91-J6 Board Sub-Assy, Rear Door Trim, Lh[11.2011 - 04.2012] GRE156 DK.BLUE/IVORY,TRIM0# |
67640-12J91-J6 |
US $398.94 |
||
|
67604
|
67604
67640-12J91-J7 Board Sub-Assy, Rear Door Trim, Lh[11.2011 - 04.2012] GRE156 DK.BLUE/DK.BLUE,TRIM8# |
67640-12J91-J7 |
US $398.94 |
||
|
68173B
|
68173B
68173-12300 Weatherstrip, Rear Door Glass, Inner Rh[12.2006 - 12.2009] AZE15#,GRE156 |
68173-12300 |
US $46.97 |
||
|
68174A
|
68174A
68174-12160 Weatherstrip, Rear Door Glass, Inner Lh[12.2006 - 12.2009] AZE15#,GRE156 |
68174-12160 |
US $46.97 |
||
|
8537312020
|
8537312020
85373-12020 Hose, Windshield Washer (from Joint To Nozzle) |
85373-12020 |
US $3.20 |
||
|
9016460018
|
9016460018
90164-60018 SCREW |
90164-60018 |
from US $0.84 |
||
