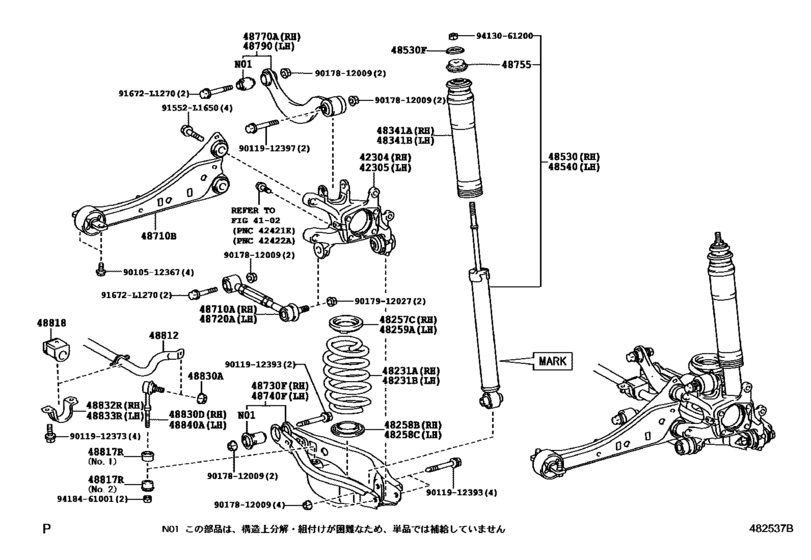

Rear Spring & Shock Absorber ([12.2006 - 08.2010] (0612-1008)AZE156,GRE156) Diagram Toyota BLADE
- Year
- 2007 - 2012
- Sales region
- Japan
- Frame
- GRE156
- grade
- G
- ENGINE
- 2GRFE
- From
- 08.2007
- To
- 04.2012
- Gear Shift Type
- 6FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42304
|
42304
42304-12240 Carrier Sub-Assy, Rear Axle, Rh[12.2006 - 12.2009] AZE15#,GRE156 |
42304-12240 |
US $157.25 |
||
|
42305
|
42305
42305-12240 Carrier Sub-Assy, Rear Axle, Lh[12.2006 - 12.2009] AZE15#,GRE156 |
42305-12240 |
US $194.48 |
||
|
48231A
|
48231A
48231-12B50 Spring, Coil, Rear Rh[12.2006 - 12.2009] AZE156,GRE156 |
48231-12B50 |
US $61.88 |
||
|
48231B
|
48231B
48231-12B50 Spring, Coil, Rear Rh[12.2006 - 12.2009] AZE156,GRE156 |
48231-12B50 |
US $61.88 |
||
|
48257C
|
48257C
48257-52010 Insulator, Rear Coil Spring, Upper[12.2006 - 12.2009] AZE15#,GRE156 |
48257-52010 |
from US $5.60 |
||
|
48258B
|
48258B
48258-12050 Insulator, Rear Coil Spring, Lower Rh[12.2006 - 12.2009] AZE15#,GRE156 |
48258-12050 |
US $6.56 |
||
|
48258C
|
48258C
48258-12050 Insulator, Rear Coil Spring, Lower Rh[12.2006 - 12.2009] AZE15#,GRE156 |
48258-12050 |
US $6.56 |
||
|
48259A
|
48259A
48257-52010 Insulator, Rear Coil Spring, Upper[12.2006 - 12.2009] AZE15#,GRE156 |
48257-52010 |
from US $5.60 |
||
|
48341A
|
48341A
48341-12220 Bumper, Rear Spring, No.1 Rh[04.2007 - 12.2009] AZE15#,GRE156 |
48341-12220 |
US $35.24 |
||
| replacement | |||||
|
48341A
|
48341A
48341-12240 Bumper, Rear Spring, No.1 Rh[04.2007 - 12.2009] AZE15#,GRE156 |
48341-12240 |
from US $34.77 |
||
|
48341B
|
48341B
48341-12220 Bumper, Rear Spring, No.1 Rh[04.2007 - 12.2009] AZE15#,GRE156 |
48341-12220 |
US $35.24 |
||
| replacement | |||||
|
48341B
|
48341B
48341-12240 Bumper, Rear Spring, No.1 Rh[04.2007 - 12.2009] AZE15#,GRE156 |
48341-12240 |
from US $34.77 |
||
|
48530
|
48530
48530-80450 Absorber Assy, Shock, Rear Rh[08.2007 - 10.2008] GRE156 マーク ４８５３０−１２８００ |
48530-80450 |
US $313.04 |
||
| replacement | |||||
|
48530
|
48530
48530-80522 Absorber Assy, Shock, Rear[08.2007 - 10.2008] GRE156 マーク ４８５３０−１２８００ |
48530-80522 |
US $125.80 |
||
|
48530
|
48530
48530-80522 Absorber Assy, Shock, Rear[10.2008 - 12.2009] GRE156 マーク ４８５３０−１２８０１ |
48530-80522 |
US $125.80 |
||
|
48530F
|
48530F
90948-02159 Retainer, Cushion, No.1(For Front Shock Absorber)[12.2006 - 12.2009] AZE15#,GRE156 |
90948-02159 |
from US $4.16 |
||
|
48540
|
48540
48530-80450 Absorber Assy, Shock, Rear Rh[08.2007 - 10.2008] GRE156 マーク ４８５３０−１２８００ |
48530-80450 |
US $313.04 |
||
| replacement | |||||
|
48540
|
48540
48530-80522 Absorber Assy, Shock, Rear[08.2007 - 10.2008] GRE156 マーク ４８５３０−１２８００ |
48530-80522 |
US $125.80 |
||
|
48540
|
48540
48530-80522 Absorber Assy, Shock, Rear[10.2008 - 12.2009] GRE156 マーク ４８５３０−１２８０１ |
48530-80522 |
US $125.80 |
||
|
48710A
|
48710A
48710-12270 Arm Assy, Rear Suspension, No.1 Rh[12.2006 - 12.2009] AZE15#,GRE156 |
48710-12270 |
from US $120.56 |
||
|
48710A
|
48710A
48710-72010 Arm Assy, Rear Suspension, No.1 Rh[08.2010 -] AZE15#,GRE156 |
48710-72010 |
from US $75.70 |
||
|
48710B
|
48710B
48760-12010 Arm Assy, Trailing, RearRight side [12.2006 - 12.2009] AZE15#,GRE156 右側 |
48760-12010 |
US $87.32 |
||
|
48710B
|
48710B
48780-12140 Arm Assy, Trailing, RearLeft side [12.2006 - 12.2009] AZE15#,GRE156 左側 |
48780-12140 |
US $87.32 |
||
|
48720A
|
48720A
48710-12270 Arm Assy, Rear Suspension, No.1 Rh[12.2006 - 12.2009] AZE15#,GRE156 |
48710-12270 |
from US $120.56 |
||
|
48720A
|
48720A
48710-72010 Arm Assy, Rear Suspension, No.1 Rh[08.2010 -] AZE15#,GRE156 |
48710-72010 |
from US $75.70 |
||
|
48730F
|
48730F
48730-12240 Arm Assy, Rear Suspension, No.2 Rh[12.2006 - 12.2009] AZE15#,GRE156 |
48730-12240 |
US $122.23 |
||
|
48740F
|
48740F
48730-12240 Arm Assy, Rear Suspension, No.2 Rh[12.2006 - 12.2009] AZE15#,GRE156 |
48730-12240 |
US $122.23 |
||
|
48755
|
48755
48755-12100 Support, Rear Suspension[04.2007 - 12.2009] AZE15#,GRE156 |
48755-12100 |
US $38.46 |
||
|
48770A
|
48770A
48770-12010 Arm Assy, Upper Control, Rear Rh[12.2006 - 12.2009] AZE15#,GRE156 |
48770-12010 |
from US $67.18 |
||
|
48790
|
48790
48770-12010 Arm Assy, Upper Control, Rear Rh[12.2006 - 12.2009] AZE15#,GRE156 |
48770-12010 |
from US $67.18 |
||
|
48812
|
48812
48812-12450 Bar, Stabilizer, Rear[12.2006 - 12.2009] AZE156,GRE156 |
48812-12450 |
US $82.99 |
||
|
48817R
|
48817R
48817-12020 Cushion, Stabilizer(For Rear)[12.2006 - 12.2009] AZE15#,GRE156 ＮＯ．１ |
48817-12020 |
from US $12.64 |
||
|
48817R
|
48817R
48817-12030 Cushion, Stabilizer(For Rear)[12.2006 - 12.2009] AZE15#,GRE156 ＮＯ．２ |
48817-12030 |
from US $11.36 |
||
|
48818
|
48818
48818-12310 Bush, Stabilizer, Rear[12.2006 - 12.2009] AZE156,GRE156 |
48818-12310 |
from US $13.44 |
||
|
48830A
|
48830A
94151-21241 Nut(For Front Stabilizer Link)[12.2006 - 12.2009] AZE15#,GRE156 |
94151-21241 |
from US $0.94 |
||
|
48830D
|
48830D
48830-12070 Link Assy, Rear Stabilizer, Rh[12.2006 - 12.2009] AZE156,GRE156 |
48830-12070 |
from US $56.94 |
||
|
48832R
|
48832R
48832-12050 Bracket, Rear Stabilizer Bar, No.1 Rh[12.2006 - 12.2009] AZE156,GRE156 |
48832-12050 |
US $9.17 |
||
|
48833R
|
48833R
48832-12050 Bracket, Rear Stabilizer Bar, No.1 Rh[12.2006 - 12.2009] AZE156,GRE156 |
48832-12050 |
US $9.17 |
||
|
48840A
|
48840A
48830-12070 Link Assy, Rear Stabilizer, Rh[12.2006 - 12.2009] AZE156,GRE156 |
48830-12070 |
from US $56.94 |
||
|
91552L1650
|
91552L1650
91552-L1650 Bolt |
91552-L1650 |
US $5.44 |
||
|
91672L1270
|
91672L1270
91672-L1270 New Genuine Part |
91672-L1270 |
US $4.32 |
||
|
9010512367
|
9010512367
90105-12367 New Genuine Part |
90105-12367 |
US $3.52 |
||
|
9011912373
|
9011912373
90119-12373 New Genuine Part |
90119-12373 |
US $3.04 |
||
|
9011912393
|
9011912393
90119-12393 BOLT WWASHER |
90119-12393 |
US $4.32 |
||
|
9011912397
|
9011912397
90119-12397 New Genuine Part |
90119-12397 |
US $5.44 |
||
|
9017812009
|
9017812009
90178-12009 Nut(For Suspension Lower Arm Shaft) |
90178-12009 |
from US $1.74 |
||
|
9017912027
|
9017912027
90179-12027 Nut, Castle (For Front Lower Ball Joint Setting) |
90179-12027 |
from US $1.48 |
||
|
9413061200
|
9413061200
94130-61200 Nut |
94130-61200 |
from US $0.99 |
||
|
9418461001
|
9418461001
94184-61001 Nut(For Front Stabilizer Bar) |
94184-61001 |
from US $0.78 |
||
