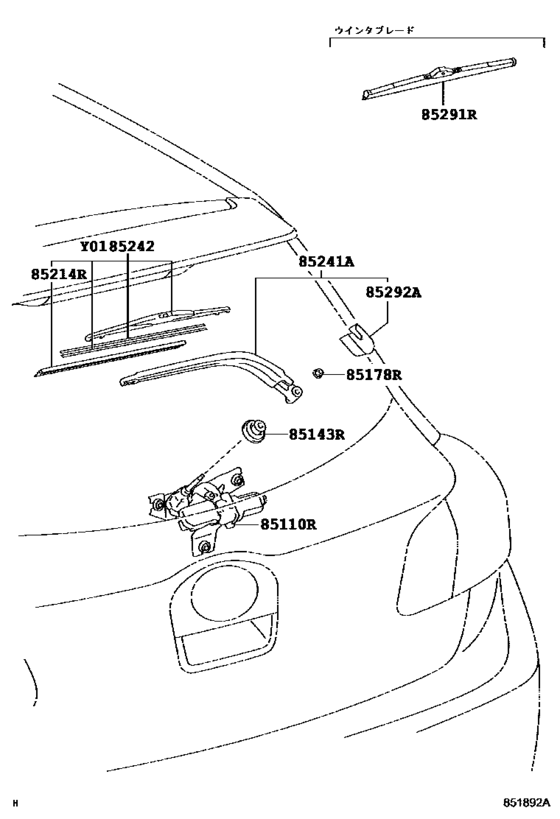

Rear Wiper ([12.2006 - ] (0612- )) Diagram Toyota BLADE
- Year
- 2007 - 2012
- Sales region
- Japan
- Frame
- GRE156
- grade
- G
- ENGINE
- 2GRFE
- From
- 08.2007
- To
- 04.2012
- Gear Shift Type
- 6FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110R
|
85110R
85130-12890 Motor Assy, Rear Wiper[12.2006 - 12.2009] AZE15#,GRE156 |
85130-12890 |
US $375.65 |
||
|
85143R
|
85143R
85143-12800 Grommet, Rear Wiper Motor[12.2006 - 12.2009] AZE15#,GRE156 |
85143-12800 |
US $3.49 |
||
|
85178R
|
85178R
90179-06158 Nut, Rear Wiper Link Pivot, No.2[12.2006 - 12.2009] AZE15#,GRE156 |
90179-06158 |
from US $1.03 |
||
|
85214R
|
85214R
85214-12320 Rubber, Rear Wiper[12.2006 - 12.2009] AZE15#,GRE156 |
85214-12320 |
US $9.60 |
||
|
85241A
|
85241A
85241-12110 Arm, Rear Wiper[12.2006 - 12.2009] AZE15#,GRE156 |
85241-12110 |
US $28.25 |
||
|
85242
|
85242
85242-12100 Blade, Rr Wiper[12.2006 - 12.2009] AZE15#,GRE156 |
85242-12100 |
US $13.45 |
||
|
85291R
|
85291R
85291-12080 Blade,rear Wiper, Winter[12.2006 - 12.2009] AZE15#,GRE156 ウィンタブレード（ＤＯＰ） |
85291-12080 |
US $36.48 |
||
|
85292A
|
85292A
85244-13010 Cap, Rear Wiper Arm Head[12.2006 - 12.2009] AZE15#,GRE156 |
85244-13010 |
from US $3.85 |
