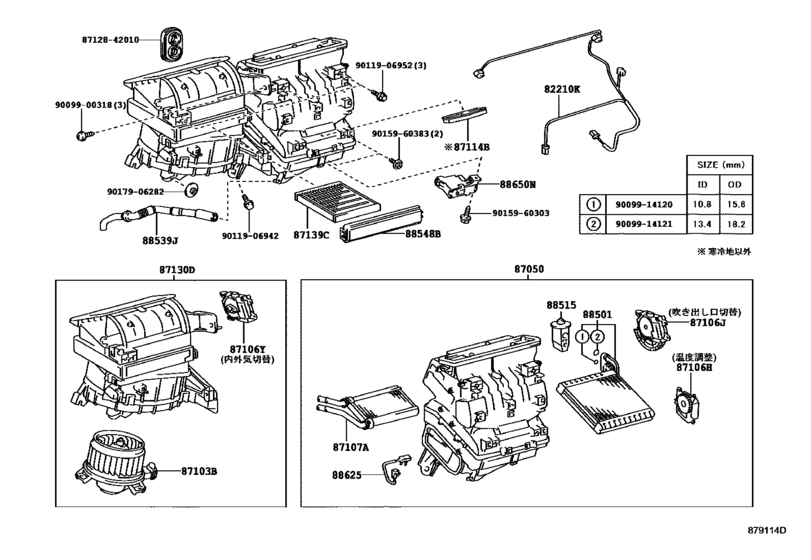

Heating & Air Conditioning - Cooler Unit ([12.2006 - ] ｵｰﾄ ｴｱｺﾝ (0612- )STD) Diagram Toyota BLADE
- Year
- 2007 - 2009
- Sales region
- Japan
- Frame
- GRE156
- grade
- STD
- ENGINE
- 2GRFE
- From
- 08.2007
- To
- 12.2009
- Gear Shift Type
- 6FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210K
|
82210K
82212-12020
Harness Assy, Air Conditioner
[12.2006 - 12.2009] AZE15#,GRE156..STD |
82212-12020 |
— | ||
|
87050
|
87050
87050-12350 Radiator Assy, Air Conditioner[12.2006 - 12.2009] AZE15#,GRE156..STD |
87050-12350 |
US $1,147.33 |
||
|
87103B
|
87103B
87103-12060 Motor Sub-Assy, Blower W/fan[12.2006 - 12.2009] AZE15#,GRE156..STD |
87103-12060 |
US $256.84 |
||
|
87106H
|
87106H
87106-12170 Damper Servo Sub-Assy, Air Conditioner Radiator, No.1[12.2006 - 12.2009] AZE15#,GRE156..G 右側; AZE15#,GRE156..STD |
87106-12170 |
US $132.87 |
||
|
87106J
|
87106J
87106-42100 Damper Servo Sub-Assy, Air Conditioner Radiator, No.2[12.2006 - 12.2009] AZE15#,GRE156 |
87106-42100 |
from US $89.11 |
||
|
87106Y
|
87106Y
87106-42120 Servo Sub-Assy, Damper, No.1[12.2006 - 12.2009] AZE15#,GRE156 |
87106-42120 |
US $110.07 |
||
|
87107A
|
87107A
87107-42170 Unit Sub-Assy, Heater Radiator[12.2006 - 12.2009] AZE15#,GRE156 |
87107-42170 |
US $414.26 |
||
|
87114B
|
87114B
87114-12080
Cover, Heater
[12.2006 - 12.2009] AZE15#,GRE156; AZE15#,GRE156 寒冷地仕様 |
87114-12080 |
— | ||
|
87130D
|
87130D
87130-12530
Blower Assy
[12.2006 - 05.2008] AZE15#,GRE156..STD |
87130-12530 |
— | ||
| replacement | |||||
|
87130D
|
87130D
87130-12531 Blower Assy[12.2006 - 05.2008] AZE15#,GRE156..STD |
87130-12531 |
US $291.78 |
||
|
87130D
|
87130D
87130-12531 Blower Assy[06.2008 - 12.2009] AZE15#,GRE156..STD |
87130-12531 |
US $291.78 |
||
|
87139C
|
87139C
87139-30040 Filter, Clean Air[12.2006 - 12.2009] AZE15#,GRE156 花粉フィルタ |
87139-30040 |
from US $30.40 |
||
| replacement | |||||
|
87139C
|
87139C
87139-YZZ45 Filter, Clean Air[12.2006 - 12.2009] AZE15#,GRE156 花粉フィルタ |
87139-YZZ45 |
US $125.66 |
||
|
87139C
|
87139C
87139-50060
Filter, Clean Air (Charcoal)
[12.2006 - 12.2009] AZE15#,GRE156 脱臭フィルタ |
87139-50060 |
— | ||
| replacement | |||||
|
87139C
|
87139C
87139-50100 Clean Air Filter (Charcoal type)[12.2006 - 12.2009] AZE15#,GRE156 脱臭フィルタ |
87139-50100 |
from US $60.80 |
||
|
88501
|
88501
88501-26210
Evaporator Sub-Assy, Cooler, No.1
[12.2006 - 05.2008] AZE15#,GRE156 |
88501-26210 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-26211 Evaporator Sub-Assy, Cooler, No.1[12.2006 - 05.2008] AZE15#,GRE156 |
88501-26211 |
from US $405.35 |
||
|
88501
|
88501
88501-26211 Evaporator Sub-Assy, Cooler, No.1[06.2008 - 05.2009] AZE15#,GRE156..STD |
88501-26211 |
from US $405.35 |
||
|
88501
|
88501
88501-72020 Evaporator Sub-Assy, Cooler, No.1COOLER, NO.1 [06.2009 - 12.2009] AZE15#,GRE156..STD |
88501-72020 |
US $504.29 |
||
|
88515
|
88515
88515-42090 Valve, Cooler Expansion[12.2006 - 01.2009] AZE15#,GRE156 |
88515-42090 |
US $109.52 |
||
|
88539J
|
88539J
88539-12190
Hose, Cooler Unit Drain, No.1
[12.2006 - 12.2009] AZE15#,GRE156 |
88539-12190 |
— | ||
|
88548B
|
88548B
88548-42010
Case, Air Filter
[12.2006 - 12.2009] AZE15#,GRE156 |
88548-42010 |
— | ||
|
88625
|
88625
88625-26090 Thermistor, Cooler, No.1[12.2006 - 12.2009] AZE15#,GRE156 |
88625-26090 |
from US $8.04 |
||
| replacement | |||||
|
88625
|
88625
88620-02110 Thermistor, Cooler, No.1COOLER, NO.1 [12.2006 - 12.2009] AZE15#,GRE156 |
88620-02110 |
US $10.20 |
||
|
88650N
|
88650N
88650-12D20
Amplifier Assy, Air Conditioner
[08.2007 - 12.2009] GRE156..STD |
88650-12D20 |
— | ||
|
8712842010
|
8712842010
87128-42010
Grommet (For Heater Pipe)
|
87128-42010 |
— | ||
|
9009900318
|
9009900318
90099-00318
New Genuine Part
|
90099-00318 |
— | ||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $2.22 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.79 |
||
|
9011906942
|
9011906942
90119-06942 BOLT WWASHER |
90119-06942 |
from US $0.96 |
||
|
9011906952
|
9011906952
90119-06952 New Genuine Part |
90119-06952 |
US $0.96 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
| replacement | |||||
|
9015960383
|
9015960383
90159-A0010 SCREW WWASHER TAPP |
90159-A0010 |
from US $2.44 |
||
|
9017906282
|
9017906282
90179-06282 New Genuine Part |
90179-06282 |
US $0.67 |
||
