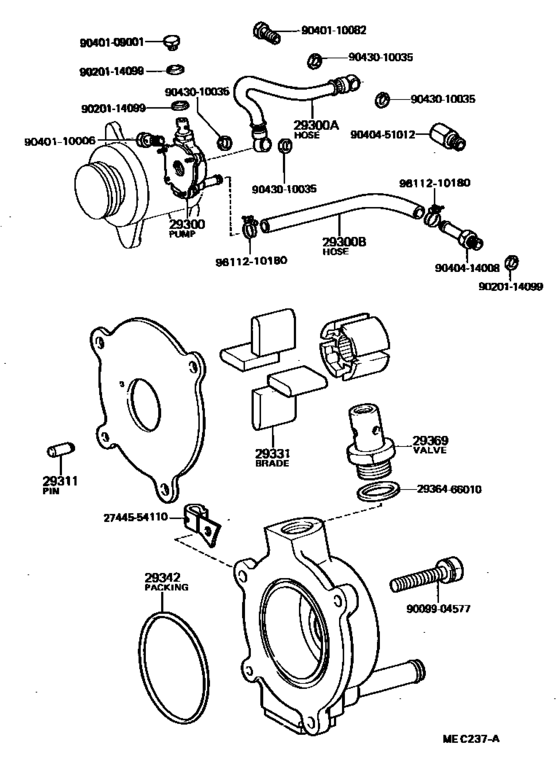

Vacuum Pump ([10.1982 - ] (8210- )) Diagram Toyota BLIZZARD
- Year
- 1982 - 1984
- Sales region
- Japan
- Frame
- LD10
- grade
- DLX
- body
- TP
- ENGINE
- L
- From
- 10.1982
- To
- 04.1984
- Gear Shift Type
- 4F
- Seating Capacity
- 06S
- Roof,door Type
- TSD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
29300
|
29300
29300-54021
Pump Assy, Vacuum
[03.1980 - 10.1982] L..LD10 12V 40A,ALTERNATOR |
29300-54021 |
— | ||
|
29300
|
29300
29300-54040 Pump Assy, Vacuum[10.1981 - 10.1982] L..LD10 12V 55A,ALTERNATOR |
29300-54040 |
US $582.40 |
||
| replacement | |||||
|
29300
|
29300
29300-54021
Pump Assy, Vacuum
[10.1981 - 10.1982] L..LD10 12V 55A,ALTERNATOR |
29300-54021 |
— | ||
|
29300
|
29300
29300-54050
Pump Assy, Vacuum
[10.1982 - 04.1984] L..LD10 12V 40A,55A,ALTERNATOR |
29300-54050 |
— | ||
|
29300A
|
29300A
90923-02056
Hose, Vacuum Pump Oil Inlet
[03.1980 - 10.1982] L..LD10 |
90923-02056 |
— | ||
|
29300A
|
29300A
90923-02077 Hose, Vacuum Pump Oil Inlet[10.1982 - 04.1984] L..LD10 |
90923-02077 |
from US $32.66 |
||
|
29300B
|
29300B
90923-02052
Hose, Vacuum Pump Oil Outlet
[03.1980 - 10.1982] L..LD10 |
90923-02052 |
— | ||
|
29300B
|
29300B
90923-02076 Hose, Vacuum Pump Oil Outlet[10.1982 - 04.1984] L..LD10 |
90923-02076 |
US $13.40 |
||
|
29311
|
29311
29311-76010 Pin, Vacuum Pump Dowel, No.1[10.1982 - 04.1984] L..LD10 |
29311-76010 |
US $1.86 |
||
|
29311
|
29311
90099-08082
Pin, Vacuum Pump Dowel, No.1
[03.1980 - 10.1982] L..LD10 |
90099-08082 |
— | ||
| replacement | |||||
|
29311
|
29311
29311-76010 Pin, Vacuum Pump Dowel, No.1[03.1980 - 10.1982] L..LD10 |
29311-76010 |
US $1.86 |
||
|
29331
|
29331
29331-56010
Blade, Vacuum Pump, A
[03.1980 - 10.1982] L..LD10 |
29331-56010 |
— | ||
|
29331
|
29331
29331-56070 Blade, Vacuum Pump, A[10.1982 - 04.1984] L..LD10 |
29331-56070 |
from US $4.89 |
||
|
29342
|
29342
96740-02063 Packing, Vacuum Pump[03.1980 - 04.1984] L..LD10 |
96740-02063 |
from US $2.76 |
||
|
29369
|
29369
29369-54010
Valve Sub-Assy, Check
[03.1980 - 10.1982] L..LD10 |
29369-54010 |
— | ||
|
29369
|
29369
29369-56070
Valve Sub-Assy, Check
[10.1982 - 04.1984] L..LD10 |
29369-56070 |
— | ||
|
2744554110
|
2744554110
27445-54110
New Genuine Part
|
27445-54110 |
— | ||
|
2936466010
|
2936466010
29364-66010 Washer, Vacuum Pump |
29364-66010 |
US $2.20 |
||
|
9009904577
|
9009904577
90099-04577 New Genuine Part |
90099-04577 |
US $0.98 |
||
|
9020114099
|
9020114099
90201-14099 Gasket(For Vacuum Pump Union) |
90201-14099 |
from US $1.41 |
||
|
9040109001
|
9040109001
90401-09001 Bolt, Union(For Vacuum Pump Union) |
90401-09001 |
from US $2.20 |
||
|
9040110006
|
9040110006
90401-10006 Bolt, Union(For Turbo Oil Inlet Pipe) |
90401-10006 |
from US $2.64 |
||
|
9040110082
|
9040110082
90401-10082 Valve, Rocker Shaft Oil Pipe Union |
90401-10082 |
US $4.22 |
||
|
9040414008
|
9040414008
90404-14008 New Genuine Part |
90404-14008 |
US $10.19 |
||
|
9040451012
|
9040451012
90404-51012 UNION VACCUM HOSE |
90404-51012 |
US $2.20 |
||
|
9043010035
|
9043010035
90430-10035 Gasket(For Water Hole) |
90430-10035 |
from US $0.80 |
||
| replacement | |||||
|
9043010035
|
9043010035
9008943009
Gasket V P Oil Inlet
|
9008943009 |
— | ||
|
9611210180
|
9611210180
96112-10180 Clamp(For Oil Pipe) |
96112-10180 |
US $1.79 |
||
