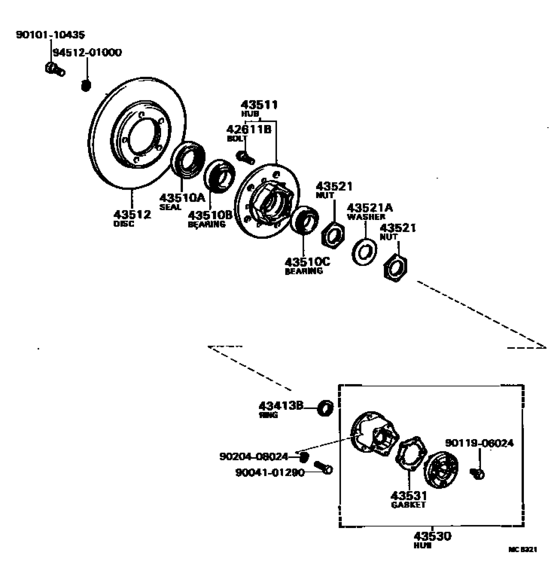

Front Axle Hub ([01.1982 - ] (8201- )) Diagram Toyota BLIZZARD
- Year
- 1982 - 1984
- Sales region
- General
- Frame
- LD10
- ENGINE
- L
- TRANSMISSION
- MTM
- From
- 01.1982
- To
- 04.1984
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42611B
|
42611B
90049-12027 Bolt, Hub (For Front Axle)[01.1982 - 04.1984] LD10 |
90049-12027 |
US $7.28 |
||
| replacement | |||||
|
42611B
|
42611B
90049-12053 Bolt, Hub (For Front Axle)[01.1982 - 04.1984] LD10 |
90049-12053 |
US $7.13 |
||
|
43413B
|
43413B
90045-20075 Ring, Drive Shaft Snap[01.1982 - 04.1984] LD10 |
90045-20075 |
US $7.28 |
||
|
43510A
|
43510A
90043-11080
Seal, Oil (For Front Axle Hub)
[01.1982 - 04.1984] LD10 |
90043-11080 |
— | ||
|
43510B
|
43510B
90043-66015 Bearing, Tapered Roller (For Front Axle Inner Bearing)[01.1982 - 04.1984] LD10 |
90043-66015 |
US $52.12 |
||
|
43510C
|
43510C
90043-66014 Bearing, Tapered Roller (For Front Axle Outer Bearing)[01.1982 - 04.1984] LD10 |
90043-66014 |
US $44.12 |
||
|
43511
|
43511
43502-87603 Hub, Front AxleFRONT AXLE [01.1982 - 04.1984] LD10 |
43502-87603 |
US $216.94 |
||
|
43512
|
43512
43512-87603 Disc, Front[01.1982 - 04.1984] LD10 |
43512-87603 |
US $149.97 |
||
| replacement | |||||
|
43512
|
43512
43512-87607 Disc, Front[01.1982 - 04.1984] LD10 |
43512-87607 |
US $151.42 |
||
|
43521
|
43521
43521-87601 Nut, Front Wheel Adjusting[01.1982 - 04.1984] LD10 |
43521-87601 |
US $18.64 |
||
|
43521A
|
43521A
90042-14006
Washer, Claw (For Front Wheel Adjusting Nut)
[01.1982 - 04.1984] LD10 |
90042-14006 |
— | ||
|
43530
|
43530
43530-69025 Hub Assy, Free WheelFREE WHEEL [01.1982 - 04.1984] LD10 |
43530-69025 |
US $388.75 |
||
|
43531
|
43531
43531-87601 Gasket, Free Wheel Hub[01.1982 - 04.1984] LD10 |
43531-87601 |
US $8.59 |
||
|
9004101290
|
9004101290
90041-01290
New Genuine Part
|
90041-01290 |
— | ||
|
9010110435
|
9010110435
90101-10435 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
90101-10435 |
US $2.56 |
||
|
9011906024
|
9011906024
90119-06024
BOLTWWASHER
|
90119-06024 |
— | ||
| replacement | |||||
|
9011906024
|
9011906024
91641-80616 BOLT W-WASHER |
91641-80616 |
from US $1.76 |
||
|
9020408024
|
9020408024
90204-08024 Washer, Spring(For Rear Differential Case)SPRING(FOR REAR DIFFERENTIAL CASE) |
90204-08024 |
US $1.89 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.76 |
||
