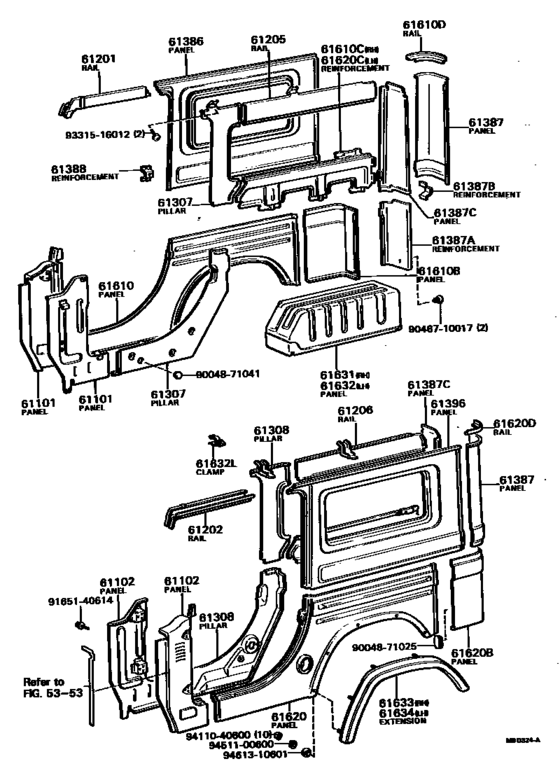

Side Member ([01.1982 - ] (8201- )) Diagram Toyota BLIZZARD
- Year
- 1982 - 1984
- Sales region
- General
- Frame
- LD10
- ENGINE
- L
- TRANSMISSION
- MTM
- From
- 01.1982
- To
- 04.1984
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61101
|
61101
55703-87605
Panel Sub-Assy, Cowl Side, Rh
[01.1982 - 04.1984] LD10 INNER |
55703-87605 |
— | ||
|
61101
|
61101
55706-87606 Panel Sub-Assy, Cowl Side, RhCOWL SIDE, RH [01.1982 - 04.1984] LD10 OUTER |
55706-87606 |
US $138.32 |
||
|
61102
|
61102
55704-87605
Panel Sub-Assy, Cowl Side, Lh
[01.1982 - 04.1984] LD10 INNER |
55704-87605 |
— | ||
|
61102
|
61102
55707-87606 Panel Sub-Assy, Cowl Side, LhCOWL SIDE, LH [01.1982 - 04.1984] LD10 OUTER |
55707-87606 |
US $138.32 |
||
|
61201
|
61201
61201-87603
Rail Sub-Assy, Roof Side, Rh
[01.1982 - 04.1984] LD10 |
61201-87603 |
— | ||
|
61202
|
61202
61202-87603
Rail Sub-Assy, Roof Side, Lh
[01.1982 - 04.1984] LD10 |
61202-87603 |
— | ||
|
61205
|
61205
61206-87602
Rail Sub-Assy, Roof Side, Inner Rear Rh
[01.1982 - 04.1984] LD10 |
61206-87602 |
— | ||
|
61206
|
61206
61207-87602
Rail Sub-Assy, Roof Side, Inner Rear Lh
[01.1982 - 04.1984] LD10 |
61207-87602 |
— | ||
|
61307
|
61307
61305-87605
Pillar Sub-Assy, Center Body, Inner Rh
[01.1982 - 04.1984] LD10 UPR |
61305-87605 |
— | ||
|
61307
|
61307
61307-87611
Pillar Sub-Assy, Center Body, Inner Rh
[01.1982 - 04.1984] LD10 LWR |
61307-87611 |
— | ||
|
61308
|
61308
61306-87605
Pillar Sub-Assy, Center Body, Inner Lh
[01.1982 - 04.1984] LD10 UPR |
61306-87605 |
— | ||
|
61308
|
61308
61308-87610
Pillar Sub-Assy, Center Body, Inner Lh
[01.1982 - 04.1984] LD10 LWR |
61308-87610 |
— | ||
|
61386
|
61386
61386-87603
Panel, Rear Side, Upper Rh
[01.1982 - 04.1984] LD10 |
61386-87603 |
— | ||
|
61387
|
61387
61387-87601
Panel, Rear Body Corner, Upper
[01.1982 - 04.1984] LD10 RH |
61387-87601 |
— | ||
|
61387
|
61387
61397-87601
Panel, Rear Body Corner, Upper
[01.1982 - 04.1984] LD10 LH |
61397-87601 |
— | ||
|
61387A
|
61387A
58305-87601
Reinforcement Sub-Assy, Rear Body Corner
[01.1982 - 04.1984] LD10 RH |
58305-87601 |
— | ||
|
61387A
|
61387A
58322-87602
Reinforcement Sub-Assy, Rear Body Corner
[01.1982 - 04.1984] LD10 LH |
58322-87602 |
— | ||
|
61387B
|
61387B
61351-87602
Reinforcement, Swing Gate Hinge
[01.1982 - 04.1984] LD10 |
61351-87602 |
— | ||
|
61387C
|
61387C
61735-87601
Panel, Rear Pillar Inner, Upper
[01.1982 - 04.1984] LD10 RH |
61735-87601 |
— | ||
|
61387C
|
61387C
61736-87601
Panel, Rear Pillar Inner, Upper
[01.1982 - 04.1984] LD10 LH |
61736-87601 |
— | ||
|
61388
|
61388
61388-87601
Reinforcement, Seat Belt Anchorage
[01.1982 - 04.1984] LD10 |
61388-87601 |
— | ||
|
61396
|
61396
61396-87603
Panel, Rear Side, Upper Lh
[01.1982 - 04.1984] LD10 |
61396-87603 |
— | ||
|
61610
|
61610
61071-87604
Panel Assy, Rear Body Side, Rh
[01.1982 - 04.1984] LD10 |
61071-87604 |
— | ||
|
61610B
|
61610B
58301-87605
Panel Sub-Assy, Rear Body Corner, Rh
[01.1982 - 04.1984] LD10 |
58301-87605 |
— | ||
|
61610C
|
61610C
61204-87604
Reinforcement Sub-Assy, Rear Side, Lower Rh
[01.1982 - 04.1984] LD10 |
61204-87604 |
— | ||
|
61610D
|
61610D
61332-87601
Rail, Rear Corner Panel, Upper Rh
[01.1982 - 04.1984] LD10 |
61332-87601 |
— | ||
|
61620
|
61620
61072-87604
Panel Assy, Rear Body Side, Lh
[01.1982 - 04.1984] LD10 |
61072-87604 |
— | ||
|
61620B
|
61620B
58302-87604
Panel Sub-Assy, Rear Body Corner, Lh
[01.1982 - 04.1984] LD10 |
58302-87604 |
— | ||
|
61620C
|
61620C
61205-87603
Reinforcement Sub-Assy, Rear Side, Lower Lh
[01.1982 - 04.1984] LD10 |
61205-87603 |
— | ||
|
61620D
|
61620D
61333-87601
Rail, Rear Corner Panel, Upper Lh
[01.1982 - 04.1984] LD10 |
61333-87601 |
— | ||
|
61631
|
61631
58203-87608 Panel, Quarter Wheel House, RhQUARTER WHEEL HOUSE, RH [01.1982 - 01.1983] LD10 |
58203-87608 |
US $288.29 |
||
|
61631
|
61631
58203-87612
Panel, Quarter Wheel House, Rh
[01.1983 - 04.1984] LD10 |
58203-87612 |
— | ||
|
61632
|
61632
58204-87605 Panel, Quarter Wheel House, LhQUARTER WHEEL HOUSE, LH [01.1982 - 01.1983] LD10 |
58204-87605 |
US $288.29 |
||
|
61632
|
61632
58204-87608
Panel, Quarter Wheel House, Lh
[01.1983 - 04.1984] LD10 |
58204-87608 |
— | ||
|
61632L
|
61632L
74715-87602
Clamp, Jack Handle
[01.1982 - 04.1984] LD10 |
74715-87602 |
— | ||
|
61633
|
61633
61681-87601
Extension, Wheel House, Rh
[01.1982 - 04.1984] LD10 |
61681-87601 |
— | ||
|
61634
|
61634
61682-87601
Extension, Wheel House, Lh
[01.1982 - 04.1984] LD10 |
61682-87601 |
— | ||
|
9004871025
|
9004871025
90048-71025
New Genuine Part
|
90048-71025 |
— | ||
|
9004871041
|
9004871041
90048-71041 New Genuine Part |
90048-71041 |
US $1.31 |
||
|
9046710017
|
9046710017
90467-10017 Clip(For Rear Door Trim Board) |
90467-10017 |
US $2.48 |
||
| replacement | |||||
|
9046710017
|
9046710017
90467-10017-22 Clip(For Front Door No.2 Weatherstrip) |
90467-10017-22 |
US $1.44 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9331516012
|
9331516012
93315-16012 New Genuine Part |
93315-16012 |
US $2.77 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.70 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9461310601
|
9461310601
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.12 |
||
