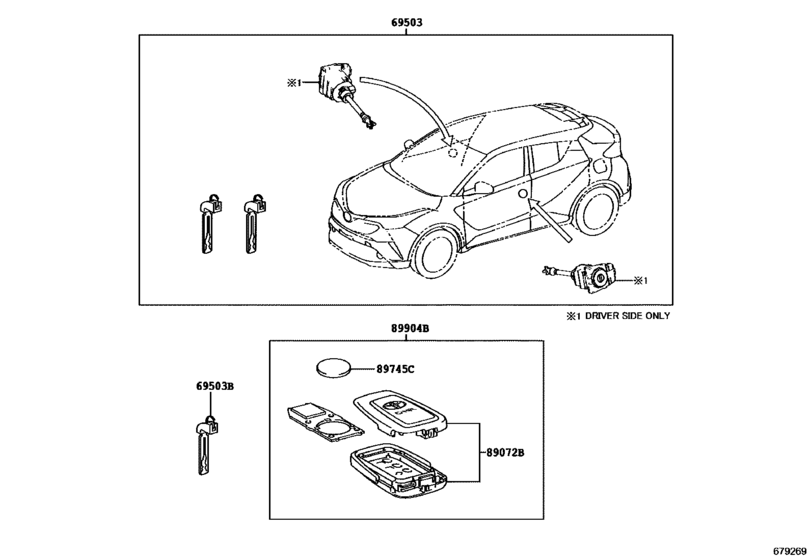

Lock Cylinder Set ([10.2016 - ] WITH(SMART ENTRY) (1610- )) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- NGX10
- ENGINE
- 8NRFTS
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 10.2016
- Gear Shift Type
- 6F
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69503
|
69503
69005-F4040
Cylinder Set, Lock
[10.2016 -] NGX10,50..RHD..E |
69005-F4040 |
— | ||
|
69503B
|
69503B
69515-47020
Key, Cut
[10.2016 -] NGX10,50..E MASTER KEY,W(*68) |
69515-47020 |
— | ||
|
89072B
|
89072B
89072-F4040
Housing Set, Door Control Transmitter (For Smart Key)
[10.2016 -] NGX10,50..E |
89072-F4040 |
— | ||
|
89745C
|
89745C
89745-50020 Battery, Transmitter[10.2016 -] NGX10,50..E CR2032 |
89745-50020 |
from US $7.88 |
||
|
89904B
|
89904B
89904-F4040 Transmitter Sub-Assy, Electrical Key[10.2016 -] NGX10,50..E |
89904-F4040 |
US $234.70 |
