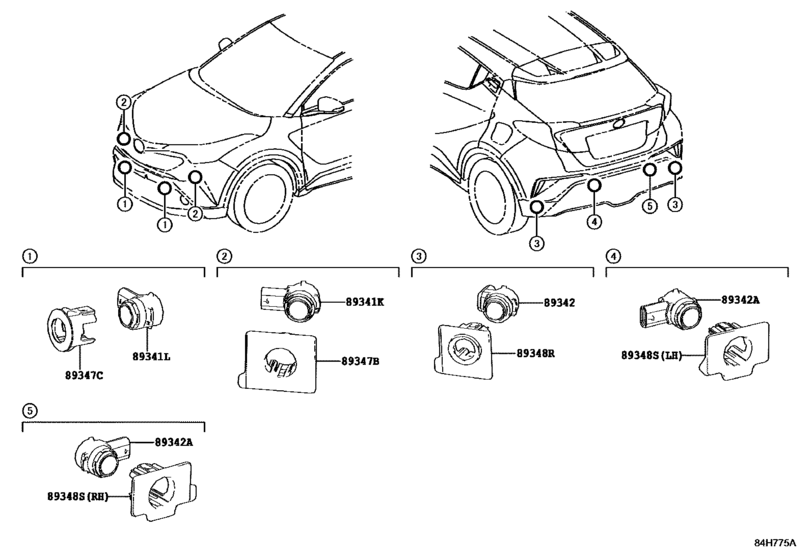

Clearance & Back Sonar ([12.2016 - ] SENSOR (1612- )) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- NGX10
- grade
- LUX
- ENGINE
- 8NRFTS
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 12.2016
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89341K
|
89341K
89341-0W010-A0 Sensor, Ultrasonic, Front Corner[12.2016 -] NGX10,50..ACTV WHITE PEARL CS.,070; NGX10,50..LUX WHITE PEARL CS.,070 ,2NA |
89341-0W010-A0 |
US $142.68 |
||
|
89341K
|
89341K
89341-0W010-B0 Sensor, Ultrasonic, Front Corner[12.2016 -] NGX10,50..ACTV METAL STREAM ME,1K0; NGX10,50..LUX METAL STREAM ME,1K0 ,2NK |
89341-0W010-B0 |
US $118.08 |
||
|
89341K
|
89341K
89341-0W010-C0 Sensor, Ultrasonic, Front Corner[12.2016 -] NGX10,50 BLACK MC.,209 |
89341-0W010-C0 |
US $142.68 |
||
|
89341K
|
89341K
89341-0W010-D0 Sensor, Ultrasonic, Front Corner[12.2016 -] NGX10,50 RED MC.,3T3 |
89341-0W010-D0 |
US $118.08 |
||
|
89341K
|
89341K
89341-0W010-E0 Sensor, Ultrasonic, Front Corner[12.2016 -] NGX10,50..ACTV DK. BROWN M.M.,4U3; NGX10,50..LUX DK. BROWN M.M.,2NC ,4U3 |
89341-0W010-E0 |
US $148.51 |
||
|
89341K
|
89341K
89341-0W010-F0 Sensor, Ultrasonic, Front Corner[12.2016 -] NGX10,50..ACTV YELLOW,5A3; NGX10,50..LUX YELLOW,2JU ,2PQ ,5A3 |
89341-0W010-F0 |
US $148.51 |
||
|
89341K
|
89341K
89341-0W010-G0 Sensor, Ultrasonic, Front Corner[12.2016 -] NGX10,50..ACTV RADIANT GREEN ME.,6W9; NGX10,50..LUX RADIANT GREEN ME.,2NJ ,6W9 |
89341-0W010-G0 |
US $148.51 |
||
|
89341K
|
89341K
89341-0W010-J0 Sensor, Ultrasonic, Front Corner[12.2016 -] NGX10,50..ACTV BLUE ME.,8T7; NGX10,50..LUX BLUE ME.,2PR ,8T7 |
89341-0W010-J0 |
US $148.51 |
||
|
89341L
|
89341L
89341-F4020-C1 Sensor, Ultrasonic, Front Center[12.2016 -] NGX10,50 BLACK |
89341-F4020-C1 |
US $118.08 |
||
|
89342
|
89342
89341-F4030-C1 Sensor, Ultrasonic, Rear Corner[12.2016 -] NGX10,50 BLACK |
89341-F4030-C1 |
US $118.08 |
||
|
89342A
|
89342A
89341-F4020-C1 Sensor, Ultrasonic, Front Center[12.2016 -] NGX10,50 BLACK |
89341-F4020-C1 |
US $118.08 |
||
|
89347B
|
89347B
89348-F4030 Retainer, Ultrasonic Sensor, Front Corner[12.2016 -] NGX10,50 |
89348-F4030 |
US $6.45 |
||
|
89347C
|
89347C
89348-F4020-C1 Retainer, Ultrasonic Sensor, Front Center[12.2016 -] NGX10,50 BLACK |
89348-F4020-C1 |
US $8.60 |
||
|
89348R
|
89348R
89348-F4140-C0 Retainer, Ultrasonic Sensor, Rear Corner[12.2016 -] NGX10,50 BLACK |
89348-F4140-C0 |
US $8.60 |
||
|
89348S
|
89348S
89348-F4120 Retainer, Ultrasonic Sensor, Rear Center (Lh)[12.2016 -] NGX10,50 LH |
89348-F4120 |
US $6.45 |
||
|
89348S
|
89348S
89348-F4130 Retainer, Ultrasonic Sensor, Rear Center (Rh)[12.2016 -] NGX10,50 RH |
89348-F4130 |
US $6.45 |
