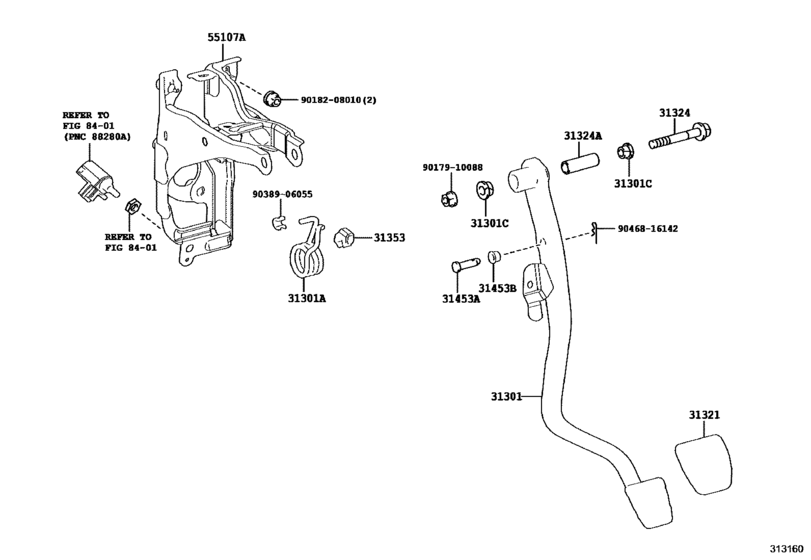

Clutch Pedal & Flexible Hose ([12.2016 - ] (1612- )6F) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- NGX10
- grade
- LUX
- ENGINE
- 8NRFTS
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 12.2016
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31301
|
31301
31301-F4020
Pedal Sub-Assy, Clutch
[12.2016 -] NGX10..6F |
31301-F4020 |
— | ||
|
31301A
|
31301A
90949-03068 Spring(For Clutch Pedal)[12.2016 -] NGX10..6F |
90949-03068 |
US $9.14 |
||
|
31301C
|
31301C
90386-13015 Bush(For Clutch Pedal)[12.2016 -] NGX10..6F |
90386-13015 |
from US $0.64 |
||
|
31321
|
31321
31321-42010 Pad, Clutch Pedal[12.2016 -] NGX10..6F |
31321-42010 |
US $4.12 |
||
|
31324
|
31324
90105-10524 Shaft, Clutch Pedal[12.2016 -] NGX10..6F |
90105-10524 |
US $2.04 |
||
|
31324A
|
31324A
90387-10003 Collar, Clutch Pedal Shaft[12.2016 -] NGX10..6F |
90387-10003 |
from US $3.94 |
||
|
31353
|
31353
31353-26010 Holder, Clutch Pedal Spring[12.2016 -] NGX10..6F |
31353-26010 |
from US $3.02 |
||
|
31453A
|
31453A
90240-08083
Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)
[12.2016 -] NGX10..6F |
90240-08083 |
— | ||
|
31453B
|
31453B
90386-08033 Bush(For Clutch Master Cylinder Push Rod Clevis)[12.2016 -] NGX10..6F |
90386-08033 |
from US $1.31 |
||
|
55107A
|
55107A
55107-F4020
Support Sub-Assy, Clutch Pedal
[12.2016 -] NGX10..6F |
55107-F4020 |
— | ||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $0.99 |
||
|
9018208010
|
9018208010
90182-08010 New Genuine Part |
90182-08010 |
US $0.61 |
||
|
9038906055
|
9038906055
90389-06055 Bush(For Clutch Pedal Turnover) |
90389-06055 |
from US $1.79 |
||
|
9046816142
|
9046816142
90468-16142 Clip(For Push Rod Clevis Pin) |
90468-16142 |
from US $0.82 |
