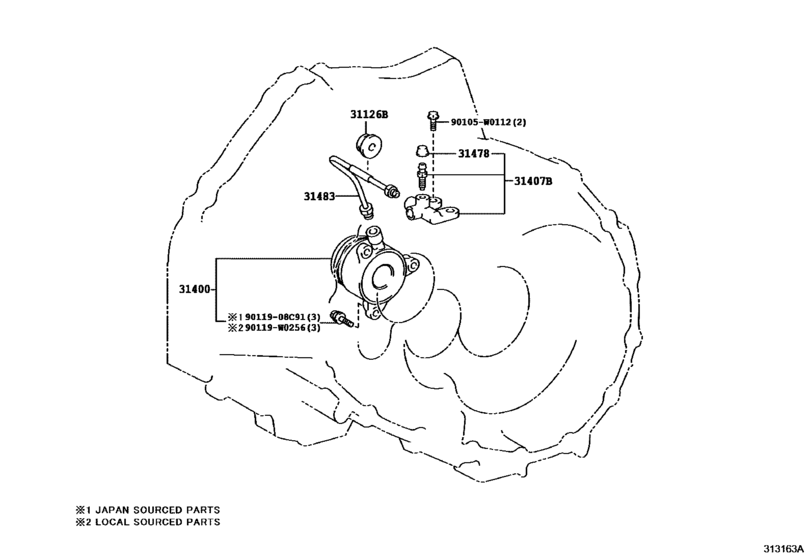

Clutch Release Cylinder ([12.2016 - ] (1612- )6F) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- NGX10
- grade
- LUX
- ENGINE
- 8NRFTS
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 12.2016
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126B
|
31126B
31126-05010
Boot, Clutch Tube
[12.2016 -] NGX10..6F |
31126-05010 |
— | ||
|
31400
|
31400
31400-09001 Cylinder Assy, Clutch Release W/bearing[12.2016 -] NGX10..6F |
31400-09001 |
US $204 |
||
| replacement | |||||
|
31400
|
31400
31400-09002 Cylinder Assy, Clutch Release W/bearing[12.2016 -] NGX10..6F |
31400-09002 |
from US $167.97 |
||
|
31407B
|
31407B
31407-52010 Bleeder Sub-Assy, Clutch ReleaseCLUTCH RELEASE [12.2016 -] NGX10..6F |
31407-52010 |
US $11.29 |
||
|
31478
|
31478
31478-30010 Bleeder Plug Cap[12.2016 -] NGX10..6F |
31478-30010 |
from US $1.50 |
||
|
31483
|
31483
31482-05130
Tube, Bleeder Clutch Release
[12.2016 -] NGX10..6F |
31482-05130 |
— | ||
|
90105W0112
|
90105W0112
90105-W0112
BOLT FLANGE
|
90105-W0112 |
— | ||
|
90119W0256
|
90119W0256
90119-W0256
New Genuine Part
|
90119-W0256 |
— | ||
|
9011908C91
|
9011908C91
90119-08C91 New Genuine Part |
90119-08C91 |
US $1.79 |
||
