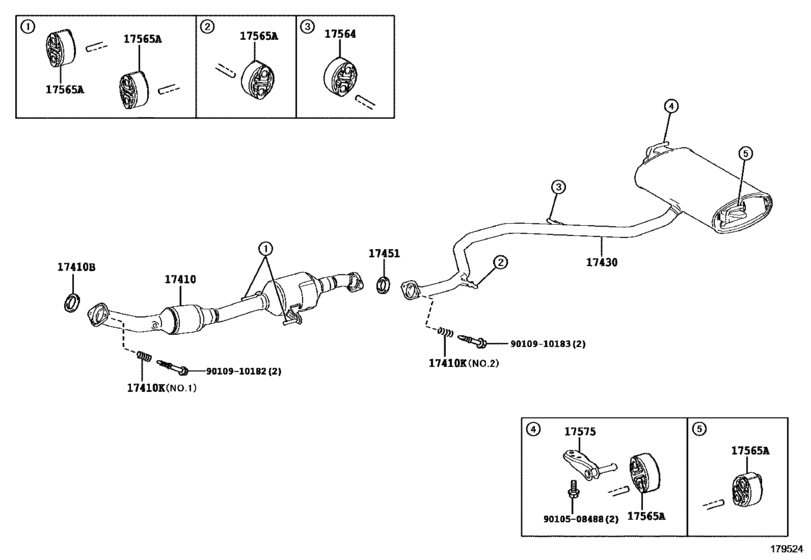

Exhaust Pipe ([12.2016 - ] (1612- )8NRFTS..NGX10) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- NGX10
- grade
- LUX
- ENGINE
- 8NRFTS
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 12.2016
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-47260
Pipe Assy, Exhaust, Front
[12.2016 -] 8NRFTS..NGX10 |
17410-47260 |
— | ||
|
17410B
|
17410B
17451-28040
Gasket, Exhaust Pipe
[12.2016 -] 8NRFTS..NGX10 |
17451-28040 |
— | ||
| replacement | |||||
|
17410B
|
17410B
17451-28041 Gasket, Exhaust Pipe[12.2016 -] 8NRFTS..NGX10 |
17451-28041 |
from US $18.90 |
||
|
17410K
|
17410K
90501-35035 Spring, Exhaust Pipe[12.2016 -] 8NRFTS..NGX10 NO.2 |
90501-35035 |
from US $3.45 |
||
|
17410K
|
17410K
90501-35037 Spring, Exhaust Pipe[12.2016 -] 8NRFTS..NGX10 NO.1 |
90501-35037 |
from US $3.33 |
||
|
17430
|
17430
17430-47250
Pipe Assy, Exhaust, Tail
[12.2016 -] 8NRFTS..NGX10 |
17430-47250 |
— | ||
|
17451
|
17451
17451-23042 Gasket, Exhaust Pipe, Center[12.2016 -] 8NRFTS..NGX10 |
17451-23042 |
US $9.08 |
||
|
17564
|
17564
17565-28010 Support, Exhaust Pipe, No.1[12.2016 -] 8NRFTS..NGX10 |
17565-28010 |
from US $9.46 |
||
|
17565A
|
17565A
17565-22040 Support, Exhaust Pipe, No.1[12.2016 -] 8NRFTS..NGX10 |
17565-22040 |
from US $9.48 |
||
|
17575
|
17575
17575-37030 Bracket, Exhaust Pipe Support, No.5[12.2016 -] 8NRFTS..NGX10,50 |
17575-37030 |
US $10.57 |
||
|
9010508488
|
9010508488
90105-08488 New Genuine Part |
90105-08488 |
US $1.43 |
||
|
9010910182
|
9010910182
90109-10182 BOLT |
90109-10182 |
US $3.40 |
||
|
9010910183
|
9010910183
90109-10183 BOLT |
90109-10183 |
US $3.40 |
||
