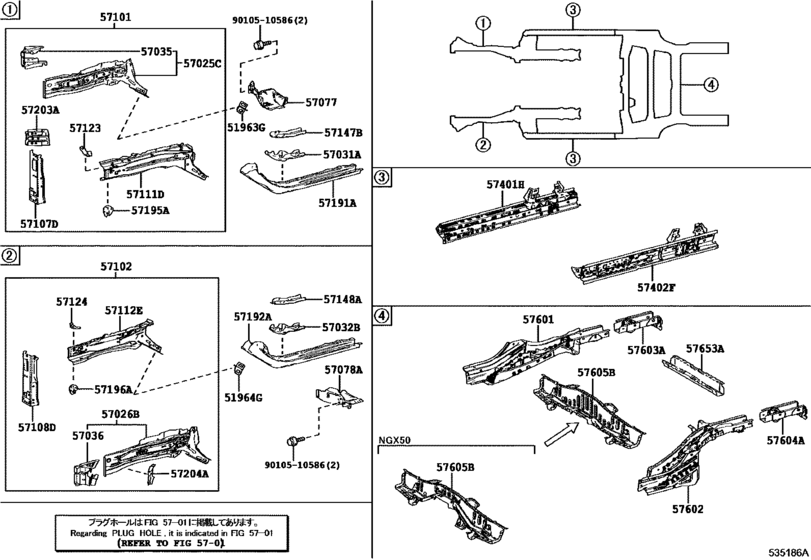

Floor Side Member ([12.2016 - ] (1612- )) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- NGX10
- grade
- LUX
- ENGINE
- 8NRFTS
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 12.2016
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51963G
|
51963G
51093-10020 Hook, Transport, Front Rh[12.2016 -] NGX10,50 |
51093-10020 |
US $13.98 |
||
|
51964G
|
51964G
51094-10010 Hook, Transport, Front Lh[12.2016 -] NGX10,50 |
51094-10010 |
US $13.98 |
||
|
57025C
|
57025C
57025-47020 Member Sub-Assy, Front Side, Outer Rh[12.2016 -] NGX10,50 |
57025-47020 |
US $107.74 |
||
|
57026B
|
57026B
57026-47020 Member Sub-Assy, Front Side, Outer Lh[12.2016 -] NGX10,50 |
57026-47020 |
US $107.74 |
||
|
57031A
|
57031A
57031-47010 Reinforce Sub-Assy, Front Side Member, No.2 Rh[12.2016 -] NGX10,50 |
57031-47010 |
US $51.40 |
||
|
57032B
|
57032B
57032-47010 Reinforcement Sub-Assy, Front Side Member, No.2 Lh[12.2016 -] NGX10,50 |
57032-47010 |
US $51.40 |
||
|
57035
|
57035
57035-47020 Panel Sub-Assy, Front Step, Rh[12.2016 -] NGX10,50 |
57035-47020 |
US $33.20 |
||
|
57036
|
57036
57036-47030 Panel Sub-Assy, Front Step, Lh[12.2016 -] NGX10,50 |
57036-47030 |
US $35.53 |
||
|
57077
|
57077
57077-47040 Box Sub-Assy, Torque, Front Rh[12.2016 -] NGX10,50 |
57077-47040 |
US $55.33 |
||
|
57078A
|
57078A
57078-47040 Box Sub-Assy, Torque, Front Lh[12.2016 -] NGX10,50 |
57078-47040 |
US $55.33 |
||
|
57101
|
57101
57101-10910 Member Sub-Assy, Front Side, Rh[12.2016 -] NGX10,50 |
57101-10910 |
US $417.87 |
||
|
57102
|
57102
57102-10910 Member Sub-Assy, Front Side, Lh[12.2016 -] NGX10,50 |
57102-10910 |
US $400.40 |
||
|
57107D
|
57107D
57107-10020 Reinforce Sub-Assy, Front Bumper Mounting, Rh[12.2016 -] NGX10,50 |
57107-10020 |
from US $63.50 |
||
|
57108D
|
57108D
57108-10020 Reinforce Sub-Assy, Front Bumper Mounting, Lh[12.2016 -] NGX10,50 |
57108-10020 |
US $86.92 |
||
|
57111D
|
57111D
57111-47030 Member, Front Side, Inner Rh[12.2016 -] NGX10,50 |
57111-47030 |
US $125.22 |
||
|
57112E
|
57112E
57112-47030 Member, Front Side, Inner Lh[12.2016 -] NGX10,50 |
57112-47030 |
from US $125.22 |
||
|
57123
|
57123
57123-47020 Support, Front Side Member, Rh[12.2016 -] NGX10,50 |
57123-47020 |
from US $14.64 |
||
|
57124
|
57124
57124-47020 Support, Front Side Member, Lh[12.2016 -] NGX10,50 |
57124-47020 |
from US $14.64 |
||
|
57147B
|
57147B
57147-47010 Plate, Front Side Member, Rear Rh[12.2016 -] NGX10,50 |
57147-47010 |
US $35.53 |
||
|
57148A
|
57148A
57148-47010 Plate, Front Side Member, Rear Lh[12.2016 -] NGX10,50 |
57148-47010 |
US $35.53 |
||
|
57191A
|
57191A
57191-47030 Member, Front Side, Inner Rear Rh[12.2016 -] NGX10,50 |
57191-47030 |
US $128.13 |
||
|
57192A
|
57192A
57192-47030 Member, Front Side, Inner Rear Lh[12.2016 -] NGX10,50 |
57192-47030 |
US $128.13 |
||
|
57195A
|
57195A
57195-47010 Reinforcement, Front Side Member, Front Rh[12.2016 -] NGX10,50 |
57195-47010 |
US $17.30 |
||
|
57196A
|
57196A
57196-47030 Reinforcement, Front Side Member, Front Lh[12.2016 -] NGX10,50 |
57196-47030 |
US $17.30 |
||
|
57203A
|
57203A
57203-47010 Extension Sub-Assy, Front Side Member, Rh[12.2016 -] NGX10,50 |
57203-47010 |
US $33.20 |
||
|
57204A
|
57204A
57204-47010 Extension Sub-Assy, Front Side Member, Lh[12.2016 -] NGX10,50 |
57204-47010 |
US $33.20 |
||
|
57401H
|
57401H
57401-10210 Member Sub-Assy, Floor Side, Inner Rh[12.2016 -] NGX10,50 |
57401-10210 |
US $225.68 |
||
|
57402F
|
57402F
57402-10210 Member Sub-Assy, Floor Side, Inner Lh[12.2016 -] NGX10,50 |
57402-10210 |
US $225.68 |
||
|
57601
|
57601
57601-47080 Member Sub-Assy, Rear Floor Side, Rh[12.2016 -] NGX10,50 |
57601-47080 |
US $378.56 |
||
|
57602
|
57602
57602-47100 Member Sub-Assy, Rear Floor Side, Lh[12.2016 -] NGX10,50 |
57602-47100 |
US $378.56 |
||
|
57603A
|
57603A
57603-10020 Member Sub-Assy, Rear Floor Side, Rear Rh[12.2016 -] NGX10,50 |
57603-10020 |
from US $112.11 |
||
|
57604A
|
57604A
57604-10020 Member Sub-Assy, Rear Floor Side, Rear Lh[12.2016 -] NGX10,50 |
57604-10020 |
from US $106.06 |
||
|
57605B
|
57605B
57605-10070
Member Sub-Assy, Rear Floor Cross, No.1
[12.2016 -] NGX10 |
57605-10070 |
— | ||
|
57653A
|
57653A
57653-47040 Member, Rear Floor Cross, No.2[12.2016 -] NGX10,50 |
57653-47040 |
US $88.82 |
||
|
9010510586
|
9010510586
90105-10586 New Genuine Part |
90105-10586 |
US $1.79 |
