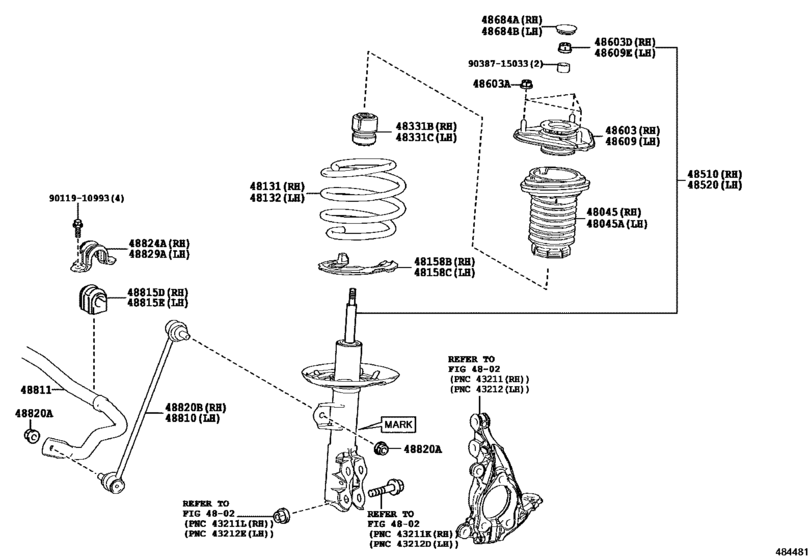

Front Spring & Shock Absorber ([12.2016 - ] (1612- )) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- NGX10
- grade
- LUX
- ENGINE
- 8NRFTS
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 12.2016
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48045
|
48045
48045-10050 Seat Sub-Assy, Front Spring Rh, W/insulator[12.2016 -] NGX10,50 |
48045-10050 |
US $50.80 |
||
|
48045A
|
48045A
48045-10050 Seat Sub-Assy, Front Spring Rh, W/insulator[12.2016 -] NGX10,50 |
48045-10050 |
US $50.80 |
||
|
48131
|
48131
48131-10A00 Spring, Front Coil, Rh[12.2016 -] NGX10 |
48131-10A00 |
US $61.73 |
||
|
48132
|
48132
48131-10A00 Spring, Front Coil, Rh[12.2016 -] NGX10 |
48131-10A00 |
US $61.73 |
||
|
48158B
|
48158B
48158-47020 Insulator, Front Coil Spring, Lower Rh[12.2016 -] NGX10,50 |
48158-47020 |
from US $10.88 |
||
|
48158C
|
48158C
48158-47020 Insulator, Front Coil Spring, Lower Rh[12.2016 -] NGX10,50 |
48158-47020 |
from US $10.88 |
||
|
48331B
|
48331B
48331-10110 Bumper, Front Spring, Rh[12.2016 -] NGX10,50 |
48331-10110 |
US $8.96 |
||
|
48331C
|
48331C
48331-10110 Bumper, Front Spring, Rh[12.2016 -] NGX10,50 |
48331-10110 |
US $8.96 |
||
|
48510
|
48510
48510-F9010
Absorber Assy, Shock, Front Rh
[12.2016 -] NGX10 MARK 48510-F4010 |
48510-F9010 |
— | ||
|
48520
|
48520
48520-F9010
Absorber Assy, Shock, Front Lh
[12.2016 -] NGX10 MARK 48520-F4010 |
48520-F9010 |
— | ||
|
48603
|
48603
48609-47060 Support Sub-Assy, Front Suspension[12.2016 -] NGX10,50 |
48609-47060 |
from US $70.90 |
||
|
48603A
|
48603A
90178-10029 Nut(For Front Suspension Support)[12.2016 -] NGX10,50 |
90178-10029 |
from US $0.90 |
||
|
48603D
|
48603D
90177-14007 Nut (For Front Support To Front Shock Absorber)[12.2016 -] NGX10,50 |
90177-14007 |
from US $1.03 |
||
|
48609
|
48609
48609-47060 Support Sub-Assy, Front Suspension[12.2016 -] NGX10,50 |
48609-47060 |
from US $70.90 |
||
|
48609E
|
48609E
90177-14007 Nut (For Front Support To Front Shock Absorber)[12.2016 -] NGX10,50 |
90177-14007 |
from US $1.03 |
||
|
48684A
|
48684A
48684-52010 Cover, Front Suspension Support Dust[12.2016 -] NGX10,50 |
48684-52010 |
from US $9.44 |
||
|
48684B
|
48684B
48684-52010 Cover, Front Suspension Support Dust[12.2016 -] NGX10,50 |
48684-52010 |
from US $9.44 |
||
|
48810
|
48810
48820-47040 Link Assy, Front Stabilizer[12.2016 -] NGX10,50 |
48820-47040 |
from US $55.78 |
||
|
48811
|
48811
48811-10370 Bar, Stabilizer, Front[12.2016 -] NGX10,50 |
48811-10370 |
US $132.84 |
||
|
48815D
|
48815D
48815-10120
Bush, Front Stabilizer Bar
[12.2016 - 06.2017] NGX10,50 |
48815-10120 |
— | ||
| replacement | |||||
|
48815D
|
48815D
48815-10121 Bush, Front Stabilizer Bar[12.2016 - 06.2017] NGX10,50 |
48815-10121 |
US $21 |
||
|
48815E
|
48815E
48815-10120
Bush, Front Stabilizer Bar
[12.2016 - 06.2017] NGX10,50 |
48815-10120 |
— | ||
| replacement | |||||
|
48815E
|
48815E
48815-10121 Bush, Front Stabilizer Bar[12.2016 - 06.2017] NGX10,50 |
48815-10121 |
US $21 |
||
|
48820A
|
48820A
94151-21241 Nut(For Front Stabilizer Link)[12.2016 -] NGX10,50 |
94151-21241 |
from US $0.94 |
||
|
48820B
|
48820B
48820-47040 Link Assy, Front Stabilizer[12.2016 -] NGX10,50 |
48820-47040 |
from US $55.78 |
||
|
48824A
|
48824A
48824-47020 Bracket, Front Stabilizer, No.1[12.2016 -] NGX10,50 |
48824-47020 |
US $18.82 |
||
|
48829A
|
48829A
48824-47020 Bracket, Front Stabilizer, No.1[12.2016 -] NGX10,50 |
48824-47020 |
US $18.82 |
||
|
9011910993
|
9011910993
90119-10993 9011910993 |
90119-10993 |
US $2.15 |
||
|
9038715033
|
9038715033
90387-15033 COLLAR |
90387-15033 |
from US $3.28 |
||
